Extreme networks 5420M-24W-4YE netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

Extreme networks 5420M-24W-4YE, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage

Nog 12 beschikbaar

Fabrikant Extreme Networks
MPN 5420M-24W-4YE
EAN 0644728051892
€ 7.133,00 excl. BTW

Extreme networks 5420M-24W-4YE netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

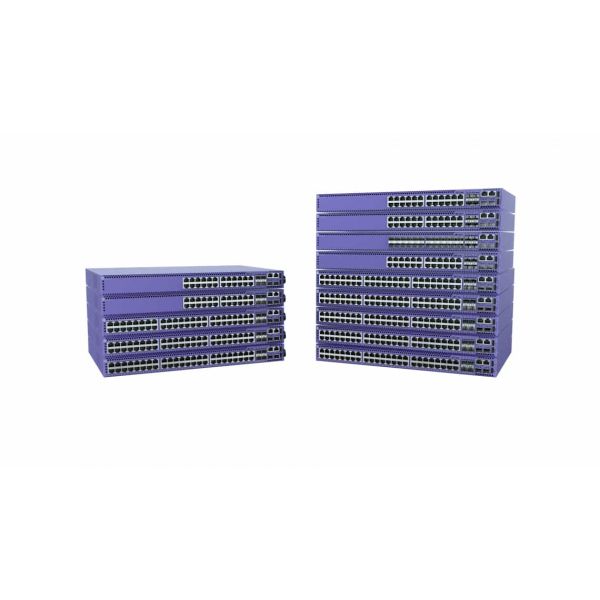

5420 Series
Universal Edge Switch Platform
The 5420 Series is a family of high-performance, feature-rich, stackable edge switches designed for the next-generation digital enterprise. Available in 24 and 48-port models, the 5420 features both gigabit and multi-gigabit (1/2.5G) versions with up to 90W PoE enabling it to be deployed across a range of edge and wiring-closet environments. As a universal hardware platform, the 5420 also offers a user-selectable choice of Extreme’s flagship switch operating systems for a uniquely flexible platform.
The 5420 Series consists of 5420M and 5420F families to address a variety of end-user needs and price points. 5420M models offer fieldreplaceable power supplies and fans as well as four 1/10/25Gb builtin uplink ports, while 5420F models offer fixed power supply (with support for a second field-replaceable power supply), fixed fans, and four 1/10Gb built-in uplink ports. All models provide 30/60/90W PoE capabilities making them an ideal wired back end for wireless APs or in support of NextGen powered Ethernet devices, such as digital signage, pan-tilt-zoom cameras, smart lighting, or point-of-sale terminals.
  • Intuitive and centralized cloud-managed switching with ExtremeCloudTM IQ and
  • Extreme Cloud – Site Engine
  • Fabric-enabled operations with Extreme
  • Fabric Connect for simplified and secure network provisioning and automation
  • Choice of operating system (OS) with universal dual-persona hardware
  • Fixed 24 and 48-port models with gigabit and multi-gigabit support 30W, 60W, and 90W PoE (Power over Ethernet) support for powering connected devices
  • 4 x 1/10Gb SFP+ or 4 x 1/10/25Gb builtin uplink ports
  • 80Gb per unit stacking of up to eight switches
  • Secure link encryption with MACsec across both access and uplink ports
  • Non-blocking wire speed design

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Quality of Service (QoS)
Ja
Cloud-beheerd
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2
Vezel-optische connector
SFP28
Console port
RJ-45
Aantal SFP28-poorten
4
Aantal USB 2.0-poorten
2

Netwerk

Netwerkstandaard*
IEEE 802.3bt
10G support*
Ja
Full duplex
Ja
Half-duplex
Ja

Data-uitwisseling

Switchingcapaciteit*
328 Gbit/s
Verzending snelheid
244 Mpps

Beveiliging

Ondersteunde beveiligingsalgoritmen
128-bit AES, 256-bit AES

Design

Rack-montage*
Ja
Stapelbaar*
Ja
LED-indicatoren
Ja

Prestatie

Geluidsniveau
33 dB

Energie

Stroombron*
Power over Ethernet (PoE)
Stroomverbruik (typisch)
43 W
Vermogensverbruik (max)
1601 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Vermogen per poort Power over Ethernet (PoE)
90 W
Totaal Power over Ethernet (PoE)-budget
1440 W

Gewicht en omvang

Breedte
442 mm
Diepte
330,2 mm
Hoogte
43,2 mm
Gewicht
4,4 kg
