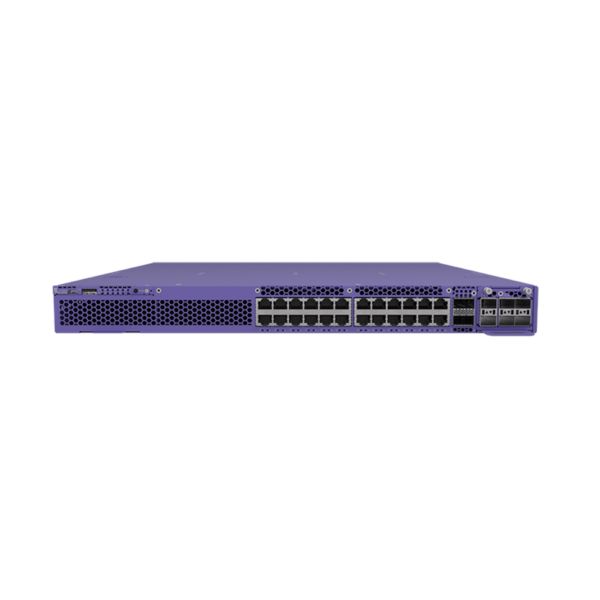

Extreme networks 5720-24MW netwerk-switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Paars

Extreme networks 5720-24MW, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage

Niet op voorraad

Fabrikant Extreme Networks
MPN 5720-24MW
EAN 0644728054497
€ 11.911,00 excl. BTW

Extreme networks 5720-24MW netwerk-switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Paars

The 5720 Series is a family of high-performance, feature-rich edge and aggregation switches designed for the next-generation digital enterprise. Available in 24 and 48-port gigabit and multi-gigabit models, the 5720 is a universal hardware platform, providing end-to-end secure network segmentation and advanced policy capabilities. Compatible with your choice of Extreme’s flagship switch OS, the 5720 is a uniquely flexible, stackable platform that can be deployed across a range of edge, aggregation, and wiring-closet environments.

All models offer 90W PoE in support of NextGen powered Ethernet devices, such as digital signage, pan-tilt-zoom cameras, smart lighting, or point-of-sale terminals.
  • Intuitive and centralized cloud-managed switching with ExtremeCloud IQ and ExtremeCloud IQ – Site Engine
  • Choice of operating system (OS) with universal dual-persona hardware
  • Fabric-enabled operations with Extreme Fabric Connect for simplified and secure network provisioning and automation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3
Web-gebaseerd management
Ja
Cloud-beheerd
Ja
Locatie-instellingen (CLI) configureren
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Console port
RJ-45/Micro-USB
Aantal QSFP28-poorten
2
Aantal USB 2.0-poorten
1

Netwerk

Netwerkstandaard*
IEEE 802.3bt
Full duplex
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s

Data-uitwisseling

Switchingcapaciteit*
1040 Gbit/s
Verzending snelheid
190,5 Mpps
Aantal wachtrijen
8

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Kleur van het product
Paars

Energie

Stroombron*
AC/PoE
Vermogenstoevoer inclusief*
Ja
Aantal voedingen
2

Energie

AC-ingangsspanning
110 - 240 V
AC-ingangsfrequentie
50/60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
24
Vermogen per poort Power over Ethernet (PoE)
90 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Luchtvochtigheid bij opslag
10 - 95 procent
Hoogte, in bedrijf
0 - 3000 m

Gewicht en omvang

Breedte
445,3 mm
Diepte
527,6 mm
Hoogte
43,5 mm
Gewicht
8,05 kg

Verpakking

Breedte verpakking
595,4 mm
Diepte verpakking
892 mm
Hoogte verpakking
190 mm
Gewicht verpakking
14,6 kg

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
REACH, RoHS, WEEE
