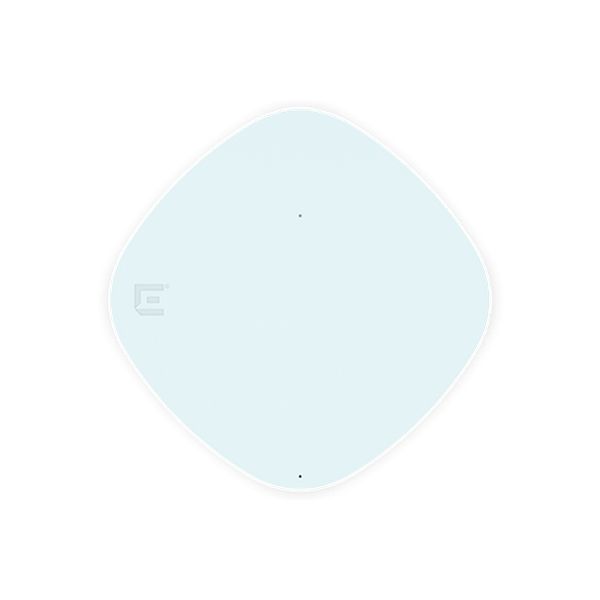

Extreme networks AP5010 10000 Mbit/s Wit Power over Ethernet (PoE)

Extreme networks AP5010, 10000 Mbit/s, 572 Mbit/s, 4800 Mbit/s, 100,1000,2500,5000 Mbit/s, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.15.4, IEEE..., 87 kanalen

Ruim op voorraad

Fabrikant Extreme Networks
MPN AP5010-WW
EAN 0644728054992
€ 1.401,00 excl. BTW

Extreme networks AP5010 10000 Mbit/s Wit Power over Ethernet (PoE)

WI-FI 6E TECHNOLOGY
Wi-Fi 6E leverages 802.11ax/Wi-Fi 6 capabilities such as high-density, high-capacity, and high-efficiency performance, and extends these capabilities to the 6 GHz band. The vast expansion of frequency enables new use cases and offers improved user experiences, particularly in mission-critical and dense environments.

UNIVERSAL HARDWARE
AP5010 is a universal hardware platform, which simplifies your deployment experience through powerful cloud management and simplified licensing. The AP5010 can run multiple Extreme operating systems, providing flexibility and choice while minimizing total cost of ownership.

SUPERIOR TRI-FREQUENCY RADIO PERFORMANCE
AP5010 is a Wi-Fi 6E tri-radio AP capable of multiple operating modes, optimizing for maximum performance without trading off security. The AP5010 can transmit with three data radios or with two data radios and dedicated tri-frequency sensor.
  • Multi-band filter enables superior radio performance across 5 GHz and 6 GHz spectrum
  • Latest in Secure Wi-Fi with Extreme AirDefense, and support for WPA3 and Wi-Fi Enhanced Open
  • Gateway designed to protect high risk, wired IoT devices using ExtremeIoT Essentials
  • Optimal user experiences powered by AI/ML with SmartRF and ExtremeCloudIQ CoPilot
  • Integrated multi-purpose IoT radio for a variety of IoT applications
  • Fully functional Wi-Fi over 802.3at

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

2,4 GHz*
Ja
5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Maximale overdrachtssnelheid van gegevens (2.4 GHz)
572 Mbit/s
Maximale overdrachtssnelheid van gegevens (5 GHz)
4800 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
100,1000,2500,5000 Mbit/s
Netwerkstandaard
IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.15.4, IEEE 802.3at, IEEE 802.11g, IEEE 802.3az
Aantal kanalen
87 kanalen
Bluetooth
Ja
Bluetooth-versie
5.2
MIMO
Ja
MIMO-type
Multi User MIMO
Modulatie
OFDM, 256-QAM, DSSS, 1024-QAM

Beveiliging

Ondersteunde beveiligingsalgoritmen*
WPA3
Aantal SSID-ondersteuningen
24

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
2
Aantal USB 2.0-poorten*
1

Energie

Power over Ethernet (PoE)*
Ja
Stroomverbruik (typisch)
21 W
Vermogensverbruik (max)
25,5 W

Design

Plaatsing*
Plafond, Muur
Kleur van het product*
Wit
Bevestigingsmogelijkheid voor kabelslot
Ja
Kabelslot sleuf type
Kensington
Reset button
Ja
LED-indicatoren
Ja

Antenne

Soort antenne*
Intern
Antennas quantity
12

Gewicht en omvang

Breedte
243 mm
Diepte
243 mm
Hoogte
38 mm
Gewicht
1,31 kg

Inhoud van de verpakking

Montage gereedschap
Ja
Snelstartgids
Ja

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
0 - 50 procent
Bedrijfstemperatuur (T-T)
-40 - 70 °C
Temperatuur bij opslag
0 - 95 °C
