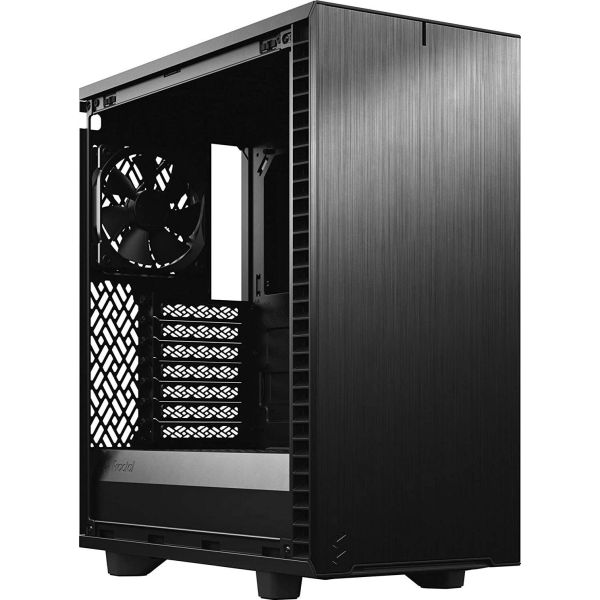

Fractal Design Define 7 Compact Midi Tower Zwart

Fractal Design Define 7 Compact, Midi Tower, PC, Zwart, ATX, micro ATX, Micro-ITX, Aluminium, Staal, Gehard glas, Thuis/Werk

Nog slechts 7 beschikbaar

Fabrikant Fractal Design
MPN FD-C-DEF7C-03
EAN 7340172702184
€ 242,00 excl. BTW

Fractal Design Define 7 Compact Midi Tower Zwart

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.

A cleaner look

Brushed aluminum front and interchangeable side panels give a very clean look

Compact yet spacious

The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.

Remarkably quiet

- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Top panel effortlessly swaps from solid steel to filtered ventilation

Substantial cooling

- Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

Robust Front I/O

Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.

Concealed storage

You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate.

More in store

A pair of SSDs are easily mounted straight on the PSU shroud.

Front, top and base

Easy-to-clean high airflow nylon filters.

Open access

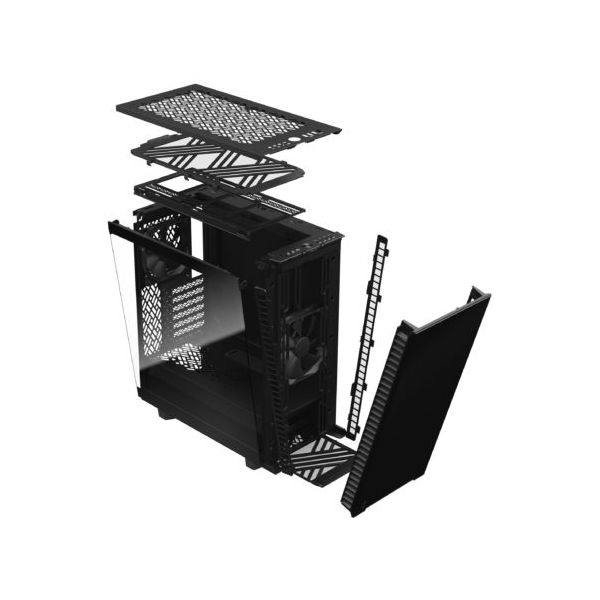

Remove the entire top to build and route with zero hindrance
  • Zijraam
  • Anti-stof filter
  • Reset button
  • Aan-/uitknop
  • LED-indicatoren

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Materiaal
Aluminium, Staal, Gehard glas
Vormfactor*
Midi Tower
Soort*
PC
Kleur van het product*
Zwart
Supported motherboard form factors*
ATX, micro ATX, Micro-ITX
Aantal 3.5" bays*
2
Aantal 2.5" bays
2
Aantal uitbreidingssleuven
7
Rack-montage
Nee
Zijraam
Ja
Geschikt voor
Thuis/Werk
Anti-stof filter
Ja
Reset button
Ja
Aan-/uitknop
Ja
LED-indicatoren
Ja
Maximum CPU cooler hoogte
16,9 cm
Maximum grafische kaart lengte
34,1 cm
Maximum PSU lengte
20 cm

Power voorraad

Vermogenstoevoer inclusief*
Nee
Aantal voedingen
1
Ondersteunde vormfactoren stroomvoorziening
ATX

Poorten & interfaces

Audio-ingangen
Ja
Audio-uitgang
Ja
Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1

Koeling

Aantal geïntstalleerde ventilators voorkant
1x 140 mm
Maximale aantal ventilators voorkant
3
Voorste ventilators ondersteunende diameters
120,140 mm
Geïnstalleerde ventilators achterkant
1x 120 mm
Maximaal aantal ventilators achterkant
1
Achterkant ventilators ondersteunende diameters
120 mm
Maximaal aantal ventilators bovenkant
2
Bovenste ventilators ondersteunende diameters
120,140 mm
Ondersteunde afmetingen voorste radiator
280,360 mm
Ondersteunde afmetingen achterste radiator
120 mm
Ondersteunde afmetingen bovenste radiator
240 mm

Opslagmedia

Ondersteunde HDD-groottes*
2.5,3.5"

Gewicht en omvang

Breedte
210 mm
Diepte
427 mm
Hoogte
474 mm
Gewicht
8,76 kg

Verpakking

Breedte verpakking
310 mm
Diepte verpakking
536 mm
Hoogte verpakking
521 mm
Gewicht verpakking
11 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080
