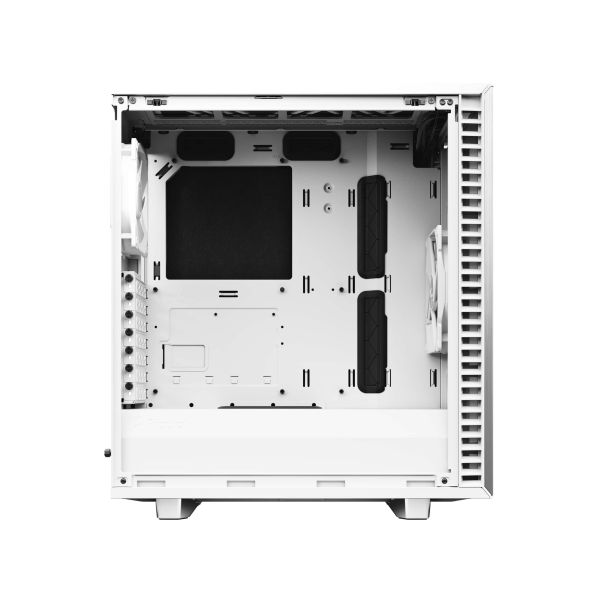

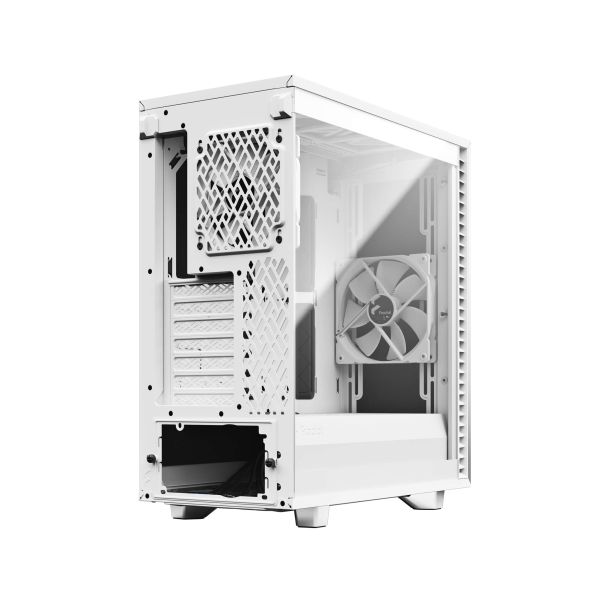

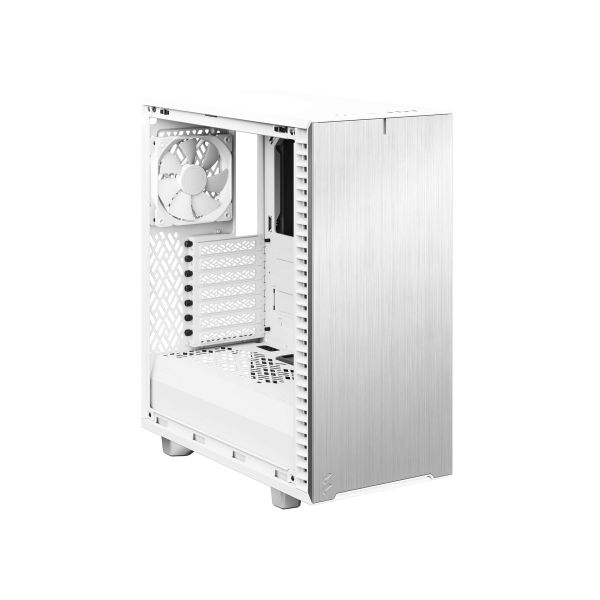

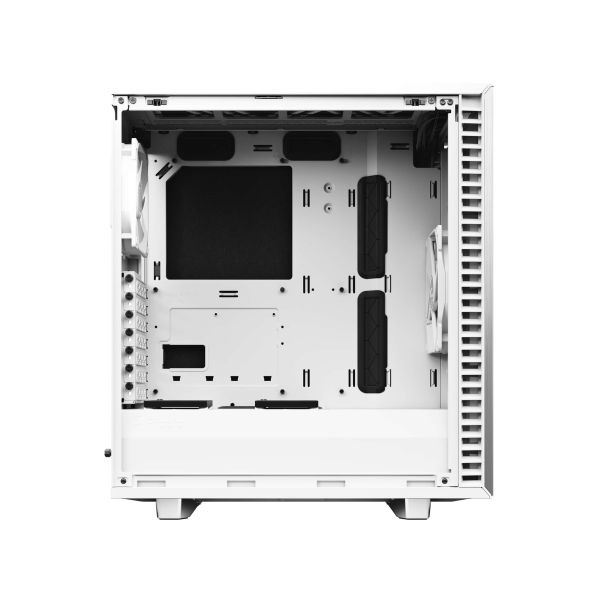

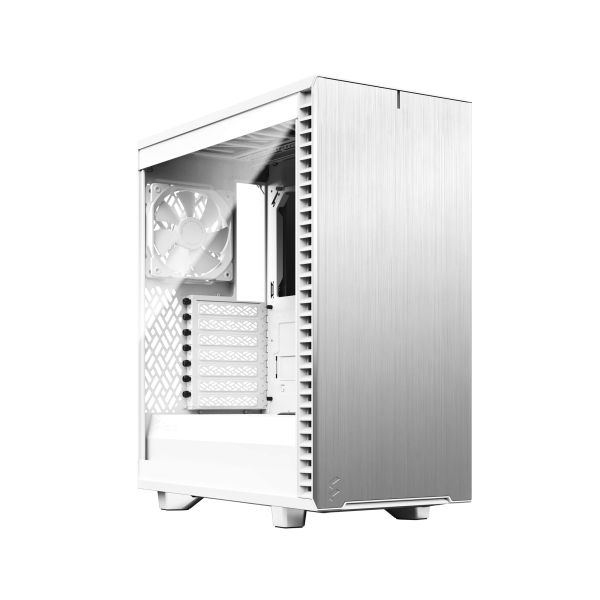

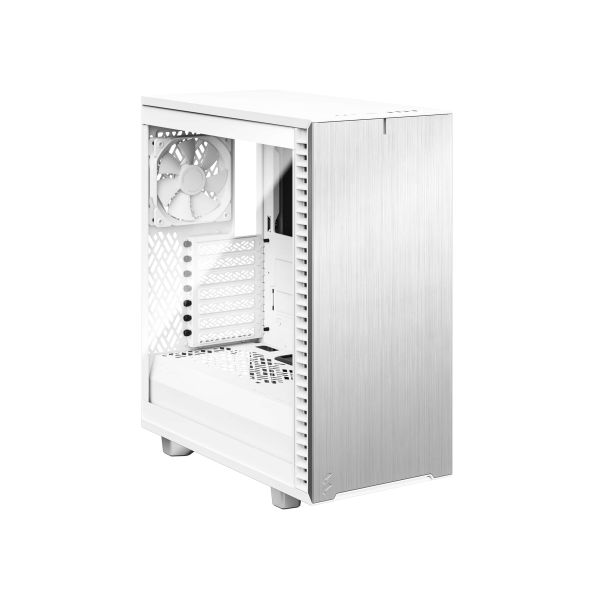

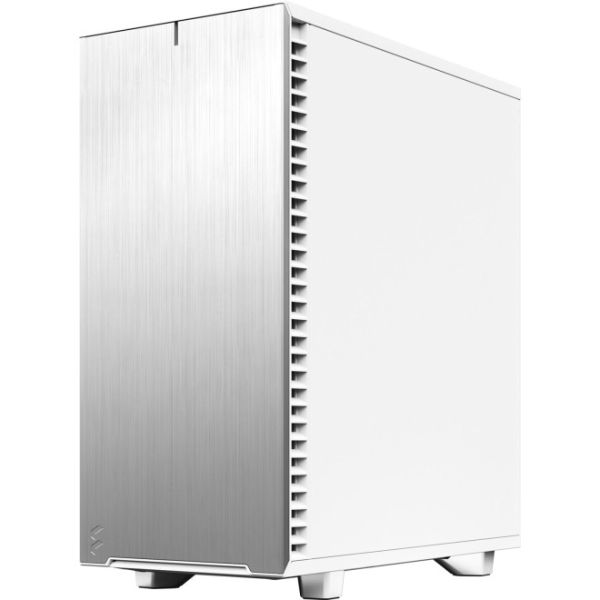

Fractal Design Define 7 Compact Wit

Fractal Design Define 7 Compact, PC, Wit, ATX, micro ATX, Mini-ITX, Staal, Gehard glas, 16,9 cm, 36 cm

Nog slechts 8 beschikbaar

Fabrikant Fractal Design
MPN FD-C-DEF7C-04
EAN 7340172702719
€ 338,00 excl. BTW

Fractal Design Define 7 Compact Wit

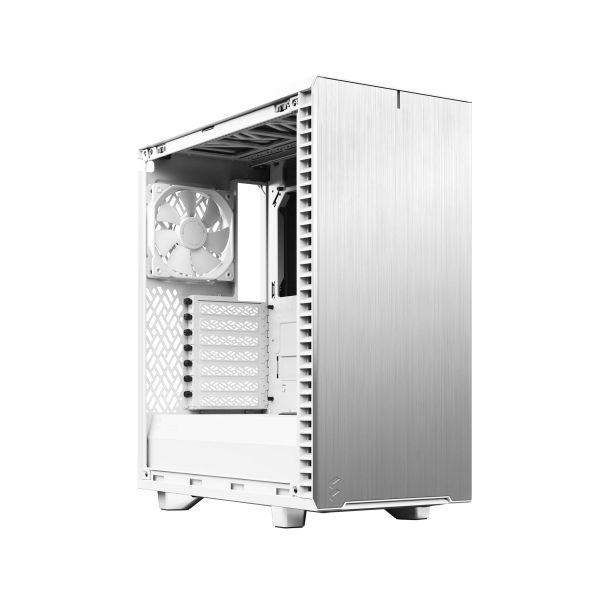

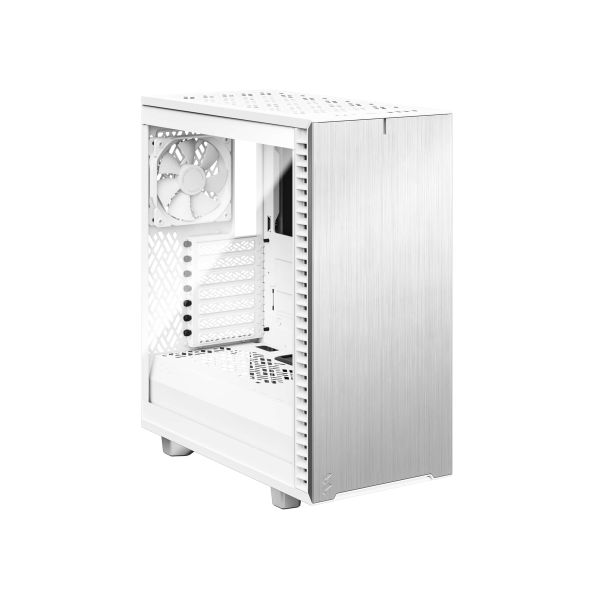

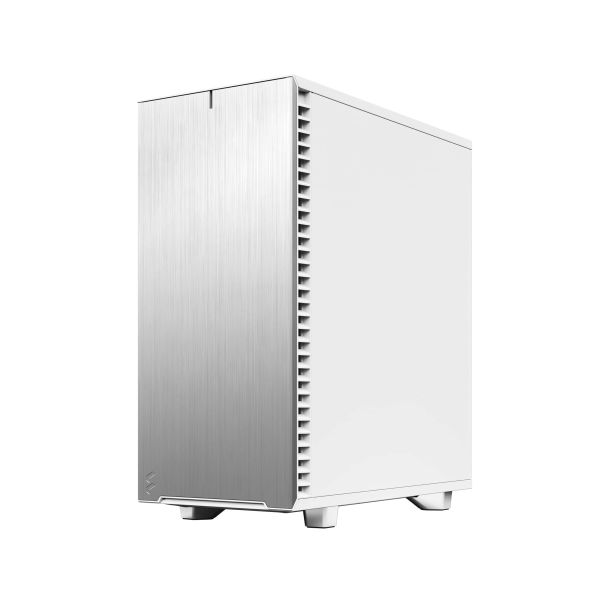

A cleaner look

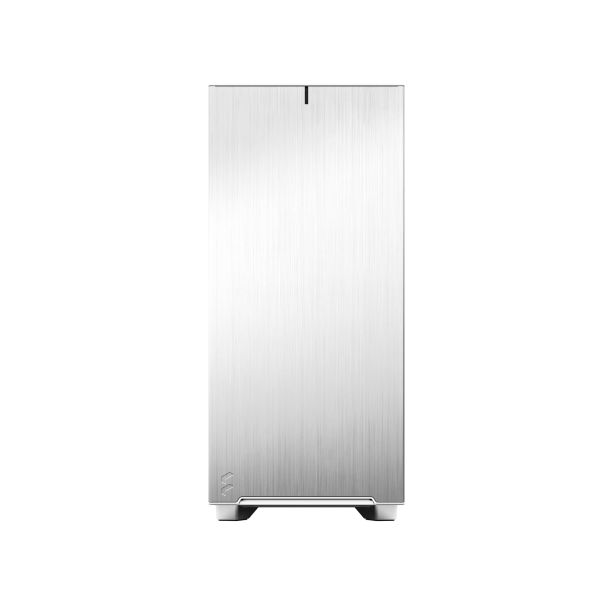

Brushed aluminum front and interchangeable side panels give a very clean look

Compact yet spacious
The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.

Remarkably quiet
- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look
- Top panel effortlessly swaps from solid steel to filtered ventilation

Substantial cooling
- Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

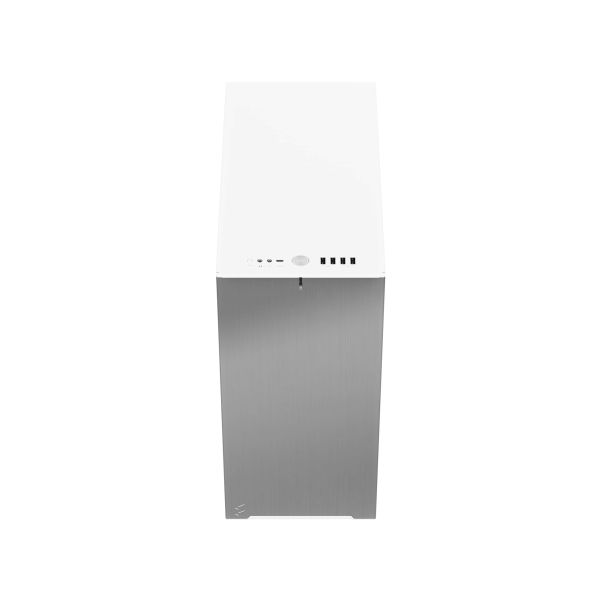

Robust Front I/O
Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps

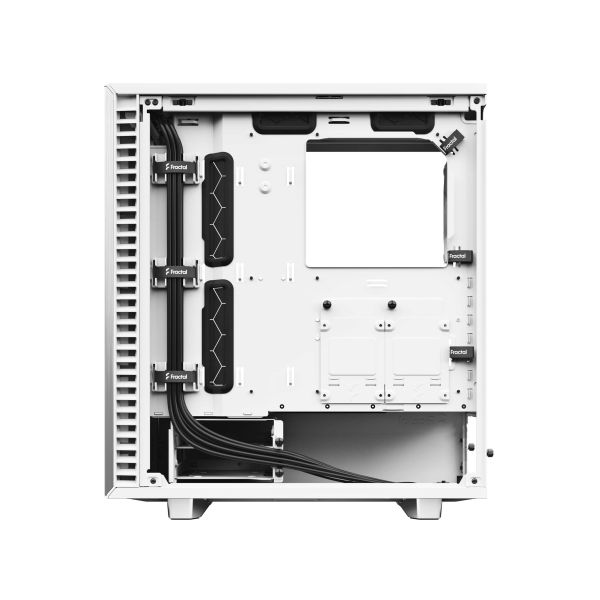

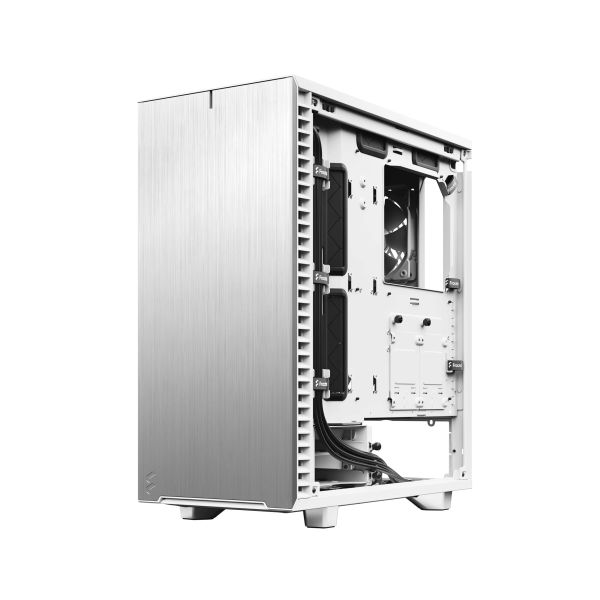

Concealed storage

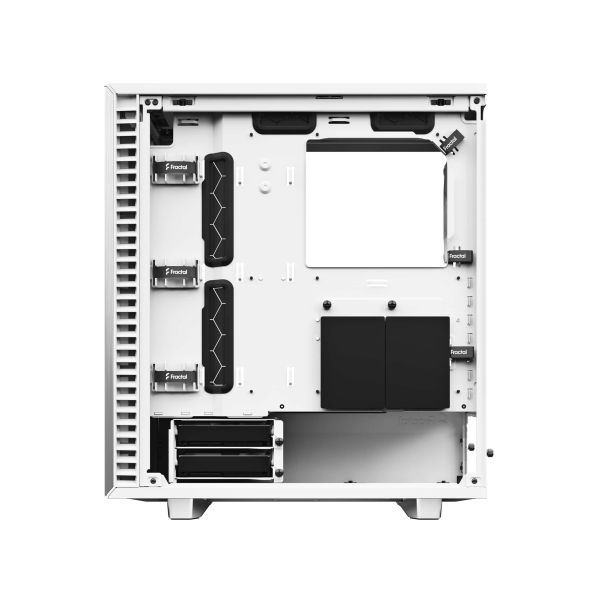

You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate

More in store
A pair of SSDs are easily mounted straight on the PSU shroud

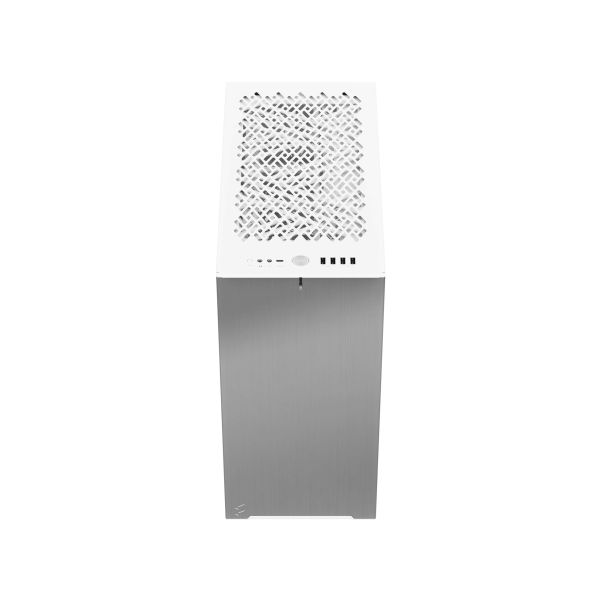

Front, top and base
Easy-to-clean high airflow nylon filters

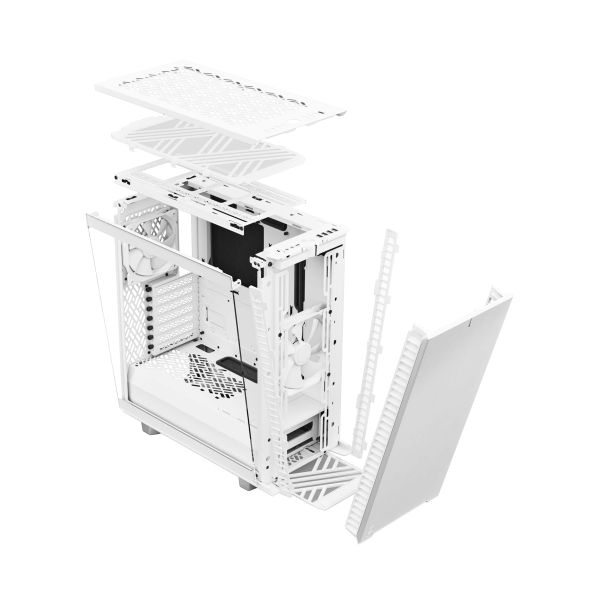

Open access
Remove the entire top to build and route with zero hindrance
  • Compact yet spacious interior fits ATX, mATX or Mini-ITX motherboards
  • Fits GPUs up to 360 mm with a 240 mm radiator in the top
  • Top panel effortlessly swaps from solid steel to filtered ventilation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Materiaal
Staal, Gehard glas
Soort*
PC
Kleur van het product*
Wit
Supported motherboard form factors*
ATX, micro ATX, Mini-ITX
Aantal 3.5" bays*
2
Aantal 2.5" bays
4
Aantal uitbreidingssleuven
7
Zijraam
Ja
Geharde glaspla(a)t(en)
Ja
Anti-stof filter
Ja
Verbeterd kabelbeheer
Ja
Reset button
Ja
Aan-/uitknop
Ja
Maximum CPU cooler hoogte
16,9 cm
Maximum grafische kaart lengte
36 cm
Maximum PSU lengte
20 cm

Power voorraad

Vermogenstoevoer inclusief*
Nee
Ondersteunde vormfactoren stroomvoorziening
ATX

Poorten & interfaces

Audio-ingangen
Ja
Audio-uitgang
Ja
Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1

Koeling

Aantal geïntstalleerde ventilators voorkant
1x 140 mm
Maximale aantal ventilators voorkant
3
Voorste ventilators ondersteunende diameters
120,140 mm

Koeling

Geïnstalleerde ventilators achterkant
1x 120 mm
Maximaal aantal ventilators achterkant
1
Achterkant ventilators ondersteunende diameters
120 mm
Maximaal aantal ventilators bovenkant
2
Bovenste ventilators ondersteunende diameters
120,140 mm
Maximaal aantal ventilators onderkant
1
Ondersterste ventilators ondersteunende diameters
120 mm
Ondersteunde afmetingen voorste radiator
60,120,140,200,240,280,360 mm
Ondersteunde afmetingen achterste radiator
120 mm
Ondersteunde afmetingen bovenste radiator
120,140,180,240 mm
Ondersteunde groottes radiatorventilator (onderkant)
120 mm

Opslagmedia

Ondersteunde HDD-groottes*
2.5,3.5"
SSD-vormfactor
2.5"

Inhoud van de verpakking

Gebruikershandleiding
Ja

Gewicht en omvang

Breedte
210 mm
Diepte
427 mm
Hoogte
474 mm
Gewicht
8,76 kg

Verpakking

Breedte verpakking
310 mm
Diepte verpakking
536 mm
Hoogte verpakking
521 mm
Gewicht verpakking
11 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080
