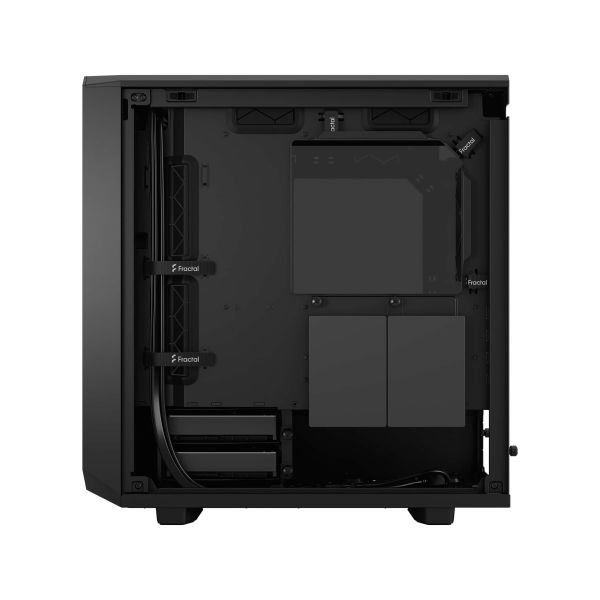

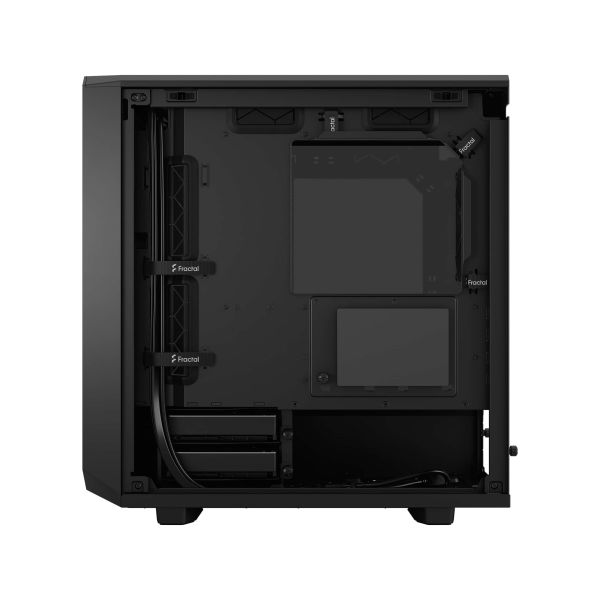

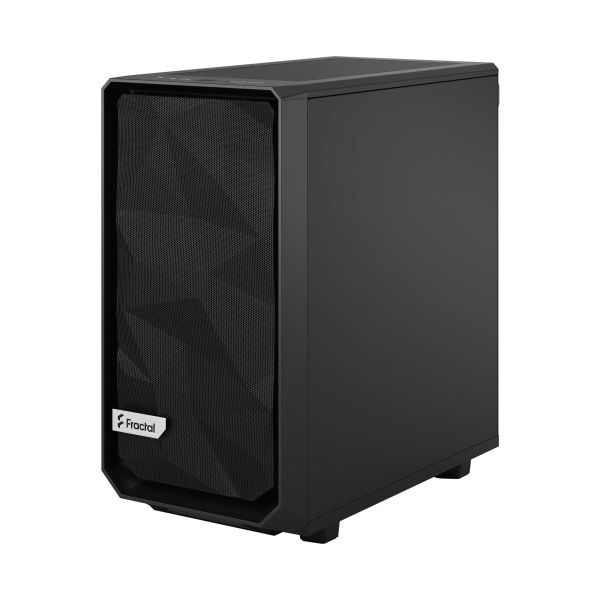

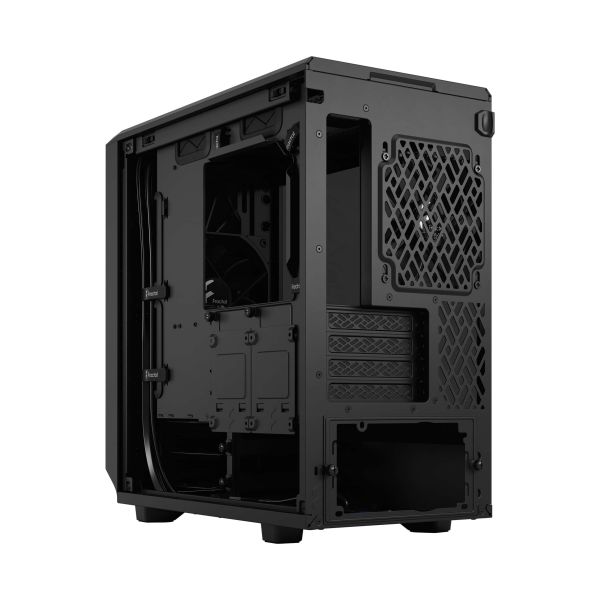

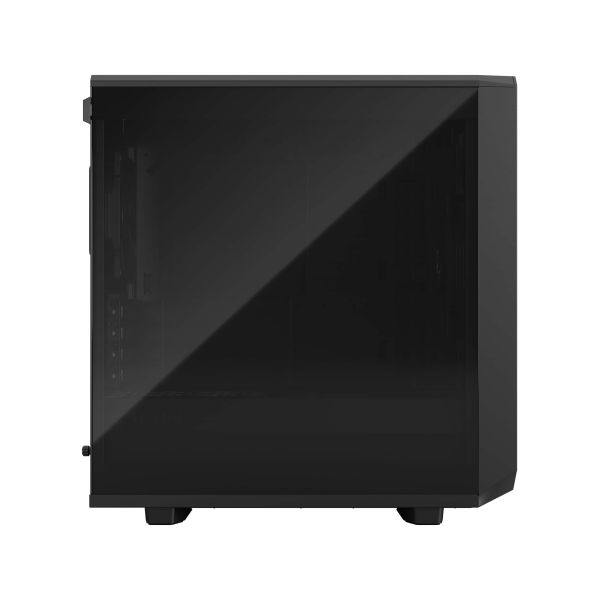

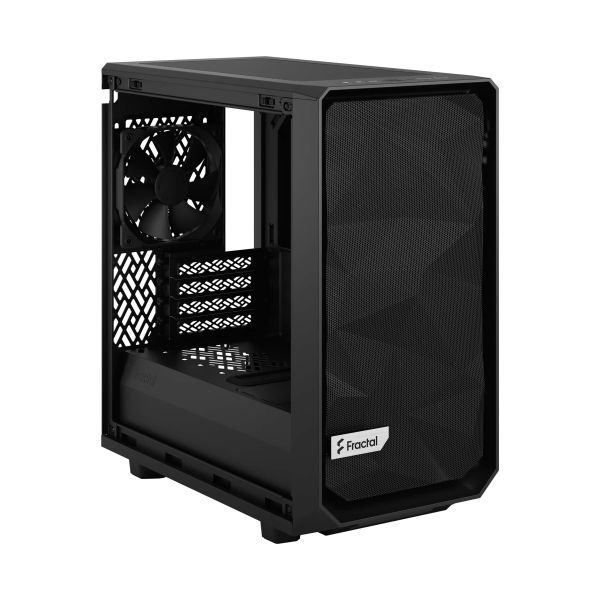

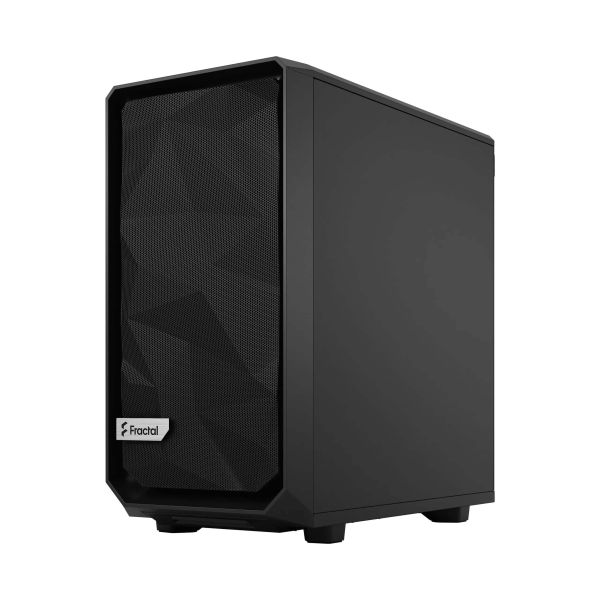

Fractal Design Meshify 2 Mini Zwart

Fractal Design Meshify 2 Mini, PC, Zwart, DTX, micro ATX, Mini-DTX, Mini-ITX, Staal, Gehard glas, 16,7 cm, 33,1 cm

Nog 20 beschikbaar

Fabrikant Fractal Design
MPN FD-C-MES2M-01
EAN 7340172702641
€ 152,00 excl. BTW

Fractal Design Meshify 2 Mini Zwart

Slick and streamlined
- Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support
- Room for GPUs up to 306 mm long including front fans with 331 mm total space
- Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support

Detachable front filter
- Front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts
- Double layered front filter with detachable nylon for increased airflow

Refined airflow
- The open interior layout creates a smooth airflow path from intake to rear exhaust
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 1x 140 mm Dynamic X2 GP fans included)

Bolt-free glass
Seamless, top-latching tempered glass panels make for a stylish exterior

All access
- The fully removable top panel and fan bracket offers excellent interior access and easy cable routing
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access

More in store
- Flexible storage options with two HDD/SSD drive trays and four dedicated SSD mounts (2 brackets included)
- Integrated cable guides with cable straps further simplify cable management behind the board

Type-C Interface
USB Type-C front I/O offers quick access to fast charging and speeds up to 10 Gbps
  • Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
  • Compact yet roomy interior makes the most of mATX with high space efficiency and robust component support
  • Open interior layout creates a smooth airflow path from front intake to rear exhaust

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Materiaal
Staal, Gehard glas
Soort*
PC
Kleur van het product*
Zwart
Supported motherboard form factors*
DTX, micro ATX, Mini-DTX, Mini-ITX
Aantal 3.5" bays*
2
Aantal 2.5" bays
4
Aantal uitbreidingssleuven
4
Zijraam
Ja
Geharde glaspla(a)t(en)
Ja
Anti-stof filter
Ja
Verbeterd kabelbeheer
Ja
Reset button
Ja
Aan-/uitknop
Ja
Maximum CPU cooler hoogte
16,7 cm
Maximum grafische kaart lengte
33,1 cm
Maximum PSU lengte
20 cm

Power voorraad

Vermogenstoevoer inclusief*
Nee
Ondersteunde vormfactoren stroomvoorziening
ATX

Poorten & interfaces

Audio-ingangen
Ja
Audio-uitgang
Ja
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1

Koeling

Aantal geïntstalleerde ventilators voorkant
1x 140 mm
Maximale aantal ventilators voorkant
3
Voorste ventilators ondersteunende diameters
120,140 mm

Koeling

Geïnstalleerde ventilators achterkant
1x 120 mm
Maximaal aantal ventilators achterkant
1
Achterkant ventilators ondersteunende diameters
120 mm
Maximaal aantal ventilators bovenkant
2
Bovenste ventilators ondersteunende diameters
120,140 mm
Maximaal aantal ventilators onderkant
1
Ondersterste ventilators ondersteunende diameters
120 mm
Ondersteunde afmetingen voorste radiator
60,120,140,200,240,280 mm
Ondersteunde afmetingen achterste radiator
120 mm
Ondersteunde afmetingen bovenste radiator
120,140,180,240 mm
Ondersteunde groottes radiatorventilator (onderkant)
120 mm

Opslagmedia

Ondersteunde HDD-groottes*
2.5,3.5"
SSD-vormfactor
2.5"

Inhoud van de verpakking

Gebruikershandleiding
Ja

Gewicht en omvang

Breedte
205 mm
Diepte
396 mm
Hoogte
406 mm
Gewicht
6,62 kg

Verpakking

Breedte verpakking
277 mm
Diepte verpakking
457 mm
Hoogte verpakking
462 mm
Gewicht verpakking
7,68 kg
