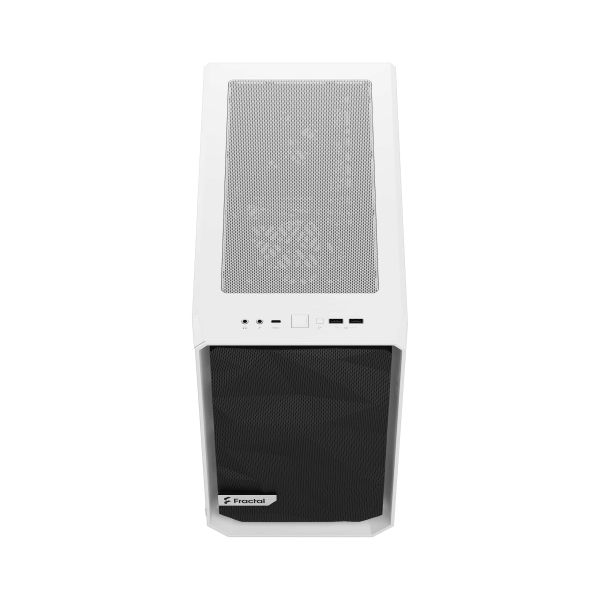

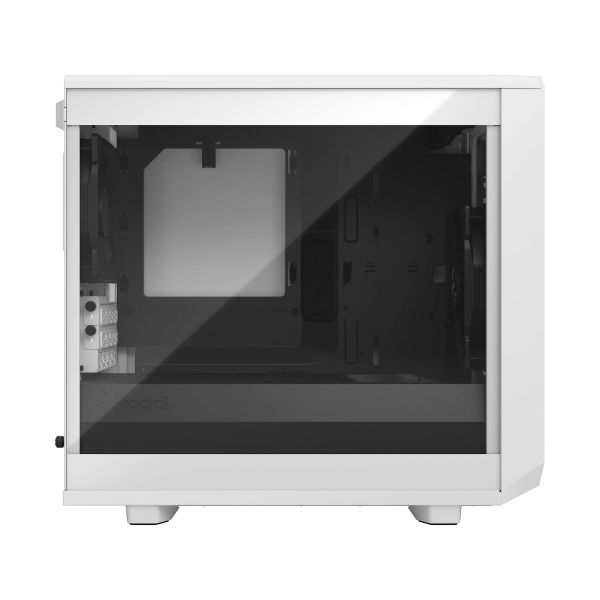

Fractal Design Meshify 2 Nano Wit

Fractal Design Meshify 2 Nano, PC, Wit, Mini-DTX, Mini-ITX, Staal, Gehard glas, 16,7 cm, 33,1 cm

Ruim op voorraad

Fabrikant Fractal Design
MPN FD-C-MES2N-02
EAN 7340172702634
€ 145,00 excl. BTW

Fractal Design Meshify 2 Nano Wit

Robust cooling
- Pre-installed Dynamic X2 GP 1x 120 mm and 1x 140 mm fans ensure smooth airflow with minimal noise
- Install up to 6x 120 mm or 3x 140 mm fans and front radiators up to 280 mm
- Room for GPUs up to 306 mm long including front fans with 331 mm total space

All access

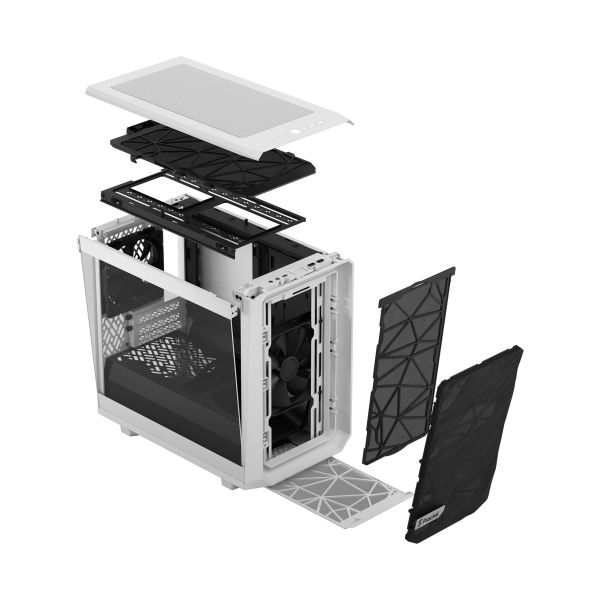

- Fully removable top panel and a top fan bracket that opens to provide excellent interior access and easy cable routing
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- Front filter with double layered detachable nylon for increased airflow

Slick and streamlined
The open interior layout creates a smooth airflow path from intake to rear exhaust

Guided airflow
- Two-part modular air duct for increased GPU airflow
- Bridgeless PCI expansion slots ensure unrestricted GPU exhaust

More in store
- Flexible storage option supporting one 3.5” drive and three 2.5’’ drives

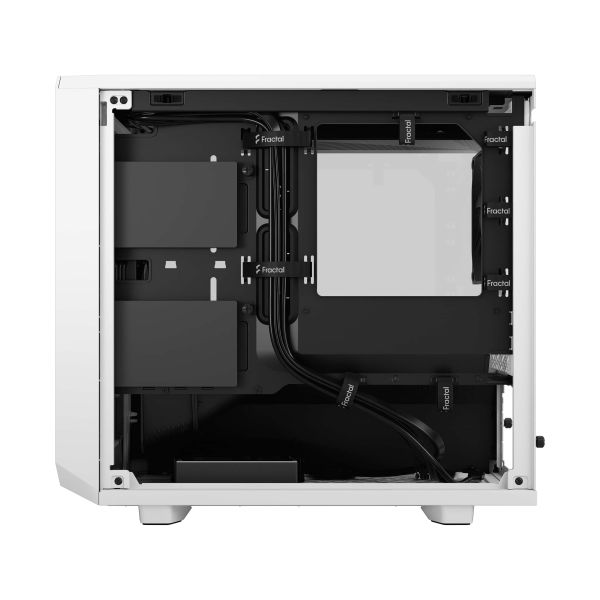

- Integrated cable guides with cable straps further simplify cable management behind the board

Bolt-free glass

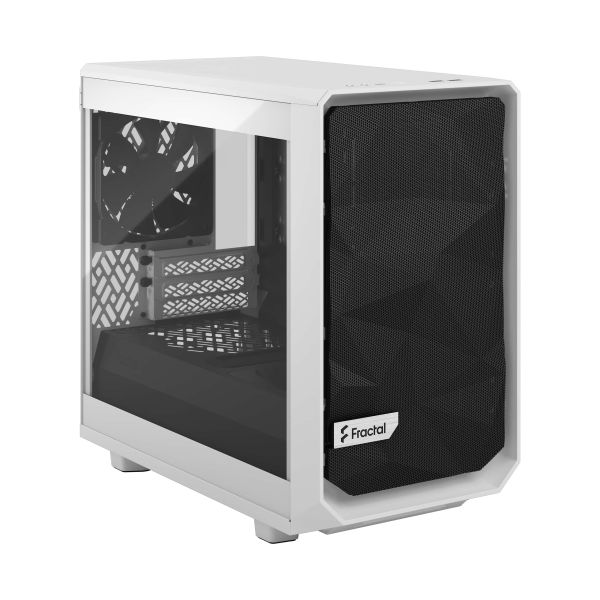

- Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism
- Front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts

Type-C interface
USB-C front I/O offers quick access to fast charging and speeds up to 10 Gbps
  • Compact yet spacious interior accommodates all Mini ITX motherboards

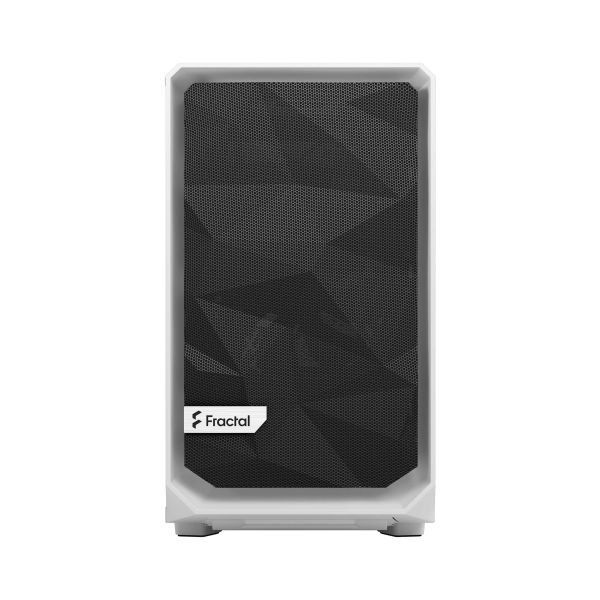

  • Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
  • Open interior layout creates a smooth airflow path from front intake to rear exhaust

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Materiaal
Staal, Gehard glas
Soort*
PC
Kleur van het product*
Wit
Supported motherboard form factors*
Mini-DTX, Mini-ITX
Aantal 3.5" bays*
1
Aantal 2.5" bays
3
Aantal uitbreidingssleuven
2
Zijraam
Ja
Geharde glaspla(a)t(en)
Ja
Anti-stof filter
Ja
Verbeterd kabelbeheer
Ja
Reset button
Ja
Aan-/uitknop
Ja
Maximum CPU cooler hoogte
16,7 cm
Maximum grafische kaart lengte
33,1 cm
Maximum PSU lengte
20 cm

Power voorraad

Vermogenstoevoer inclusief*
Nee
Ondersteunde vormfactoren stroomvoorziening
ATX

Poorten & interfaces

Audio-ingangen
Ja
Audio-uitgang
Ja
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1

Koeling

Aantal geïntstalleerde ventilators voorkant
1x 140 mm
Maximale aantal ventilators voorkant
2

Koeling

Voorste ventilators ondersteunende diameters
120,140 mm
Geïnstalleerde ventilators achterkant
1x 120 mm
Maximaal aantal ventilators achterkant
1
Achterkant ventilators ondersteunende diameters
120 mm
Maximaal aantal ventilators bovenkant
2
Bovenste ventilators ondersteunende diameters
120,140 mm
Maximaal aantal ventilators onderkant
1
Ondersterste ventilators ondersteunende diameters
120 mm
Ondersteunde afmetingen voorste radiator
120,140,240,280 mm
Ondersteunde afmetingen achterste radiator
120 mm

Opslagmedia

Ondersteunde HDD-groottes*
2.5,3.5"
SSD-vormfactor
2.5"

Inhoud van de verpakking

Gebruikershandleiding
Ja

Gewicht en omvang

Breedte
205 mm
Diepte
396 mm
Hoogte
361 mm
Gewicht
5,9 kg

Verpakking

Breedte verpakking
277 mm
Diepte verpakking
412 mm
Hoogte verpakking
462 mm
Gewicht verpakking
7,1 kg
