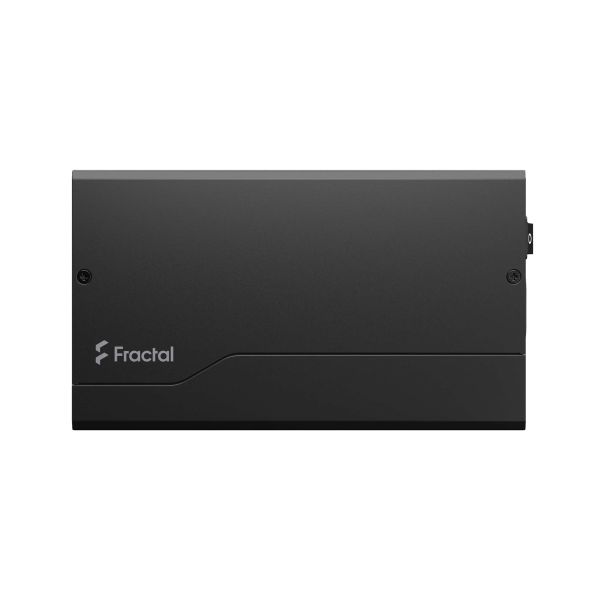

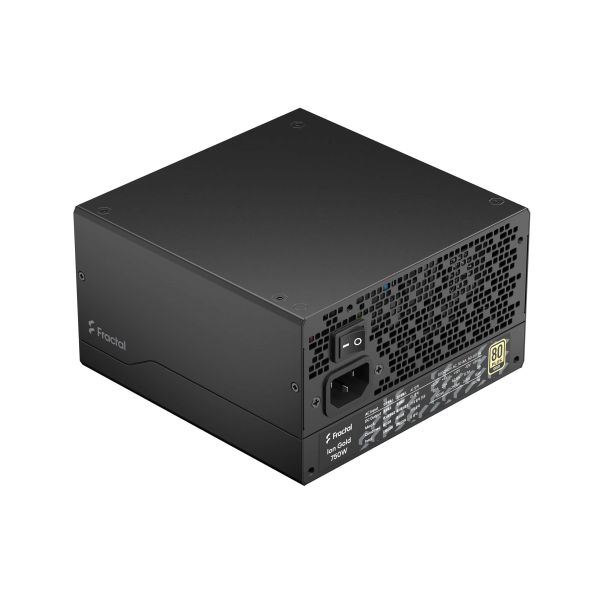

Fractal Design Ion+ 750W Gold power supply unit 24-pin ATX ATX Zwart
Fractal Design Ion+ 750W Gold, 750 W, 100 - 240 V, 50 - 60 Hz, 10 A, 120 W, 22 A
Ruim op voorraad
Fabrikant
Fractal Design
MPN
FD-P-IA2G-750-EU
EAN
7340172702795
€ 185,00
excl. BTW
€ 185,00
excl. BTW
excl. BTW
Fractal Design Ion+ 750W Gold power supply unit 24-pin ATX ATX Zwart
The power of balance
Great performance. Fully modular. Quiet operation.
80 PLUS® Gold certified
High-efficiency performance wastes less energy and reduces heat generation
More precise electrical output and full compatibility with modern components through DC-DC design
Quality components consistently deliver tight voltage regulation with low ripple and noise

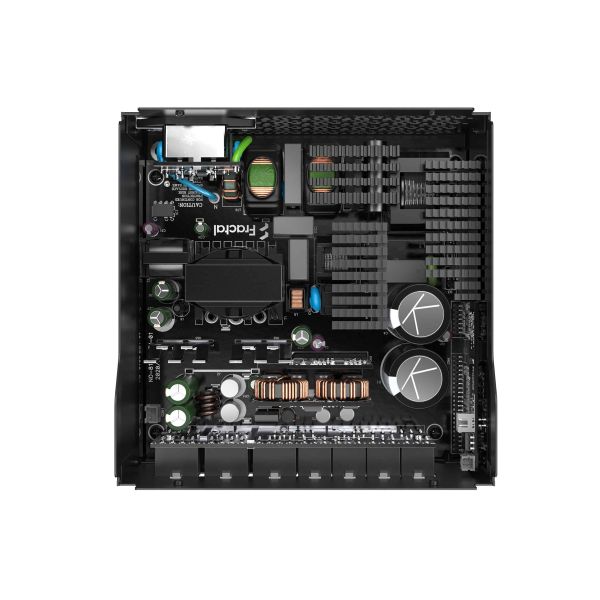

Premium capacitor(s)
Premium Japanese 105°C capacitor(s) on the primary side provide superior reliability and durability

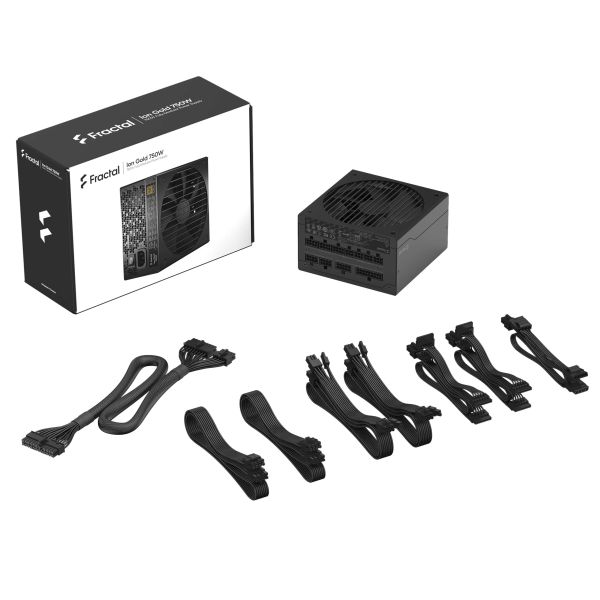

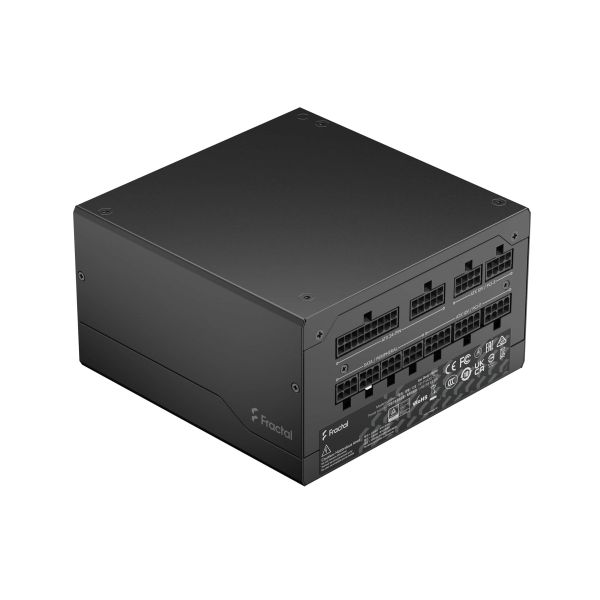

Fully modular design
Reduced clutter results in a clean and simple installation
Compact 150 mm depth allows for installation in compact cases
Provides additional cable management room in larger cases

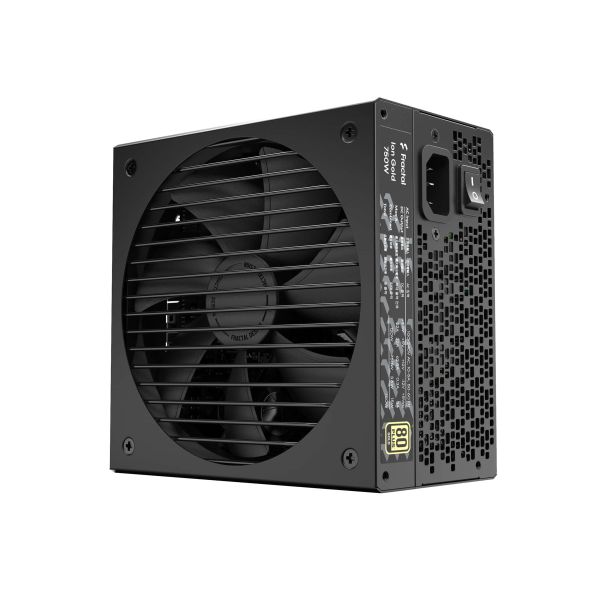

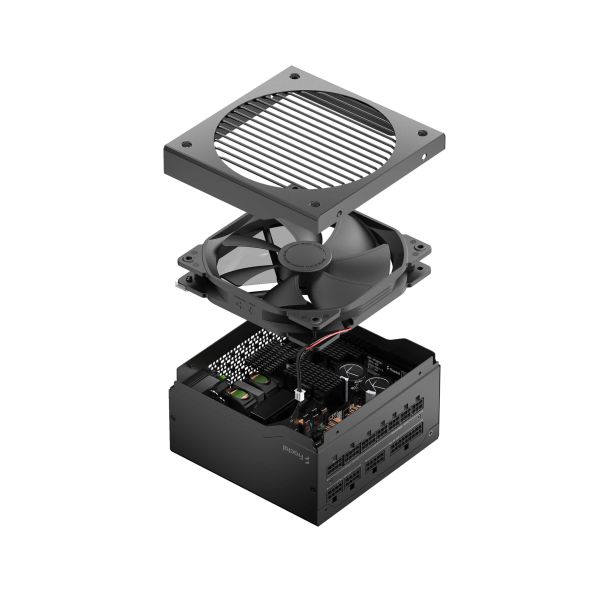

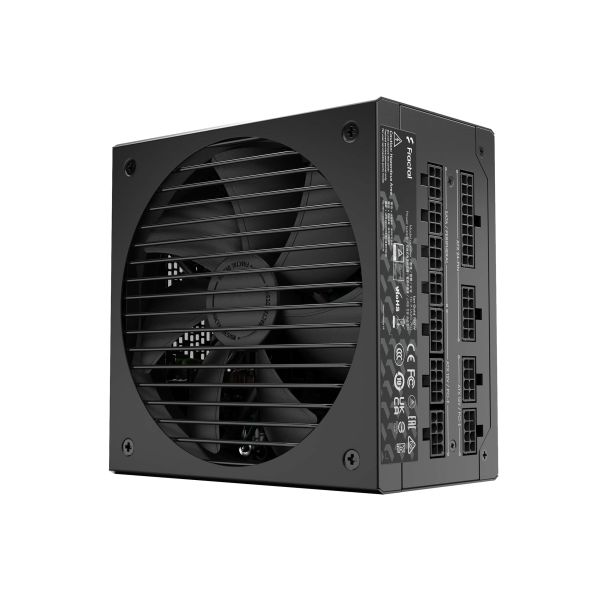

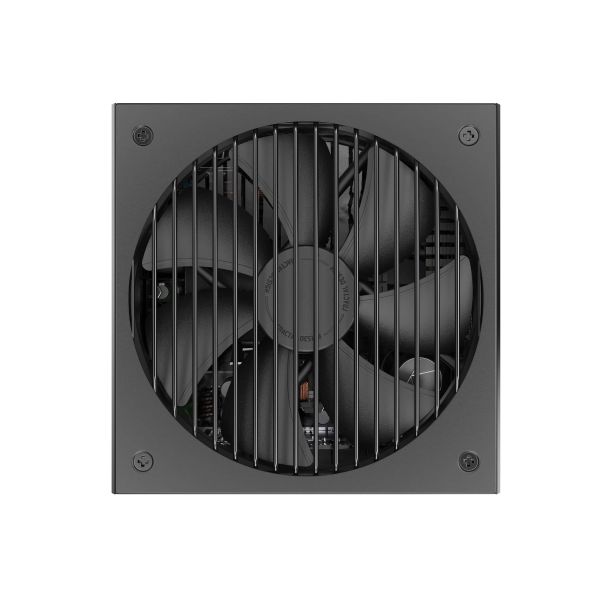

Large low-speed fan
Ion Gold comes equipped with a large temperature-controlled Fractal Design Dynamic 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed

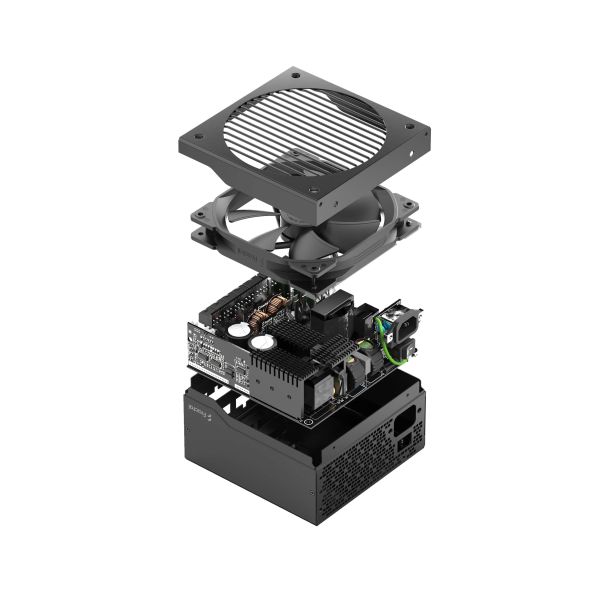

Take a closer look at the Ion Gold
DC-DC design for more precise electrical output. ATX 2.52 compatible for tighter timing limits. Full protection suite and 7-year warranty.
Great performance. Fully modular. Quiet operation.
80 PLUS® Gold certified
High-efficiency performance wastes less energy and reduces heat generation
More precise electrical output and full compatibility with modern components through DC-DC design
Quality components consistently deliver tight voltage regulation with low ripple and noise
Premium capacitor(s)
Premium Japanese 105°C capacitor(s) on the primary side provide superior reliability and durability
Fully modular design
Reduced clutter results in a clean and simple installation
Compact 150 mm depth allows for installation in compact cases
Provides additional cable management room in larger cases
Large low-speed fan
Ion Gold comes equipped with a large temperature-controlled Fractal Design Dynamic 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed
Take a closer look at the Ion Gold
DC-DC design for more precise electrical output. ATX 2.52 compatible for tighter timing limits. Full protection suite and 7-year warranty.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties

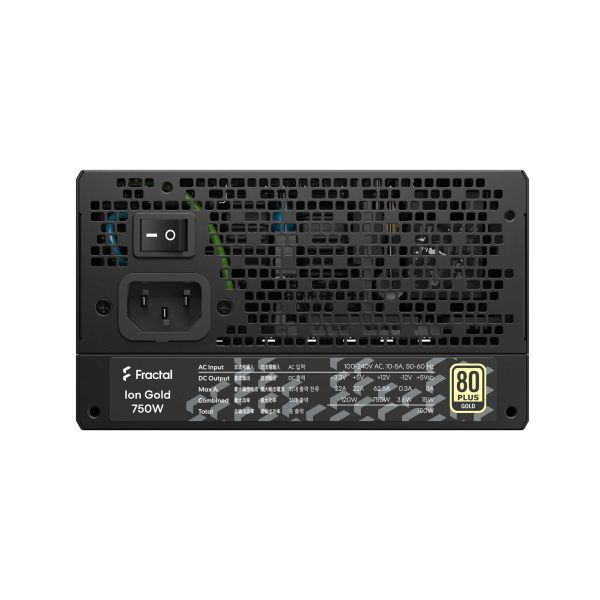

Energie
Totaal vermogen*
750 W
AC-ingangsspanning*
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
10 A
Gecombineerd vermogen (+5V)
120 W
Max huidige output (+3.3V)
22 A
Max huidige output(+12V)
62,5 A
Max huidige output (+5V)
22 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
3 A

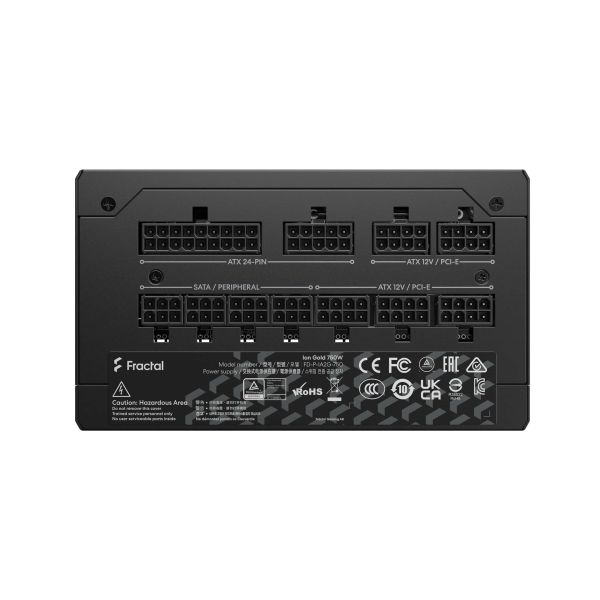

Poorten & interfaces
Motherboard power connector*
24-pin ATX
Lengte stroomkabel moederbord
50 cm
Aantal SATA power connectors
8
Lengte SATA-stroomkabel
150,500 mm
Peripheral (Molex) power connectors (4-pin)*
3
Lengte stroomkabel randapparaat (Molex)
150,500 mm
EPS power connector (8-pin)
Ja
EPS-voedingsconnector (4+4 pin)
Ja
PCI Express power connectors (6+2 pin)
4
ATX Power connector (24-pin)
Ja
Prestatie
80 PLUS certificatie*
80 PLUS Gold
Bedoeld voor*
PC
Prestatie
Vormfactor van de voeding (PSU)*
ATX
ATX version
2.52
EPS version
2.92
Mean time between failures (MTBF)
100000 uur
Certificering
CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Design
Kleur van het product
Zwart
Ventilator diameter
14 cm
Aantal ventilatoren
1 ventilator(en)
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
40 - 50 °C
Gewicht en omvang
Breedte
150 mm
Diepte
150 mm
Hoogte
86 mm
Gewicht
2,31 kg

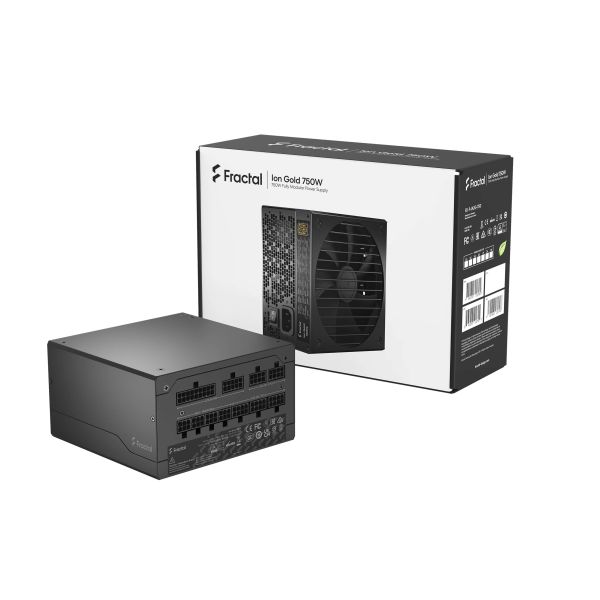

Verpakking
Breedte verpakking
210 mm
Diepte verpakking
300 mm
Hoogte verpakking
110 mm
Gewicht verpakking
2,69 kg
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84733020
