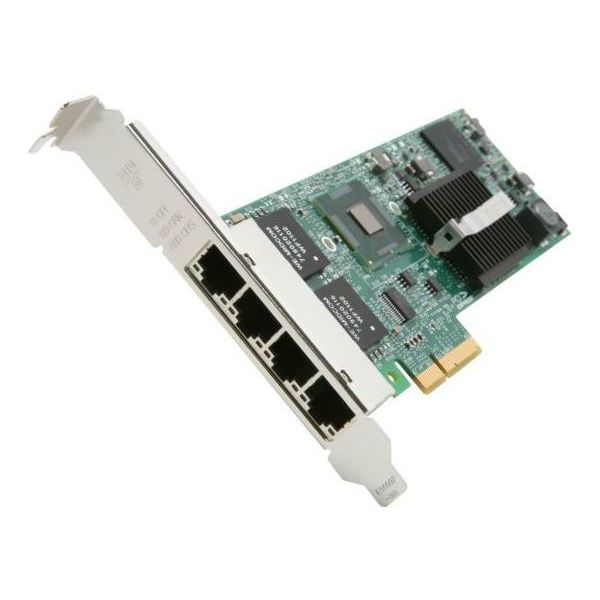

Fujitsu S26361-F4610-L504 netwerkkaart Intern Ethernet 1000 Mbit/s
Fujitsu S26361-F4610-L504, Intern, Bedraad, PCI Express, Ethernet, 1000 Mbit/s
Ruim op voorraad
Fabrikant
Fujitsu
MPN
S26361-F4610-L504
EAN
4053026551755
€ 114,00
excl. BTW
€ 114,00
excl. BTW
excl. BTW
Fujitsu S26361-F4610-L504 netwerkkaart Intern Ethernet 1000 Mbit/s
Trust the network communication of the new Ethernet LAN adapter. The new Intel I350-T4
Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers four Gigabit Ethernet
ports for 10/100/1000BaseT.
Virtualization support and Wake-on-LAN with selectable port are just some of the features from
which you will benefit. Optimal support for your virtualization is provided by the support for Virtual
Machine Device Queues (VMDq), Single Root I/O virtualization and sharing specification (SR-IOV).
SR-IOV requires corresponding support in the system BIOS and in the operating system. PCI-SIG
SR-IOV defines extensions of the PCI Express (PCIe) specification and enables PCI hardware resources
to be shared with several system images or Virtual Machines.
Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers four Gigabit Ethernet
ports for 10/100/1000BaseT.
Virtualization support and Wake-on-LAN with selectable port are just some of the features from
which you will benefit. Optimal support for your virtualization is provided by the support for Virtual
Machine Device Queues (VMDq), Single Root I/O virtualization and sharing specification (SR-IOV).
SR-IOV requires corresponding support in the system BIOS and in the operating system. PCI-SIG
SR-IOV defines extensions of the PCI Express (PCIe) specification and enables PCI hardware resources
to be shared with several system images or Virtual Machines.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
4
PCI versie
2.1
Netwerk
Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Netwerkstandaard*
IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet LAN
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Bekabelingstechnologie
10/100/1000BaseT(X)
Wake-on-LAN
Ja
Jumbo Frames ondersteuning
Ja
Ondersteunde netwerkprotocollen
iSCSI
LAN controller
Intel® I350
Design
Component voor*
Server
Intern*
Ja
Chipset
Intel® I350-AM4
LED-indicatoren
Ja
Energie
Stroomverbruik (typisch)
5 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Overige specificaties
Datastroombeheer
Ja
