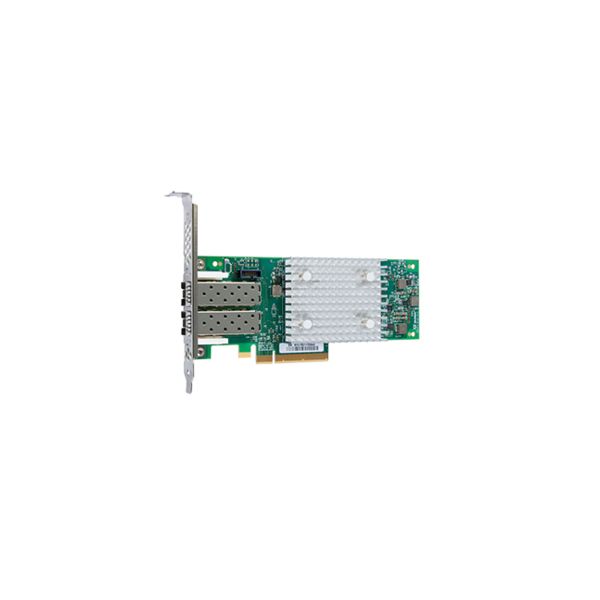

Fujitsu QLE2692 Intern Fiber 16000 Mbit/s

Fujitsu QLE2692, Intern, Bedraad, PCI Express, Fiber, 16000 Mbit/s, Groen, Roestvrijstaal

Nog 3 beschikbaar (bel voor reservering)

Fabrikant Fujitsu
MPN S26361-F5580-L502
EAN 4057185579087
€ 1.474,00 excl. BTW

Fujitsu QLE2692 Intern Fiber 16000 Mbit/s

The enhanced Gen5 16 Gb/s Fibre Channel Host Bus Adapters (HBA) QLE2690 and QLE2692 for the PRIMERGY & PRIMEQUEST servers are ideal for virtualized environments and transaction intensive applications. The adapters support the latest PCIe 3.0 standard for lower cooling and power costs. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency while addressing the needs of IT organizations that require reliability, integrated management, and guaranteed network performance.
  • Support for 1 or 2 port 16 Gb/s Fibre Channel devices
  • High performance throughput
  • QLoigc STORFUSION TECHNOLOGY
  • Over 1.3 million IOPS
  • Provide up to high performance 32 Gb/s aggregate bandwidth
  • 16Gbps full-duplex line rate per port (maximum)
  • Highest level of reliabilty
  • Low latency in high transaction intensive applications and virtualized environments

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
2
Vezel-optische connector
LC
PCI versie
3.0
PCI Card form factor
Full-height (low-profile)

Netwerk

Maximale overdrachtssnelheid van gegevens*
16000 Mbit/s
Full duplex
Ja
Auto-negotiation
Ja
iSCSI support
Ja
Bandbreedte
32 Gbit/s

Design

Kleur van het product
Groen, Roestvrijstaal
Intern*
Ja

Design

LED-indicatoren
Snelheid
Compatibele producten
PRIMERGY Server

Energie

Stroomverbruik (typisch)
9,3 W

Minimale systeemeisen

Ondersteunt Windows
Ja
Ondersteunt Linux
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Verpakking

Aantal
1
Low-profile bracket
Ja
