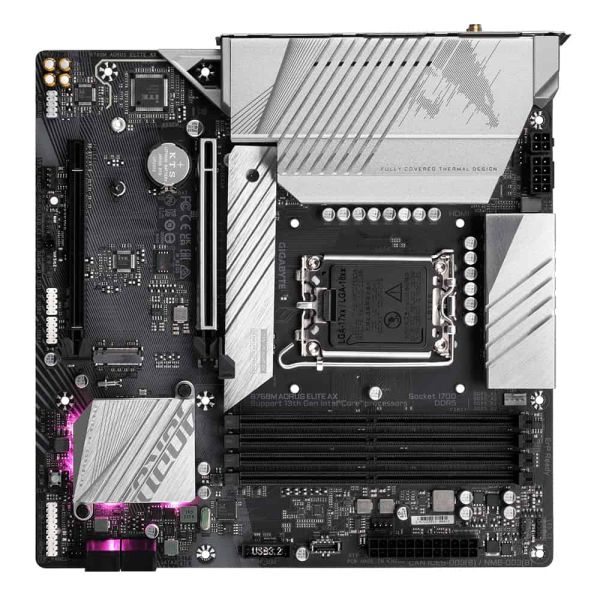

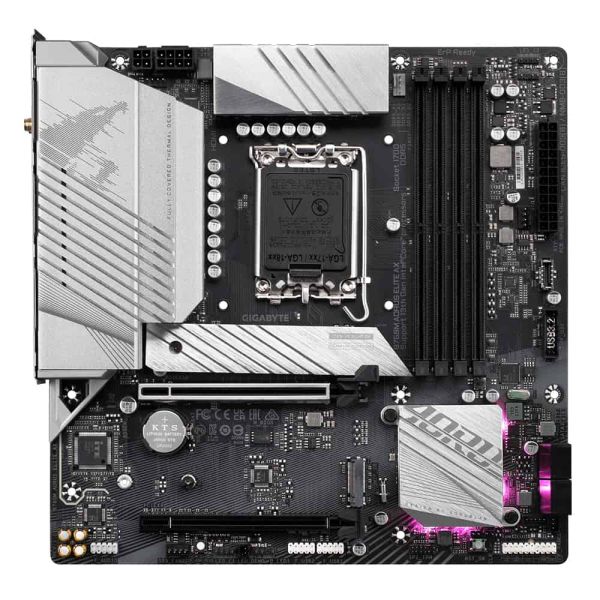

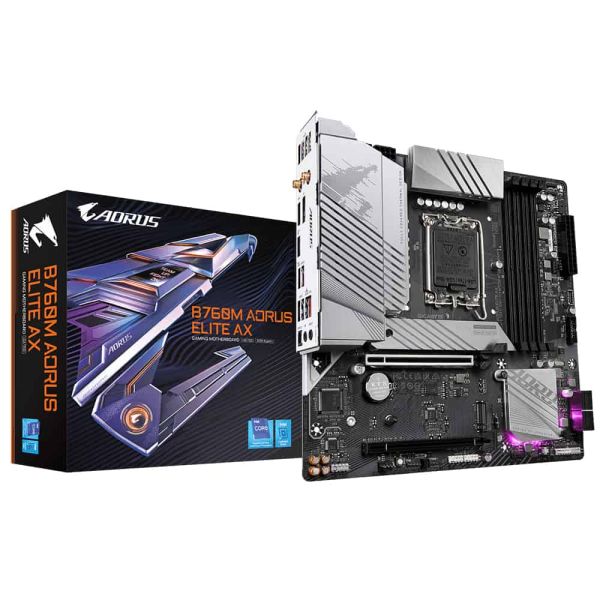

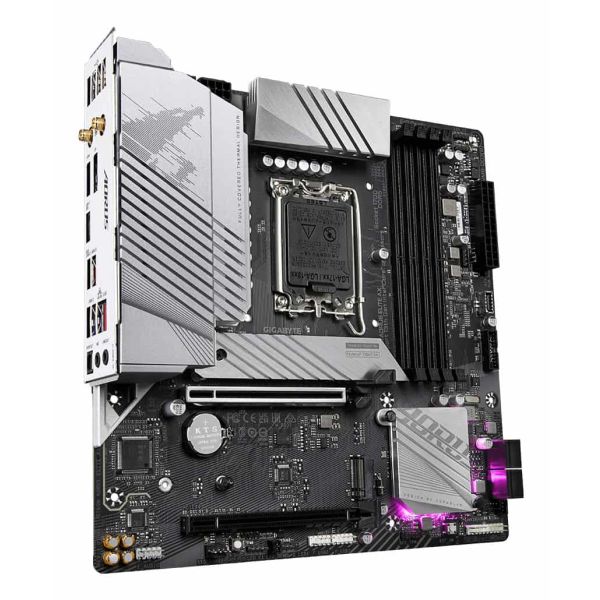

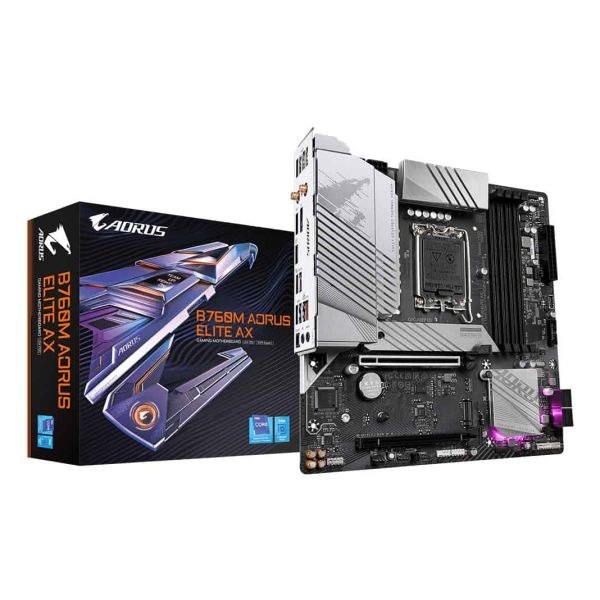

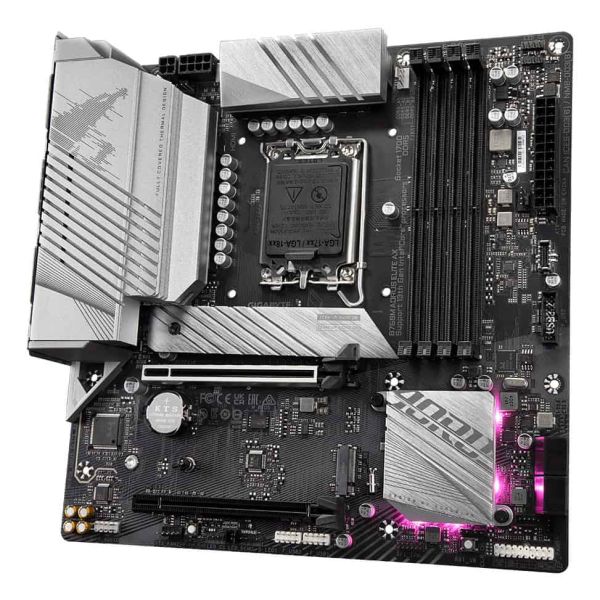

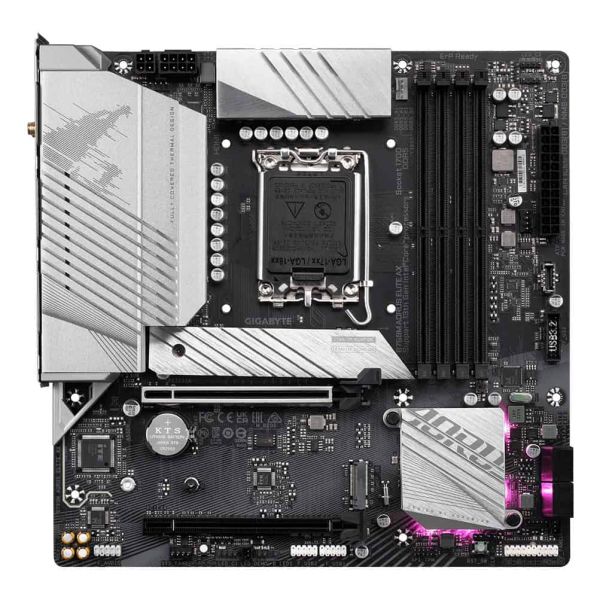

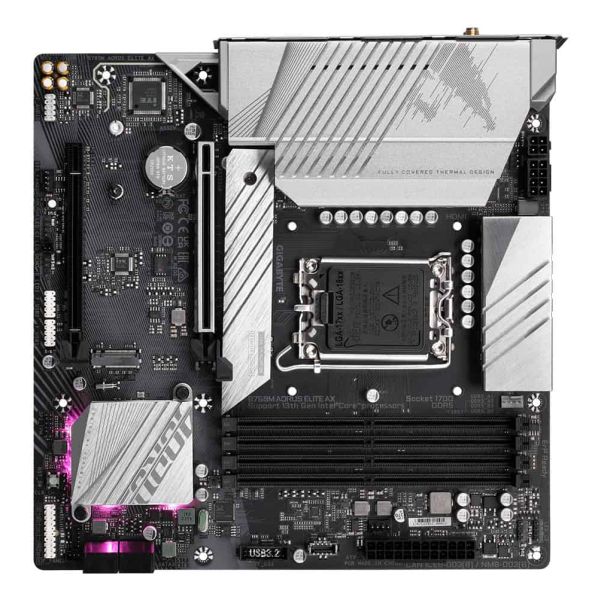

Gigabyte B760M AORUS ELITE AX moederbord Intel B760 LGA 1700 micro ATX

Gigabyte B760M AORUS ELITE AX, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 128 GB

Ruim op voorraad

Fabrikant Gigabyte
MPN B760M AORUS ELITE AX
EAN 4719331851309
€ 207,00 excl. BTW

Gigabyte B760M AORUS ELITE AX moederbord Intel B760 LGA 1700 micro ATX

UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
  • Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
  • Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks： 2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax
  • Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Non-ECC
Ja
Supported memory clock speeds
4000,4800,5300,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz
Ondersteunde geheugenkloksnelheid (max)
7600 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
Aantal storage drives ondersteund
6
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Grafisch

Ondersteuning voor parallel processing*
CrossFireX
Maximum resolutie
4096 x 2304 Pixels
HDCP
Ja

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
4
S/PDIF uitgang
Ja
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
3
Peripheral (Molex) power connectors (4-pin)
1
EPS power connector (8-pin)
Ja
TPM connector
Ja
Thunderbolt-headers
2
RGB LED-aansluitrail
Ja

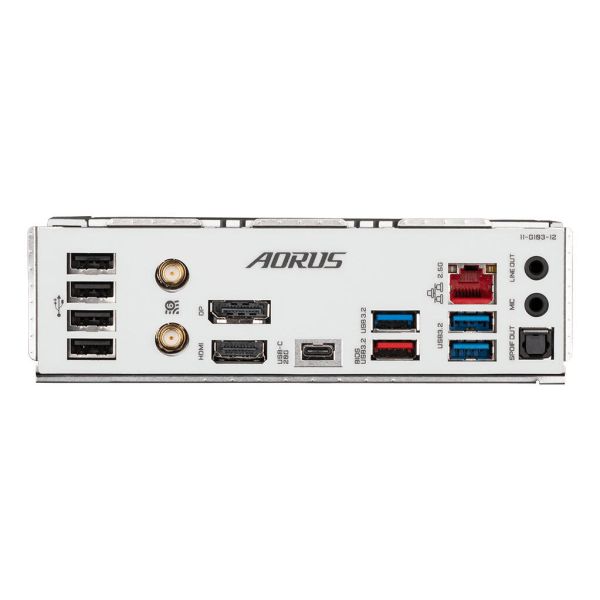

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
3

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
1
Aantal USB 3.2 Gen 2.2 Type-C-poorten
1
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal HDMI-poorten*
1
Aantal DisplayPorts
1
Hoofdtelefoonuitgangen
1
Microfoon, line-in ingang
Ja
WiFi-AP antenna jack
2

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 6E (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.3

Kenmerken

Chipset moederbord*
Intel B760
Audio-uitgangskanalen*
7.1 kanalen
PC gezondheids monitor
Ventilator, Temperatuur, Spanning, Water cooling
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Type stroombron
ATX
Ondersteunt Windows
Windows 10, Windows 11

Uitbreidingsmodules

PCI Express x16 (Gen 4.x) sleuven
1
Aantal M.2 (M) slots
1

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Ja
Versie Desktop Management Interface (DMI)
2.7
Systeem Management BIOS (SMBIOS) versie
2.7

Gewicht en omvang

Breedte
244 mm
Diepte
244 mm

Inhoud van de verpakking

Meegeleverde software
Norton Internet Security
