Gigabyte GC-WBAX210, Intern, Draadloos, PCI Express, WLAN / Bluetooth, 2400 Mbit/s, Zwart

Niet op voorraad

Fabrikant Gigabyte
MPN GC-WBAX210
EAN 4719331814953

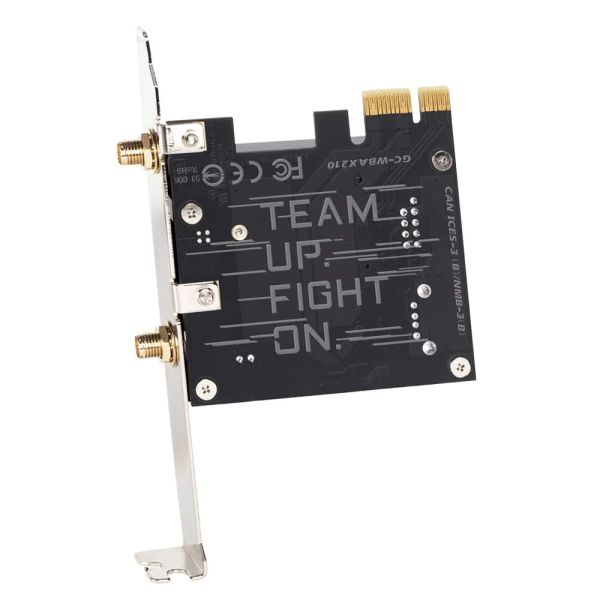

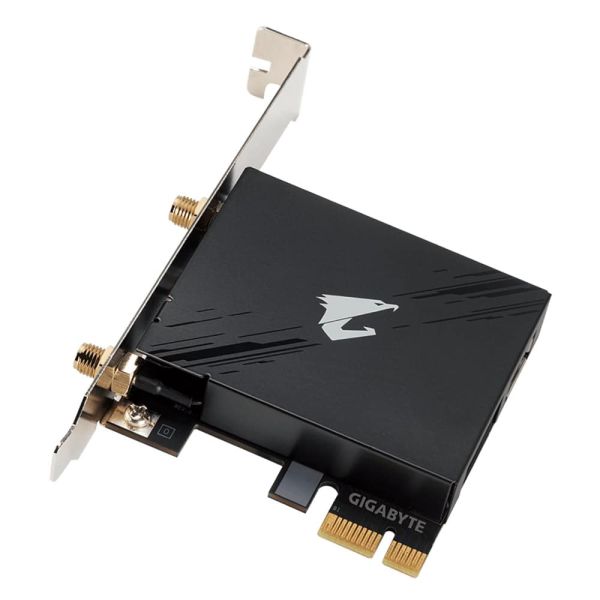

Gigabyte GC-WBAX210 netwerkkaart Intern WLAN / Bluetooth 2400 Mbit/s

Smashes the GbE Barrier!
2x2 802.11ax Tri-Band WIFI + BLUETOOTH 5.2 card GC-WBAX210 is an exclusive PCIe expansion card that offers support for the latest 2x2 802.11ax 160MHz Tri-Band WIFI and BLUETOOTH 5.2 connectivity.

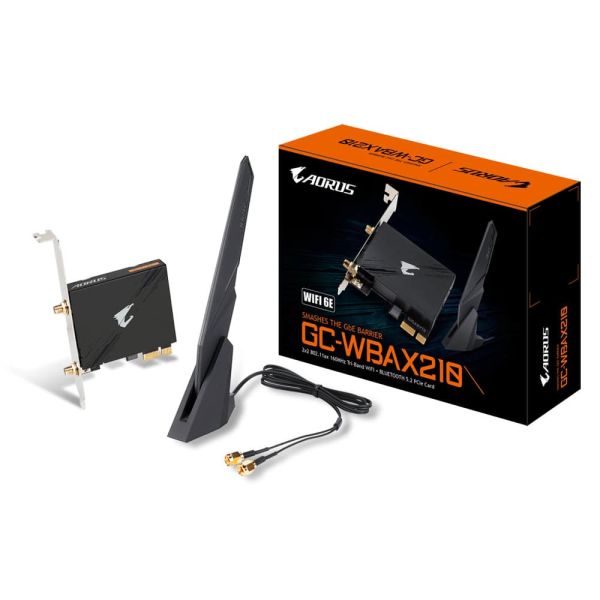

AORUS Antenna Supports Tri-Band with Better WIFI Signal
- All new antenna supported Tri-band 802.11ax 2.4GHz / 5GHz / 6GHz. Better signal strength compared to traditional antenna design
- AORUS Antenna with smart antenna function for the best WIFI signal transmitting
- Multiple angle tilt and magnetic base for the best signal strength direction and location

WIFI 6E Advantage
Spectrum congestion is huge problem in current WIFI environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. WIFI 6E is extended standard to WIFI 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With WIFI 6E, users can enjoy faster connection and stronger signal than before.
  • Intel® WI-FI 6E AX210 module built-in
  • Dedicated spectrum in 6GHz band for maximum speed and ultra-low latencies
  • Support dual-stream Wireless in the 2.4GHz, 5GHz and 6GHz bands
  • IEEE 802.11.acR2+ax compliant
  • High speed wireless connection up to 2400Mbps
  • Fully qualified BLUETOOTH 5.2
  • MU-MIMO TX/RX
  • Paired with AORUS high performance 2Tx2R antenna
  • PCIe x1 interface card

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Draadloos
Hostinterface*
PCI Express
Interface*
WLAN / Bluetooth

Netwerk

Maximale overdrachtssnelheid van gegevens*
2400 Mbit/s
Netwerkstandaard*
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w
Wifi
Ja
Wifi-band
Tri-band (2,4 GHz / 5 GHz / 6 GHz)
Frequentiebereik
2,4 - 6 GHz
Wifi-standaard
Wi-Fi 6 (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Ondersteunde beveiligingsalgoritmen
EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA2, WPA3
Bluetooth
Ja
Bluetooth-versie
5.2

Netwerk

LAN controller
Intel AX210

Design

Component voor*
PC
Kleur van het product
Zwart
Intern*
Ja
Antenne
Ja
Antenne-ontwerp
Extern
Soort antenne
2x2

Inhoud van de verpakking

Snelle installatiehandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
