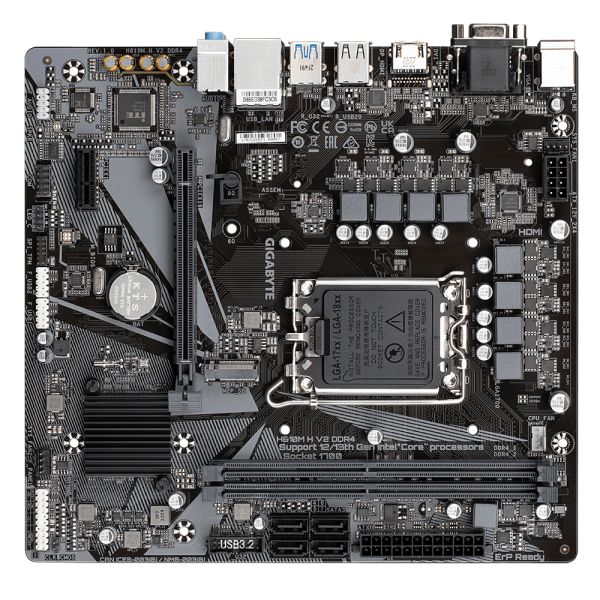

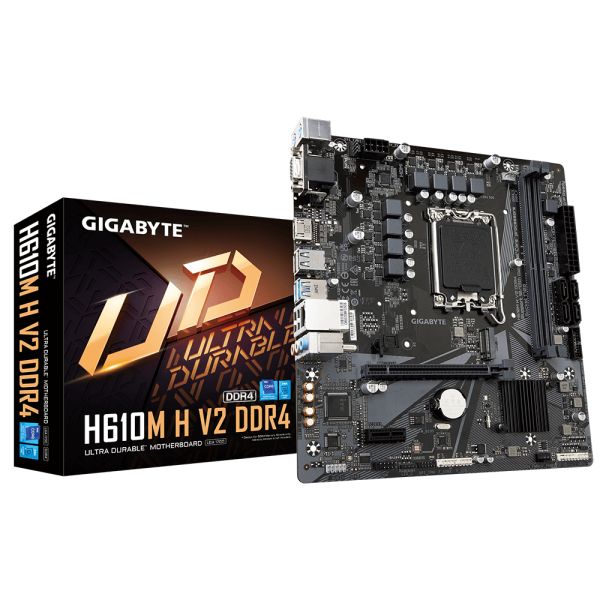

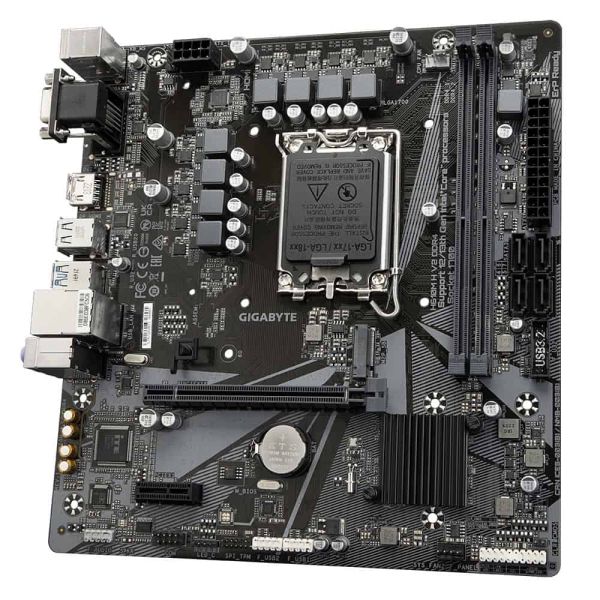

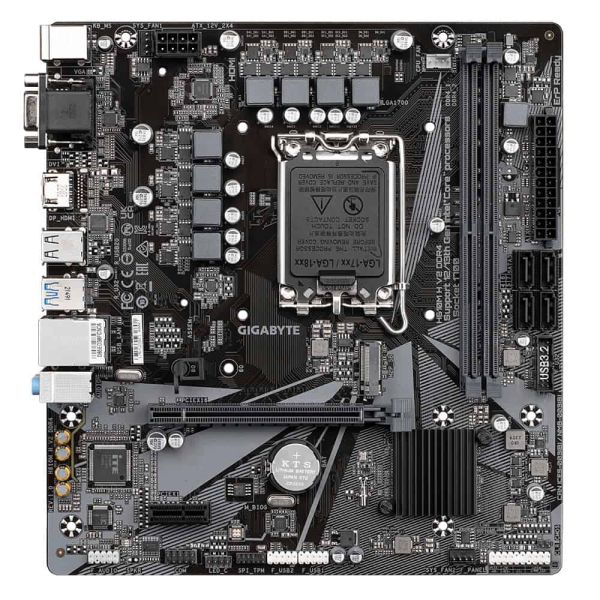

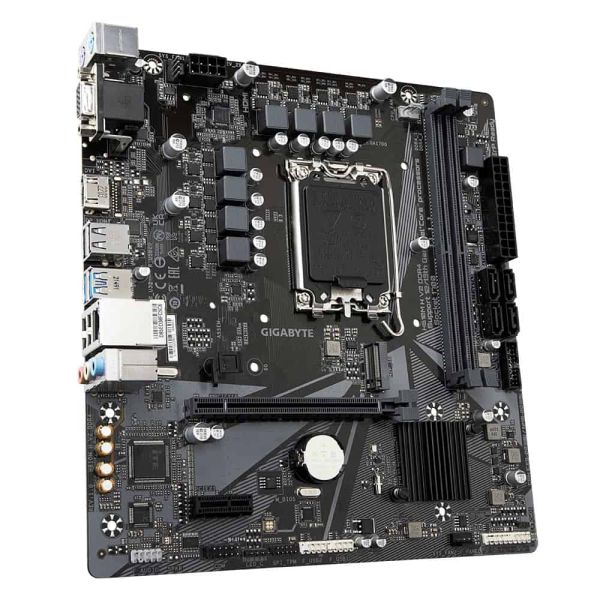

Gigabyte H610M H V2 DDR4 moederbord Intel H610 Express LGA 1700 micro ATX

Gigabyte H610M H V2 DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 64 GB, DDR4-SDRAM

Ruim op voorraad

Fabrikant Gigabyte
MPN H610M H V2 DDR4
EAN 4719331851743
€ 118,00 excl. BTW

Gigabyte H610M H V2 DDR4 moederbord Intel H610 Express LGA 1700 micro ATX

Gigabyte H610M H V2 DDR4 mATX / LGA 1700 / H610 / 2x DDR4 / 3200 / 4x SATA, 1x M.2 / 1x HDMI

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Maximaal intern geheugen ondersteund door processor
64 GB

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
2
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC
Ja
Non-ECC
Ja
Supported memory clock speeds
2133,2400,2666,2933,3000,3200 MHz
Ondersteunde geheugenkloksnelheid (max)
3200 MHz
Maximum intern geheugen*
64 GB
Ondersteunde geheugenmodule capaciteiten
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
Maximum aantal HDD's per behuizing
4
Aantal storage drives ondersteund
5

Grafisch

Grafische adapter-familie
Intel
Grafische adapter
HD Graphics
Maximum resolutie
4096 x 2160 Pixels
DirectX versie
12.0

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aantal SATA III connectors*
4
Totaal aantal SATA-connectoren
4
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
2
TPM connector
Ja
Serial port headers
1
RGB LED-aansluitrail
Ja

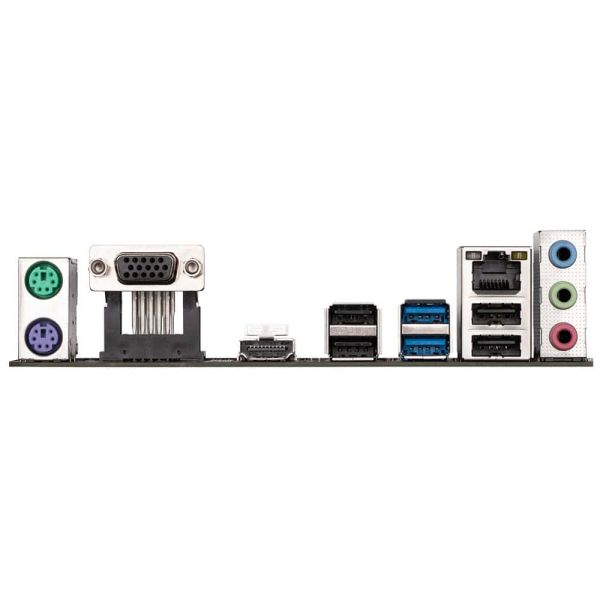

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
1
PS/2 poort(en)
2
VGA (D-Sub)poort(en)*
1
Aantal HDMI-poorten*
1
HDMI versie
2.1
Hoofdtelefoonuitgangen
1
Lijningang
Ja

Aansluitingen achterzijde

Microfoon, line-in ingang
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Wifi*
Nee

Kenmerken

Chipset moederbord*
Intel H610 Express
Audio-uitgangskanalen*
7.1 kanalen
Kleur van het product
Bruin
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64

Uitbreidingsmodules

PCI Express x1 slots
1
PCI Express x16 slots
1
PCI Express slots versie
4.0
Aantal M.2 (M) slots
1

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
128 Mbit
ACPI version
5.0
Clear CMOS jumper
Ja
Versie Desktop Management Interface (DMI)
2.7
Systeem Management BIOS (SMBIOS) versie
2.7

Logistieke gegevens

Land van herkomst
China
Producten per (binnenste) verzendverpakking
1 stuk(s)

Accu/Batterij

Gewicht batterij
3 g
Lithiumgewicht per batterij
0,07 g
Aantal batterijcellen
1
Batterijtechnologie
Lithium-Manganese Dioxide (LiMnO2)
Type batterij
CR2032

Verpakking

Breedte verpakking
265 mm
Diepte verpakking
265 mm
Hoogte verpakking
54 mm
Gewicht verpakking
818 g

Gewicht en omvang

Breedte
230 mm
Diepte
215 mm
Hoogte
35 mm

Inhoud van de verpakking

Batterijen inbegrepen
Ja
Meegeleverde software
Norton Internet Security LAN bandwidth management software

Technische details

Garantieperiode
3 jaar
