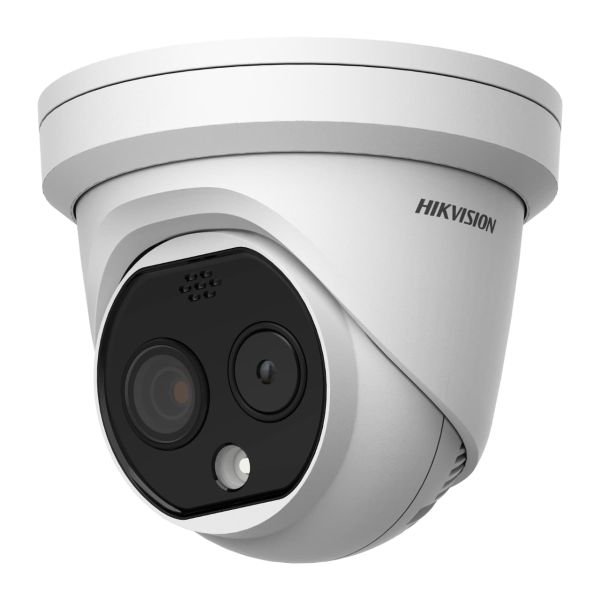

Hikvision Digital Technology DS-2TD1217-2/PA bewakingscamera Dome IP-beveiligingscamera Buiten 2688 x 1520 Pixels Plafond/muur

Hikvision Digital Technology DS-2TD1217-2/PA, IP-beveiligingscamera, Buiten, Bedraad, 40 mK, 9,44 mRad, Plafond/muur

Niet op voorraad

Fabrikant Hikvision
MPN DS-2TD1217-2/PA
EAN 6941264032441
€ 494,00 excl. BTW

Hikvision Digital Technology DS-2TD1217-2/PA bewakingscamera Dome IP-beveiligingscamera Buiten 2688 x 1520 Pixels Plafond/muur

Hikvision Turret IR DS-2TD1217-2/V1 1.8mm 2MP

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Soort*
IP-beveiligingscamera
Ondersteuning voor plaatsing*
Buiten
Connectiviteitstechnologie*
Bedraad
Thermische module
Ja
Wide Dynamic Range (WDR)
Ja
Dag/nacht modus
Ja
Alarm ingang/uitgang
Ja
Infrarood (IR)-afsluitingsfilter
Ja
Aantal talen
32
Thermische gevoeligheid (NETD)
40 mK
IFOV (ruimtelijke resolutie)
9,44 mRad

Design

Vormfactor*
Dome
Montagewijze*
Plafond/muur
Kleur van het product*
Wit
Internationale veiligheidscode (IP)
IP66

Camera

Controle camerapanning
Nee
Kantelfunctie camera
Nee
Minimale belichting
0,0035 Lux
Field of view (FOV) hoek
119,34°
Gezichtsveldshoek/FOV (thermische module)
90 x 66,4°
Camera sluitertijd
1 - 1/100000 s

Beeldsensor

Aantal sensoren
1
Omvang optische sensor
25,4 / 2,7 mm (1 / 2.7")
Sensortype (thermomodule)
Vanadium Oxide Uncooled Focal Plane Arrays
Effectieve sensorresolutie (thermische module)
160 x 120 Pixels
Progressive scan
Ja
Type beeldsensor*
CMOS

Lenssysteem

Vaste focale lengte
2,1 mm
Dichtstbijzijnde focus afstand
0,1 m
Vaste brandpuntsafstand (thermische module)
1,8 mm
Diafragmaopening (thermische module)
1,1

Video

Maximum resolutie*
2688 x 1520 Pixels
Totaal aantal megapixels*
4 MP
Videocompressieformaten
H.264, H.265, M-JPEG
Ondersteunde grafische resoluties
176 x 120, 176 x 144, 320 x 240, 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Maximaal 30 frames per seconde
30 fps
Formaat analoog signaal
NTSC, PAL
Videostreaming
Ja
Ruisonderdrukking
Ja
Ruisonderdrukkingstechnologie
3D-ruisonderdrukking
Type sterkteregeling
Auto

Audio

Stemcodecs
G.711a, G.711u, G.722.1, G.726, MP2L2, PCM

Netwerk

Ethernet LAN*
Ja
Ethernet interface type
Fast Ethernet
Netwerkstandaard
IEEE 802.1x, IEEE 802.3af
Ondersteunde netwerkprotocollen
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Wifi*
Nee
Bluetooth*
Nee
Aantal gebruikers
32 gebruiker(s)
Quality of Service (QoS)
Ja

Opslagmedia

Ingebouwde HDD*
Nee
Geïntegreerde geheugenkaartlezer
Ja
Compatibele geheugenkaarten
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximale capaciteit van de geheugenkaart
256 GB

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
1
RS-485 ports
1
Microfoon, line-in ingang
Ja

Beveiliging

Temperatuursensor
Ja
IP-adresfilter
Ja
HTTPS-encryptie
Ja

Beheerfuncties

Web-gebaseerd management
Ja
Webbrowser
Ja
Reset button
Ja
Gedragsanalyse
Inbraakdetectie, Detectie van lijnoverschrijding, Regio ingangsdetectie, Region exiting detection

Energie

Type stroombron*
DC, Power over Ethernet (PoE)
Vermogensverbruik (max)
6 W
Stroomverbruik (voeding via Ethernet (PoE))
6,5 W
Stroomuitvoer (volt)
12
Stroomuitvoer (ampère)
0,5 A

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 65 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
138,3 mm
Diepte
138,3 mm
Hoogte
123,1 mm
Gewicht
940 g

Inhoud van de verpakking

Aantal cameras*
1
