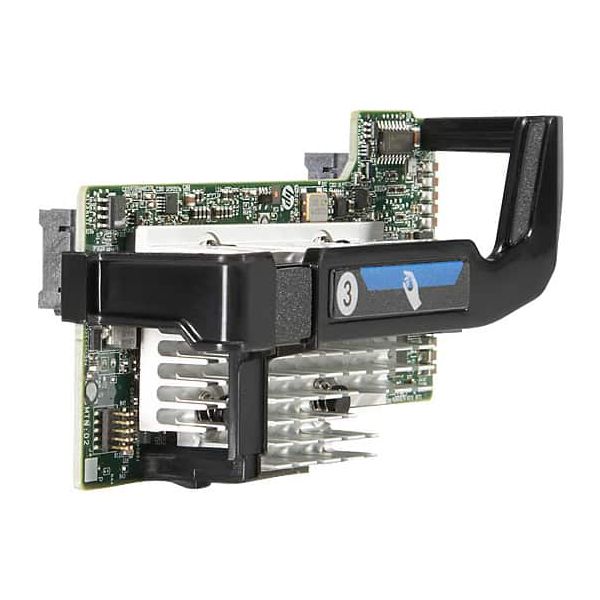

Hewlett Packard Enterprise FlexFabric 20Gb 2-port 630FLB Intern Ethernet 20000 Mbit/s
Hewlett Packard Enterprise FlexFabric 20Gb 2-port 630FLB, Intern, Bedraad, PCI Express, Ethernet, 20000 Mbit/s
Nog 17 beschikbaar
Fabrikant
HP
MPN
700065-B21
EAN
0887111260222
€ 56,00
excl. BTW
€ 56,00
excl. BTW
excl. BTW
Hewlett Packard Enterprise FlexFabric 20Gb 2-port 630FLB Intern Ethernet 20000 Mbit/s
The HP FlexFabric 20Gb 2-port 630FLB Adapter for HP ProLiant Gen8 Blades servers gives you twice the bandwidth of 10 Gb adapters for virtualized and converged data centers. This new FlexibleLOM Adapter improves Ethernet, FCoE and iSCSI speed increasing workload performance and scalability. Each FlexFabric 20Gb adapter replaces a 10Gb Nic and 8Gb FC HBA simplifying I/O hardware by 50% and reducing costs by 60%.
20Gb bandwidth improves performance and accelerates virtualized workloads.
• 2X bandwidth improvement to remove server I/O bottlenecks.
Flex-20/FlexFabric technology simplifies I/O hardware and reduces costs.
• Consolidate server I/O connections reducing NIC/HBA adapters, cabling and switch port requirements.
Centralized Life-cycle management streamlines operations.
• Provision multiple adapters in seconds using Virtual Connect profiles.
20Gb bandwidth improves performance and accelerates virtualized workloads.
• 2X bandwidth improvement to remove server I/O bottlenecks.
Flex-20/FlexFabric technology simplifies I/O hardware and reduces costs.
• Consolidate server I/O connections reducing NIC/HBA adapters, cabling and switch port requirements.
Centralized Life-cycle management streamlines operations.
• Provision multiple adapters in seconds using Virtual Connect profiles.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
PCI versie
2.0
Netwerk
Maximale overdrachtssnelheid van gegevens*
20000 Mbit/s
Netwerkstandaard*
IEEE 802.1ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x
Full duplex
Ja
Design
Component voor*
Server
Intern*
Ja
Chipset
Broadcom BCM 57840S MAC/PHY
Vormfactor
FlexibleLOM
Energie
Stroomverbruik (typisch)
12 W
Gewicht en omvang
Breedte
57,2 mm
Diepte
241,3 mm
Hoogte
190,5 mm
Gewicht
450 g
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Overige specificaties
Aantal poorten
2
