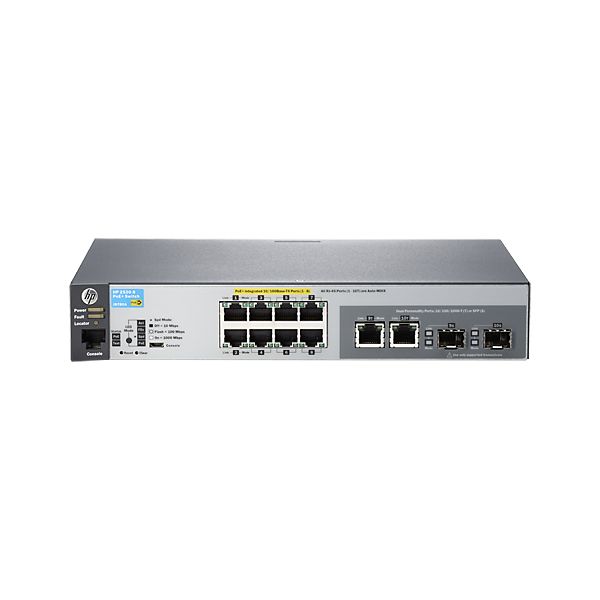

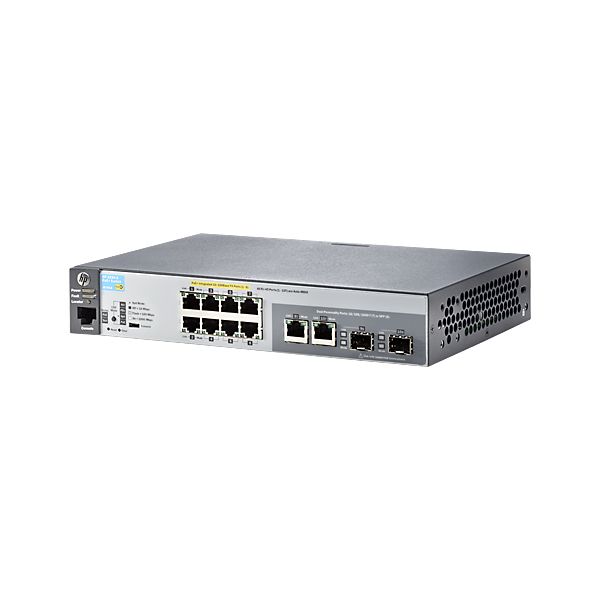

Aruba, a Hewlett Packard Enterprise company Aruba 2530 8 PoE+, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack-montage, 1U

Nog slechts 9 beschikbaar

Fabrikant HP
MPN J9780A#ABB
EAN 0886112459352

Aruba, a Hewlett Packard Enterprise company Aruba 2530 8 PoE+ Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Grijs

The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, optional 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet.

The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management.

Features

Cost-Effective, Reliable and Secure Access Layer Switches
- The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
- Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.
- Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks.
- Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
- Delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.

Security and Quality of Service (QoS)
- The Aruba 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.
- Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.
- Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).
- Defend your IPv6 network with DHCPv6 Protection.

Simple Deployment and Management
- The Aruba 2530 Switch Series supports a choice of management interfaces with Web GUI, command-line interface (CLI), and SNMP with either console or micro USB ports.
- Quiet operation with fanless and variable speed fan models.
- Flexible deployment with wall, table, and rack mounting options.
- TR-069 delivers zero touch deployment for devices with dynamic IP addresses and on private networks.

Single View of the Network
- The Aruba 2530 Switch Series supports ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Airwave Network Management software to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
MIB-ondersteuning

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Fast Ethernet (10/100)

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX
Port mirroring
Ja
Full duplex
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Rate limiting
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Auto-sensing
Ja
VLAN=ondersteuning
Ja

Data-uitwisseling

Switchingcapaciteit*
5,6 Gbit/s
Throughput
4,1 Mpps
MAC-adrestabel*
16000 entries
Latentie (10-100 Mbps)
1,3 µs
Latentie (1 Gbps)
1,3 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
1,5 MB

Beveiliging

DHCP-functies
DHCP server
Access Control List (ACL)
Ja
SSH/SSL support
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Grijs

Prestatie

Virtual stacking (units)
16
Type processor
Ja
Frequentie van processor
800 MHz
Type geheugen
DDR3-SDRAM
Intern geheugen
256 MB
Flash memory
128 MB

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
76,7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Totaal Power over Ethernet (PoE)-budget
67 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 90 procent

Gewicht en omvang

Breedte
254 mm
Diepte
159,5 mm
Hoogte
44,5 mm
Gewicht
910 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
