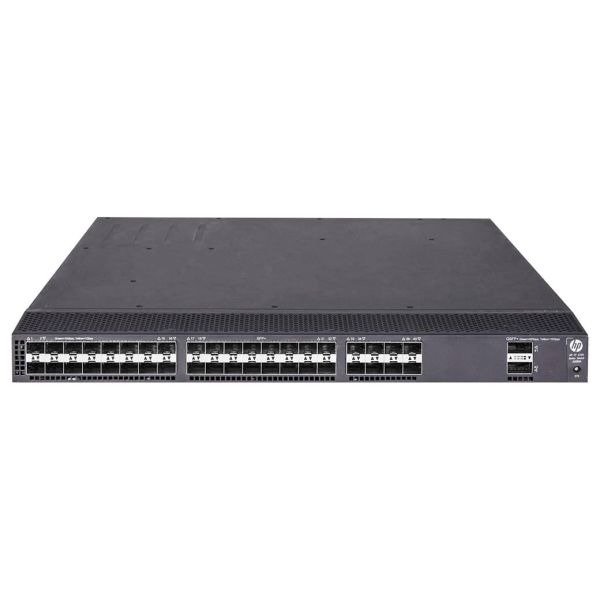

Hewlett Packard Enterprise FlexFabric 5700-40XG-2QSFP+, Managed, L3, Geen, Rack-montage, 1U

Nog slechts 8 beschikbaar

Fabrikant HP
MPN JG896A
EAN 0888182312902

Hewlett Packard Enterprise FlexFabric 5700-40XG-2QSFP+ Managed L3 Geen 1U Zwart

The HP FlexFabric 5700 Switch Series provides an open door for expanding your enterprise network by adding capacity with local switching and L2/L3 support. Take advantage of IRF enhancements for spine/leaf configurations, to simplify network management and expand server connectivity. Resilience and ease of management come hand–in-hand with the FlexFabric 5700.

While IRF reduces management complexities by up to 88%, it also delivers <50msec convergence time. You can rely on the FlexFabric 5700 to lower TCO with up to a 25% lower cost than competing devices.

Features
Expand Your Data Center Network with Confidence

The HP FlexFabric 5700 Switch Series expands your enterprise network by adding local switching capacity for better scalability, so that you can support more customers.

Up to thirty (30) HP FlexFabric switches can be added to the network and managed by one Controlling Bridge (CB) switch improving server connectivity. (future)

The FlexFabric 5700 Switch Series gives you choices that fit your budget and environment by offering 1/10GbE ports supporting SFP and BASE-T with 10/40GbE uplinks.

High-Performance Data Center Switching

The HP FlexFabric 5700 Switch Series delivers 960Gbps switching capacity for the most demanding applications.

Provides local switching and participates in the network unlike competing port multiplexers.

Low latency, under 1.5us 10GbE latency, provides improved throughput and fewer lost packets.

Business Agility and Resilience with Comware 7

The HP FlexFabric 5700 Switch Series delivers IRF <50msec convergence time enabling faster application response time.

The 5700 Switch Series supports spine/leaf IRF to enhance network agility with ECMP and faster convergence.

In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.

Simplicity and Lower TCO

The HP FlexFabric 5700 Switch Series simplifies switch management by up to 88% with IRF.

No extra hidden costs with simple one license per switch for all OS features.

Up to 25% lower cost than competing port multiplexers for lower TCO.

Automate tedious tasks with software defined network (SDN) and reclaim wasted resources.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja

Poorten & interfaces

Type basis-switching RJ-45 Ethernet-poorten*
Geen
Aantal moduleslots SPF+
40
Aantal GSFP+-moduleslots
2
Console port
RJ-45
Aantal USB 2.0-poorten
1

Netwerk

10G support*
Ja
Port mirroring
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Aantal VLANs
4096

Data-uitwisseling

Switchingcapaciteit*
960 Gbit/s
Throughput
714,2 Mpps
MAC-adrestabel*
128000 entries
Latentie (10 Gbps)
1,5 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
9 MB

Beveiliging

IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS

Protocollen

Beheerprotocollen
SNMP, Telnet, FTP, NTP, SNTP

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Zwart

Prestatie

Virtual stacking (units)
9
Intern geheugen
2048 MB
Flash memory
512 MB
Geluidsniveau
70,6 dB

Energie

Vermogenstoevoer inclusief*
Nee
Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
162 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent

Gewicht en omvang

Breedte
440 mm
Diepte
460 mm
Hoogte
43,7 mm
Gewicht
10 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
