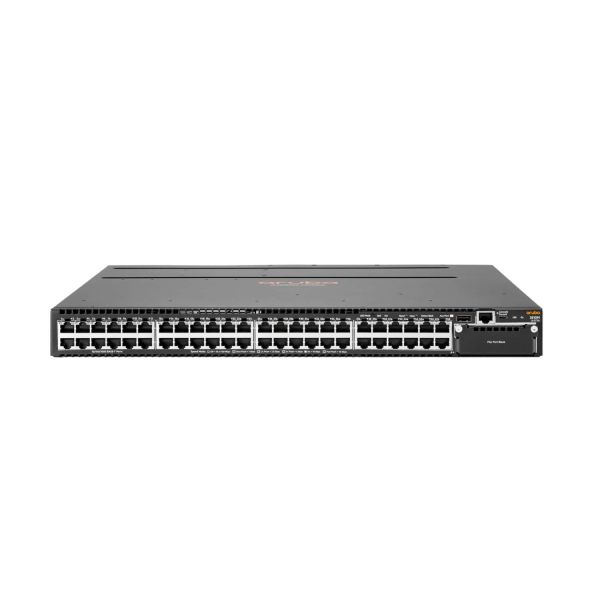

Hewlett Packard Enterprise Aruba 3810M 48G 1-slot Switch Beheerde netwerkswitch L3 Gigabit Ethernet (10/100/1000) 1U Zwart (JL072A)

Schrijf de eerste review over dit product en win een coupon van € 100,-!

€ 4.025,00
excl. BTW (€ 4.870,25 incl. BTW)
(Laagste Prijsgarantie?)
Partnummer:

JL072A

EAN: 0888793596586 Beschikbaarheid: Bel of chat voor info
Omschrijving

Aruba 3810M 48G 1-slot Switch

Bestel Nu >>
Toon in vergelijking
Toevoegen aan favorieten
Liever leasen?

Kies uw leasetermijn: maanden

Productinformatie

Hewlett Packard Enterprise Aruba 3810M 48G 1-slot Switch. Switch type: Beheerde netwerkswitch, Switch-laag: L3. Type basis-switching RJ-45 Ethernet-poorten: Gigabit Ethernet (10/100/1000), Aantal basis-switching RJ-45 Ethernet-poorten: 48, Console port: RJ-45. Full duplex. MAC-adrestabel: 64000 entries, Switchingcapaciteit: 320 Gbit/s. Netwerkstandaard: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u. Rack-montage, Vormfactor: 1U

The Aruba 3810 Switch Series provides performance and resiliency for the mobile-first campus network. Based on a powerful ProVision ASIC and ready for high-speed APs with HPE Smart Rate multi-gigabit Ethernet, the Aruba 3810 delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity.

The Aruba 3810 has comprehensive Layer 3 features, right size deployment models, and is SDN ready with OpenFlow support.

Features

Performance and Power for the Mobile-First Campus
- The Aruba 3810 Switch Series is an industry leading mobile campus access solution for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high speed 802.11ac devices, the Aruba 3810 will prepare your network for tomorrow.
- HPE Smart Rate ports support multi-gigabit Ethernet speeds (1, 2.5, 5, and 10 gigabit Ethernet) on existing cabling for cost-effective and convenient network upgrades with no rip and replace of cabling.
- Delivers consistent wired and wireless user experience by supporting unified management tools such as ClearPass Policy Manager and AirWave Network Management. Provides optimal configuration automatically when connected to Aruba APs for PoE priority, VLAN configuration, and rogue AP containment.
- Rightsizes deployment and back haul capacity with modular 10GbE and 40GbE uplinks. Full PoE+ provisioning on 48-ports. Dual, redundant, hot-swappable power supplies and innovative backplane stacking technology delivers resiliency and scalability in a convenient 1U form factor.
- Advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, robust QoS and policy-based routing are included with no software licensing. With support for OpenFlow, the Aruba 3810 is ready to take advantage of SDN applications such as HPE Network Visualizer, Optimizer, and Protector Applications.

Resiliency and High Availability You Can Depend On
- The Aruba 3810 Switch Series is designed with a ProVision ASIC designed to enable the mobile campus with SDN optimizations, very low latency, increased packet buffering, and adaptive power consumption.
- Backplane stacking technology delivers high-performance stacking with up to 336 Gb/s of stacking throughput and increased resiliency. Up to ten Aruba 3810 switches can be stacked in a ring topology or up to five can be stacking in a mesh topology.
- Dual hot-swappable power supplies provide power and allow swapping of modules on the fly to reduce impact on the network availability. More performance with selectable queue configurations and associated memory buffering that best meets requirements of prioritized network applications.
- Selectable queue configurations enables increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications.
- Uninterrupted switching and routing for improved application experience and enhanced L3 availability. Supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.

Trusted Security with Unmatched Quality of Service
- The Aruba 3810 Switch Series includes robust security and quality of services features to build a mobile campus network that meets corporate policies and compliance requirements.
- Flexible traffic controls, such as policy-based routing, QoS, and ACLs, to manage end-to-end application priorities for improved user experience.
- Enhanced security and policy-driven application authentication with concurrent 802.1X, MAC and Web Authentication modes. Prevent unwanted traffic with advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection.
- Powerful multilevel-access security controls, such as role-based management, configurable password complexity, RADIUS/TACACS+, and SSH for improved security and control change management access.
- Industry standard MACsec provides switch-to-switch link level security.

Simplify with Unified Management
- The Aruba 3810 Switch Series supports ClearPass Policy Manager to provide unified and consistent policy between wired and wireless users. Simplified implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies on the network.
- Supports AirWave Network Management software to provide common platform for zero-touch provisioning, management, and monitoring for wired and wireless network devices.
- RMON, XRMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
- Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Ontwerp

Rack-montage Ja
Kleur van het product Zwart
Formaat 1U

Beheerfuncties

Switch type Managed network switch
Web-gebaseerd management Ja
Quality of Service (QoS) Ja
Switch-laag L3

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten 48
Type basis-switching RJ-45 Ethernet-poorten Gigabit Ethernet (10/100/1000)
Console port RJ-45
Koperen ethernetbekabelingstechnologie 10BASE-T,100BASE-TX,1000BASE-T

Netwerk

Netwerkstandaard IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Full duplex Ja
10G support Ja
Auto-sensing Ja
VLAN=ondersteuning Ja
DHCP server Ja
IP routing Ja
Verbindingsaggregatie Ja
Auto MDI/MDI-X Ja
Spanning tree protocol Ja

Data-uitwisseling

MAC-adrestabel 64000 entries
Switchingcapaciteit 320 Gbit/s
Throughput 190,5 Mpps
Latentie (1 Gbps) 2,8 µs
Latentie (10 Gbps) 1,8 µs
Jumbo Frames ondersteuning Ja

Beveiliging

Access Control List (ACL) Ja

data storage devices

Stapelbaar Ja
Type processor Ja
Packet buffergeheugen 13,5 MB
Type geheugen DDR3 SDRAM
Intern geheugen 2048 MB
Virtual stacking (units) 10
Frequentie van processor 1000 MHz

data storage devices

Power over Ethernet (PoE) Nee

Eisen aan de omgeving

Temperatuur, in bedrijf 0 - 45 °C
Temperatuur bij opslag -40 - 70 °C
Relatieve luchtvochtigheid, in bedrijf 15 - 95 procent
Luchtvochtigheid bij opslag 15 - 90 procent

Gewicht en omvang

Breedte 442,5 mm
Diepte 431,3 mm
Hoogte 43,9 mm
Gewicht 5,99 kg
