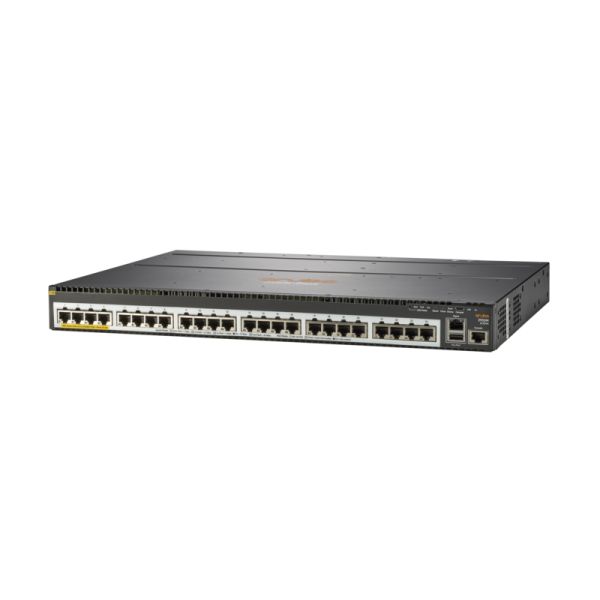

Aruba, a Hewlett Packard Enterprise company Aruba 2930M 24 Smart Rate PoE+ 1-slot, Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage, 1U

Bel of chat voor info

Fabrikant HP
MPN JL324A
EAN 0190017071299

Aruba, a Hewlett Packard Enterprise company Aruba 2930M 24 Smart Rate PoE+ 1-slot Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

The Aruba 2930M Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks. The 2930M delivers performance and value with support for static, RIP and Access OSPF routing, 10GbE and 40GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G support*
Ja
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Ja
IP routing
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Rate limiting
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
Auto-sensing
Ja
VLAN=ondersteuning
Ja

Data-uitwisseling

Switchingcapaciteit*
320 Gbit/s
Throughput
112 Mpps
MAC-adrestabel*
32768 entries
Latentie (1 Gbps)
3,1 µs
Latentie (10 Gbps)
3,4 µs
Packet buffergeheugen
12,38 MB

Beveiliging

DHCP-functies
DHCP server
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
SNMP
SSH/SSL support
Ja
Authenticatie
MAC-gebaseerde authenticatie, Webgebaseerde authenticatie

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Zwart

Prestatie

Type processor
Ja
Frequentie van processor
1016 MHz
Type geheugen
DDR3-SDRAM
Intern geheugen
1024 MB
Flash memory
4096 MB

Energie

Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroomverbruik (typisch)
513 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Totaal Power over Ethernet (PoE)-budget
860 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Warmtedissipatie
150 BTU/h

Gewicht en omvang

Breedte
442,5 mm
Diepte
324,3 mm
Hoogte
43,9 mm
Gewicht
4,5 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
