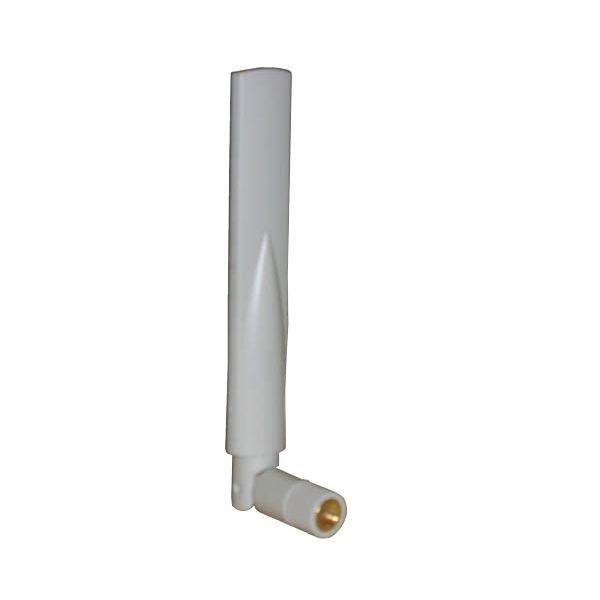

Hewlett Packard Enterprise AP-ANT-1W antenne Omnidirectionele antenne RP-SMA 5,8 dBi

Hewlett Packard Enterprise AP-ANT-1W, 5,8 dBi, 2.4-2.5/4.9-5.875 GHz, 3,8 dBi, 5,8 dBi, 50 Ohm, Omnidirectionele antenne

Niet op voorraad

Fabrikant HP
MPN JW009A
EAN 0190017019093
€ 50,00 excl. BTW

Hewlett Packard Enterprise AP-ANT-1W antenne Omnidirectionele antenne RP-SMA 5,8 dBi

The AP-ANT-1 is a high-performance, tri-band, omnidirectional, indoor antenna ideally designed for multifunction access points that require an omnidirectional coverage pattern for WLAN service delivery or air monitoring on both the 2.4 GHz and 5 GHz bands. AP-ANT-1 has an articulating mount, providing flexibility in deployment and direct connection to Aruba access points with an onboard RP-SMA connector. The AP-ANT-1 is the preferred choice for multi-purpose service deployment or wireless intrusion prevention (WIP). It is offered in two colors to match the colors of Aruba indoor access points: the AP-ANT-1B antenna in off-white, and the AP-ANT-1W antenna in white.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Frequentieband*
2.4-2.5/4.9-5.875 GHz
Antenne versterking (2.4 GHz)
3,8 dBi
Antenna versterking (5 GHz)
5,8 dBi
Impedantie
50 Ohm
Antenne versterkingsniveau (max)*
5,8 dBi

Kenmerken

Soort antenne*
Omnidirectionele antenne
Aansluiting antenne*
RP-SMA
Polarisatie
Lineaire polarisatie
Voltage Standing Wave Ratio (VSWR)
<2.0:1
Ultraviolet (UV)-bestendig
Ja
Bedoeld voor
Binnen
Materiaal behuizing
Acrylonitrielbutadieenstyreen (ABS)

Kenmerken

Kleur van het product
Wit

Energie

Vermogensverbruik (max)
2 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 55 °C

Gewicht en omvang

Breedte
19 mm
Diepte
39 mm
Hoogte
127 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85177100
