Hewlett Packard Enterprise AP-ANT-40 antenne Omnidirectionele antenne RP-SMA 5 dBi

Hewlett Packard Enterprise AP-ANT-40, 5 dBi, 2.4-2.5/4.9-6.0 GHz, 4 dBi, 5 dBi, 50 Ohm, Omnidirectionele antenne

Niet op voorraad

Fabrikant HP
MPN JW017A
EAN 0190017019178
€ 370,00 excl. BTW

Hewlett Packard Enterprise AP-ANT-40 antenne Omnidirectionele antenne RP-SMA 5 dBi

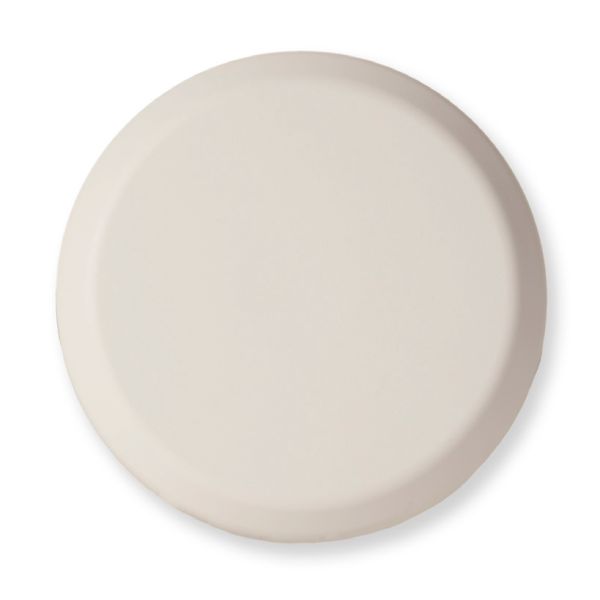

AP-ANT-40 is a dual band 4-element omni-directional antenna for use in Wi-Fi MIMO applications. Housed in a compact, low-profile and discrete plastic enclosure, the antenna can be mounted to a variety of ceilings. Each of the four MIMO antenna elements is connected to the Aruba Access Point via a low-loss, plenum rated coaxial pigtail.

The radiation patterns are uniform and symmetrical, providing high level signal density into defined coverage zones, and optimum coverage conditions for MIMO performance.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Frequentieband*
2.4-2.5/4.9-6.0 GHz
Antenne versterking (2.4 GHz)
4 dBi
Antenna versterking (5 GHz)
5 dBi
Impedantie
50 Ohm
Antenne versterkingsniveau (max)*
5 dBi

Kenmerken

Soort antenne*
Omnidirectionele antenne
Aansluiting antenne*
RP-SMA
Geslacht connector
Mannelijk
Polarisatie
Dubbele polarisatie
Voltage Standing Wave Ratio (VSWR)
<2.0:1
Snoerlengte
0,75 m
Soort kabel
RG58

Kenmerken

Montage
Plafond
Bedoeld voor
Binnen
Materiaal behuizing
Acrylonitrielbutadieenstyreen (ABS)
Kleur van het product
Wit

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-30 - 70 °C

Gewicht en omvang

Hoogte
32 mm
Diameter
17,8 cm
Gewicht
410 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85177100
