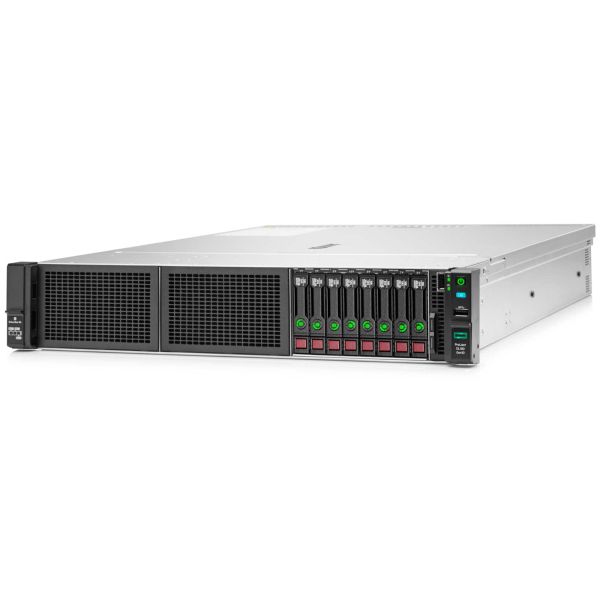

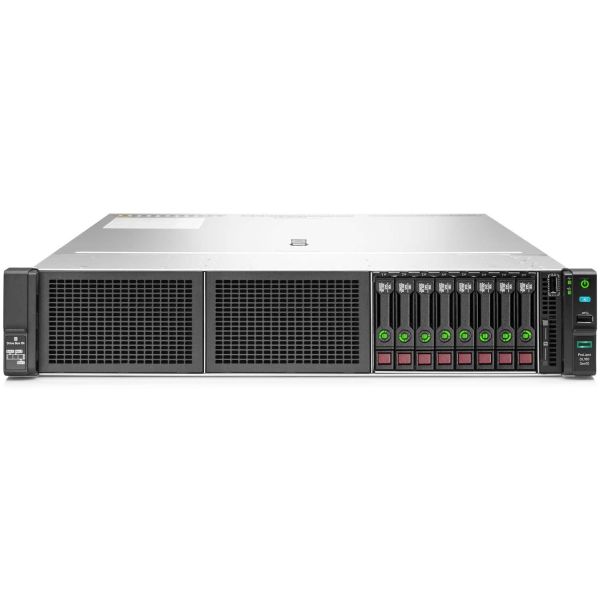

HPE ProLiant DL180 Gen10 server Rack (2U) Intel® Xeon® Silver 4208 2,1 GHz 16 GB DDR4-SDRAM 500 W

HPE ProLiant DL180 Gen10, 2,1 GHz, 4208, 16 GB, DDR4-SDRAM, 500 W, Rack (2U)

Bel of chat voor info

Fabrikant HP
MPN P19564-B21
EAN 4549821306602
€ 2.362,00 excl. BTW

HPE ProLiant DL180 Gen10 server Rack (2U) Intel® Xeon® Silver 4208 2,1 GHz 16 GB DDR4-SDRAM 500 W

Is maximizing your business reach and goal a challenge you are facing because your IT is not keeping pace with your data growth? The secure HPE ProLiant DL180 Gen10 server delivers on scalability, performance, and reliability thus making it the ideal platform for businesses ready to run on-premises and hybrid cloud applications. These businesses need the right mix of compute and storage, enabling them to achieve their most important goals.

What's new
- Eight (8) LFF drive chassis supporting SAS/SATA HDDs with max 32 TB storage
- Enhanced iLO 5 security features such as locking server hardware configuration, iLO security dashboard and workload performance advisor
- Available aggressively priced SMB offer models regionally released as “Smart Buy Express” in the U.S. and Canada, “Top Value” in Europe, and “Intelligent Buy” in Asia Pacific.

Features

Dense Storage at Optimal Performance for Web Infrastructure and Service Providers
- The flexible design provides choice of options and ability to scale. It is configured to meet the new standard of growing data center needs. The server supports Intel® Xeon® Scalable Processor series, up to eight cores (maximum 24) with 16 DDR4 2666 MHz (256 GB maximum).
- Two PCIe 3.0 slots and HPE iLO 5, UEFI and legacy boot mode, along with the standard HPE Dynamic Smart Array S100i. You have a choice of HPE Flexible Smart Array or HPE Smart HBA controllers for performance or additional features.
- 500W multi-output, up to 94% efficiency (Titanium), Flexible Slot PS; Standard 3-3-3 warranty; HPE Secure Encryption.

Comprehensive and Cost-effective Management
- HPE ProLiant DL180 Gen10 server offers comprehensive firmware management with HPE iLO5 that includes install sets created by Smart Update Manager (SUM). It has the ability to create multiple rollback sets and ability to view and delete scheduled jobs at no additional licensing cost.
- Scalable and reliable model to run multi-workload for better business performance and growing Data center needs. Cost optimization, reliability and expandability for cloud and virtualization requirements. Setting security standards making it the most secure Industry standard server portfolio.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processorfamilie*
Intel® Xeon® Silver
Processorgeneratie
2e generatie Intel® Xeon® schaalbaar
Processormodel*
4208
Frequentie van processor*
2,1 GHz
Maximale turbofrequentie van processor
3,2 GHz
Aantal processorkernen
8
Processor cache
11 MB
Chipset moederbord
Intel C622
Aantal geïnstalleerde processoren
1
Thermal Design Power (TDP)
85 W
Processor cache type
L3
Max. aantal SMP-processoren
2
Processor socket
LGA 3647 (Socket P)
Processor lithografie
14 nm
Processor aantal threads
16
Processor operating modes
64-bit
Codenaam processor
Cascade Lake
Tcase
78 °C
Maximaal intern geheugen ondersteund door processor
1,02 TB
Geheugentypen ondersteund door processor
DDR4-SDRAM
Klokgeheugen-snelheden ondersteund door processor
2400 MHz
Execute Disable Bit
Ja
Maximaal aantal PCI Express-lijnen
48
Verpakkingsgrootte processor
76.0 x 56.5 mm
Ondersteunde instructie sets
AVX-512
Schaalbaarheid
2S
Ingebouwde opties beschikbaar
Nee

Geheugen

Intern geheugen*
16 GB
Intern geheugentype*
DDR4-SDRAM
Geheugenslots
16x DIMM
Kloksnelheid geheugen
2933 MHz
Maximum intern geheugen*
1,02 TB

Opslagmedia

Maximale opslagcapaciteit*
52 TB
HDD interface
SATA
Maximum aantal HDD's per behuizing
8
Ondersteunde HDD-groottes
2.5"
RAID support*
Ja
Soorten RAID
0, 1, 5, 10
Hot-plug ondersteuning
Ja
Soort optische drive*
Nee

Grafisch

Ingebouwde grafische adapter
Ja

Netwerk

Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
2
VGA (D-Sub)poort(en)
1

Uitbreidingsmodules

PCI Express slots versie
3.0

Design

Type behuizing*
Rack (2U)
Kleur van het product
Zwart, Zilver
Rack-montage
Ja

Prestatie

Beheer op afstand
iLO 5 ASIC
Trusted Platform Module (TPM)
Ja

Software

Inclusief besturingssysteem*
Nee
Compatibele besturingssystemen*
Windows Server 2019 Windows Server 2016 VMware vSphere 6.0 U3 VMware vSphere 6.5 U3 VMware vSphere 6.7 U3 Red Hat Enterprise Linux (RHEL) 7.6 (w/ Kbase) Red Hat Enterprise Linux (RHEL) 8.0 SUSE Linux Enterprise Server 12 SP4 SUSE Linux Enterprise Server 15 SP1

Processor speciale functies

Enhanced Intel SpeedStep Technology
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® Turbo Boost Technology
2.0
Intel® AES New Instructions (Intel® AES-NI)
Ja
Intel® Trusted Execution Technology
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® TSX-NI
Ja
Intel® 64
Ja
Intel® Virtualization Technology (VT-x)
Ja
ARK ID processor
193390

Energie

Redundante voeding*
Ja
Netvoeding*
500 W

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100

Gewicht en omvang

Breedte
445,4 mm
Diepte
634,7 mm
Hoogte
87,3 mm
