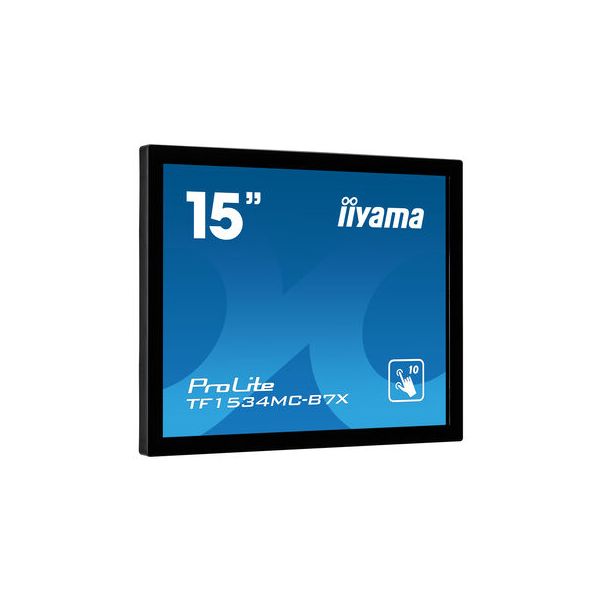

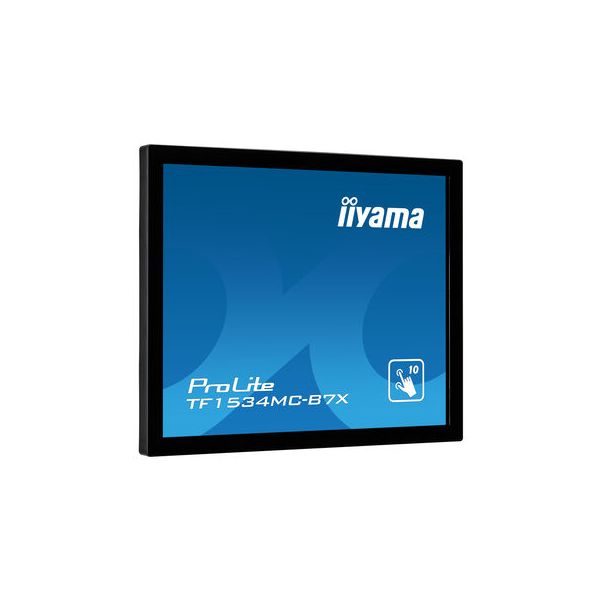

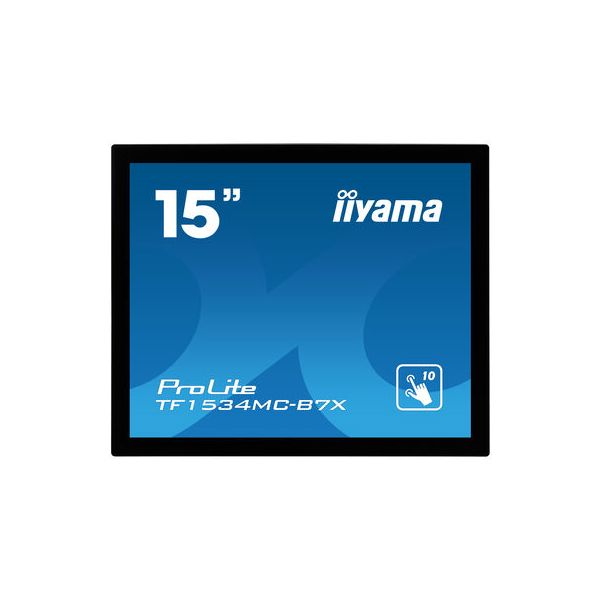

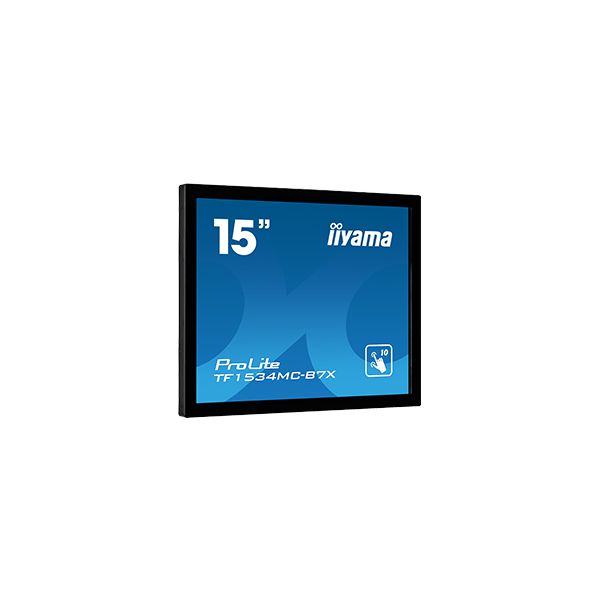

iiyama TF1534MC-B7X computer monitor 38,1 cm (15") 1024 x 768 Pixels XGA LED Touchscreen Multi-gebruiker Zwart

iiyama TF1534MC-B7X, 38,1 cm (15"), 1024 x 768 Pixels, XGA, LED, 8 ms, Zwart

4 op voorraad (nu besteld = maandag verzonden)

Fabrikant Iiyama
MPN TF1534MC-B7X
EAN 4948570118380
€ 395,00 excl. BTW
4,5 · 4,0 · Gratis verzending vanaf €250
Omschrijving

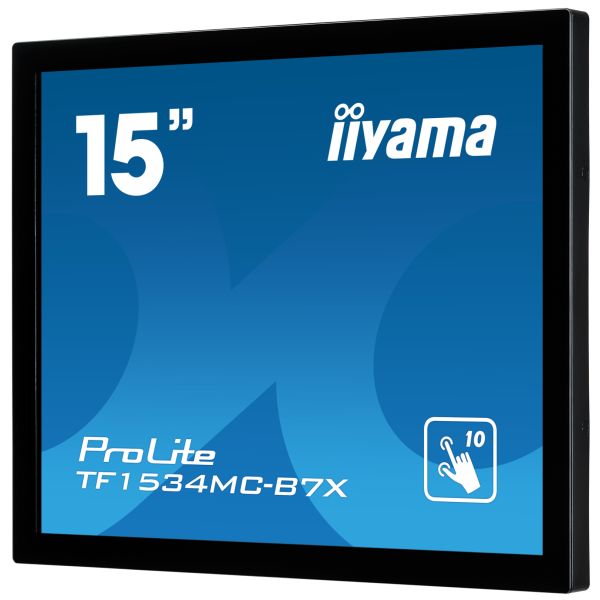

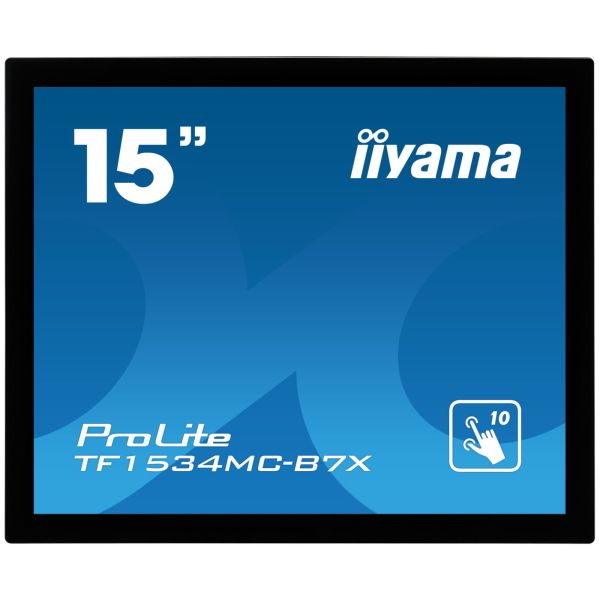

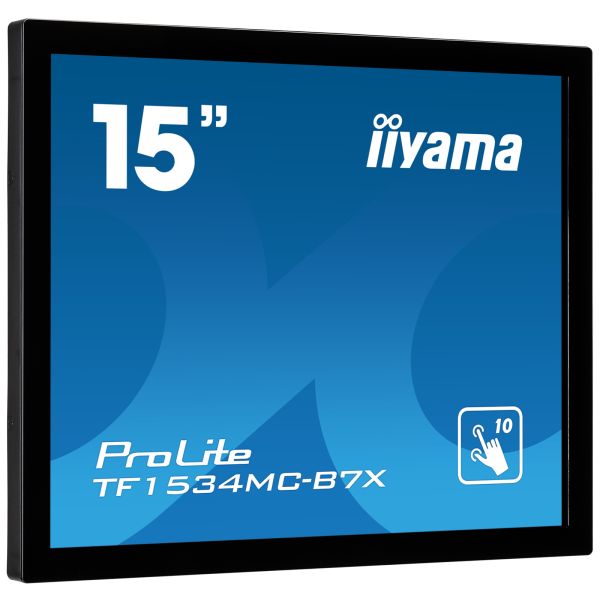

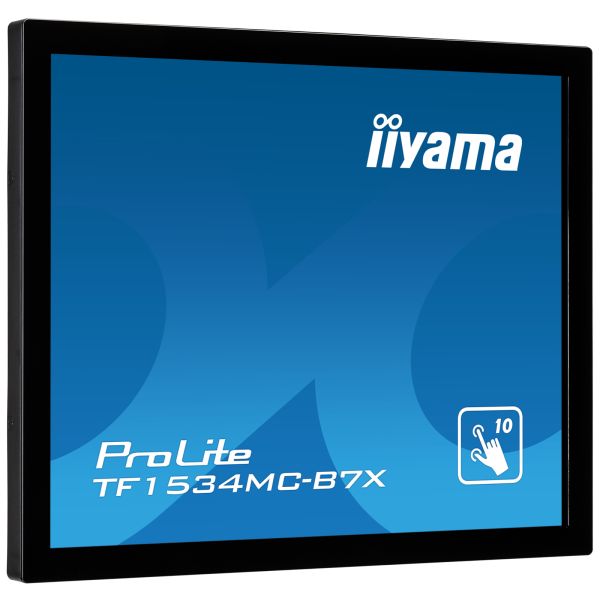

The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

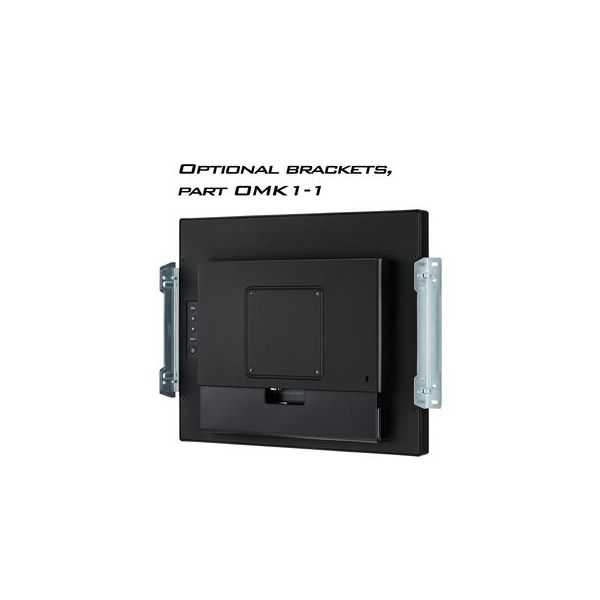

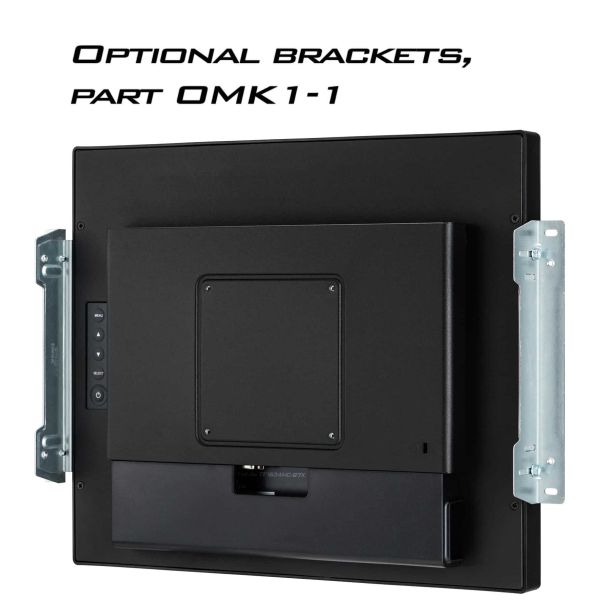

OPEN FRAME BRACKETS
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld foutBedankt voor uw melding!

Er ging iets mis. Probeer het opnieuw.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
38,1 cm (15")
Resolutie*
1024 x 768 Pixels
HD type*
XGA
Oorspronkelijke beeldverhouding*
4:3
Display technologie*
LED
Soort paneel*
TN
Touchscreen*
Ja
Touch screen type
Multi-gebruiker
Touchscreen technologie
Projected capacitive-systeem
Touch technologie
Multi-touch
Hoeveelheid simultane aanraakpunten
10
Helderheid (typisch)
370 cd/m²
Helderheid
330 cd/m²
Responstijd*
8 ms
Beeldscherm vorm*
Flat
Typische contrastverhouding*
700:1
Kijkhoek, horizontaal
170°
Kijkhoek, verticaal
160°
Beeldscherm, aantal kleuren*
16,2 miljoen kleuren
Pixel pitch
0,297 x 0,297 mm
Frequentiebereik horizontaal
31,4 - 60 kHz
Grootte beeld (horizontaal)
30,4 cm
Grootte beeld (verticaal)
22,8 cm
Schermdiameter in centimeters
38 cm
Hardheid oppervlak
7H

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee
Palm negeren
Ja

Design

Kleur van het product*
Zwart
Rand voorzijde
Zwart

Poorten & interfaces

USB Touch port
Ja
VGA (D-Sub)poort(en)
1
HDMI*
Ja
Aantal HDMI-poorten
1
Aantal DisplayPorts
1
HDCP
Ja

Ergonomie

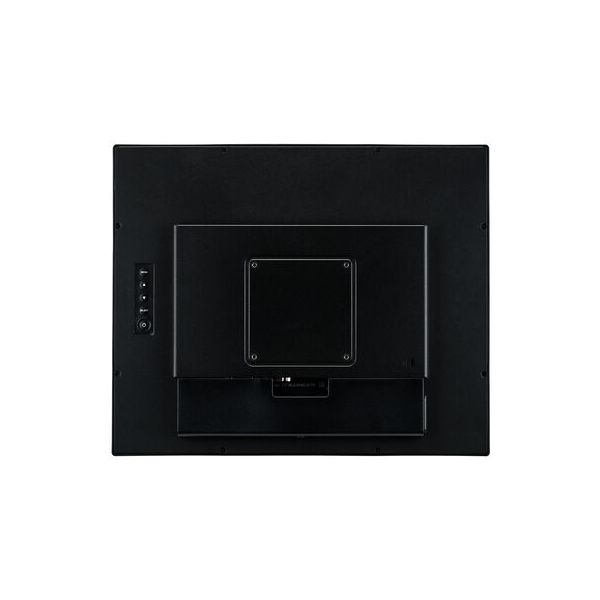

VESA-montage*
Ja
Paneelmontage-interface
100 x 100 mm
Ophangsysteem voor aan de muur
Ja
On Screen Display (OSD)
Ja
On Screen Display (OSD)-talen
Traditioneel Chinees, Duits, Engels, Spaans, Frans, Italiaans, Japans
Aantal On Screen Display-talen
7

Energie

Energie-efficiëntieklasse (SDR)*
E
Energie-efficiëntieklasse (HDR)*
Niet beschikbaar

Energie

Energieverbruik (SDR) per 1000 uur*
10 kWu
Stroomverbruik (typisch)*
9 W
Stroomverbruik (in standby)*
1,5 W
Stroomverbruik (indien uit)
0,3 W
AC-adapter, uitgangsspanning
12 V
Soort voeding
Extern
Energie-efficiëntieschaal
A tot G

Gewicht en omvang

Breedte apparaat (met standaard)
337,5 mm
Diepte apparaat (met standaard)
44,5 mm
Hoogte apparaat (met standaard)
265,5 mm
Gewicht (met standaard)
2,7 kg
Breedte ( zonder voet )
337,5 mm
Diepte ( zonder voet )
44,5 mm
Hoogte (zonder voet )
265,5 mm
Gewicht (zonder voet)
2,7 kg

Verpakking

Breedte verpakking
435 mm
Diepte verpakking
165 mm
Hoogte verpakking
335 mm
Gewicht verpakking
4 kg

Inhoud van de verpakking

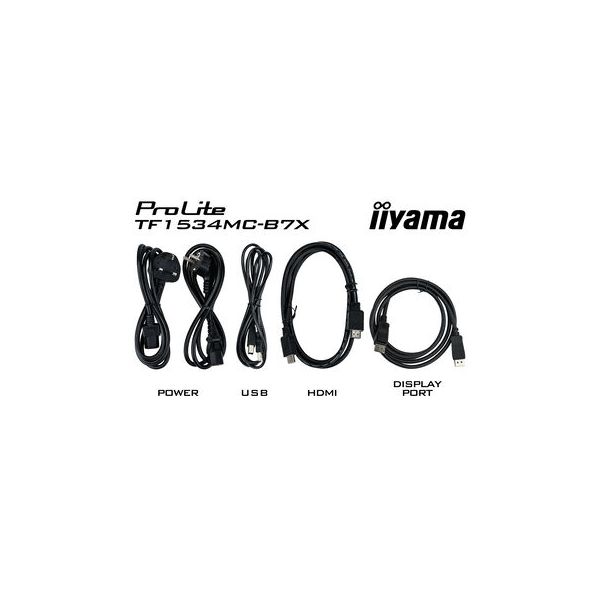

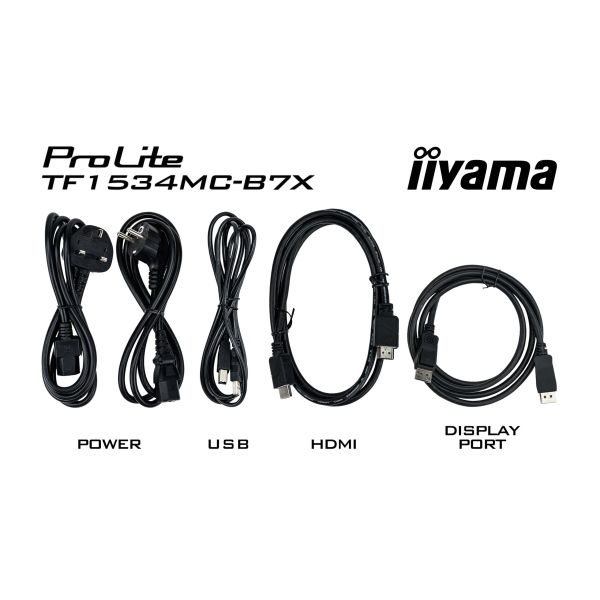

Meegeleverde kabels
AC, USB, HDMI, DisplayPort
Snelstartgids
Ja

Duurzaamheid

Duurzaamheidscertificaten
ErP

Overige specificaties

Internationale veiligheidscode (IP)
IP65
Compatibele besturingssystemen
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Inclusief AC-adapter
Ja
Effectieve beelddiameter
304 x 228 mm
Gebruikersknoppen
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Helderheid
330 cd/m²
Verpakkingsinhoud
AC adapter
Actief weergavegebied (b x h)
304 x 228 mm
Touch-methode
stylus, finger, glove (latex)
Gewicht
2,7 kg
Hoogte
265,5 mm
Breedte
337,5 mm
Diepte
44,5 mm

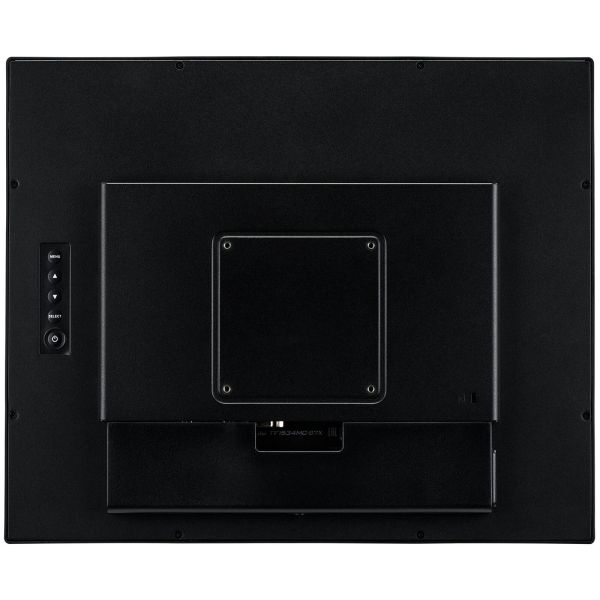

Bedieningspaneel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Certificaten van naleving
CE, cULus, EAC, REACH, RoHS, WEEE

Logistieke gegevens

Producten per pallet
78 stuk(s)
Pallet nettobreedte
91 cm
Pallet nettodiepte
198,7 cm
Pallet nettohoogte
114 cm
Code geharmoniseerd systeem (HS)
85285210
