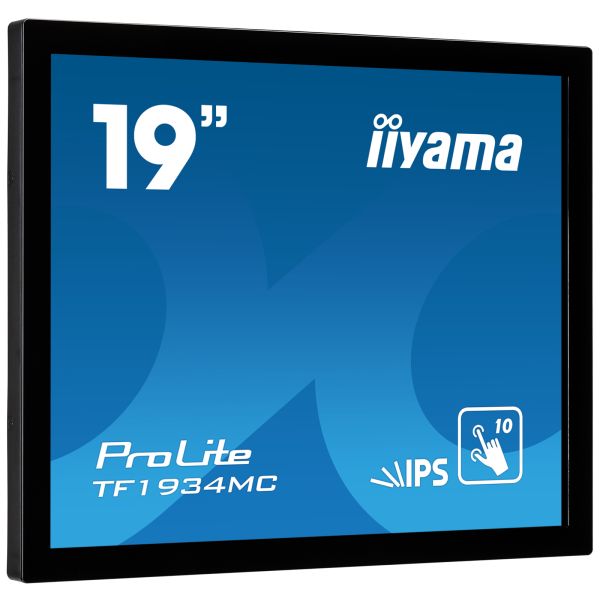

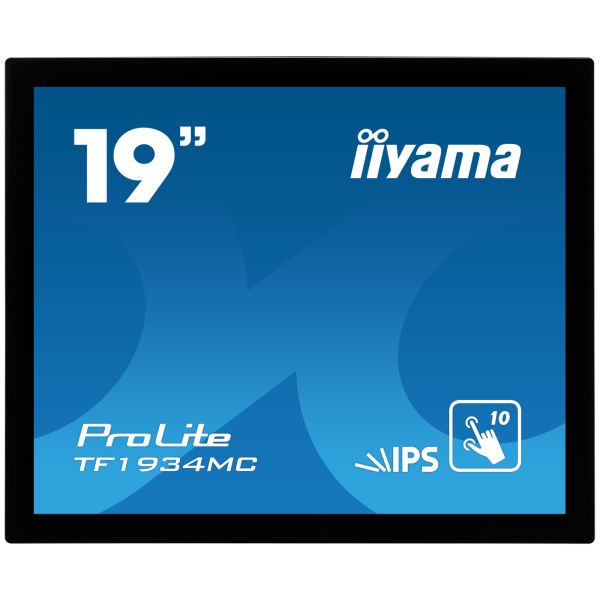

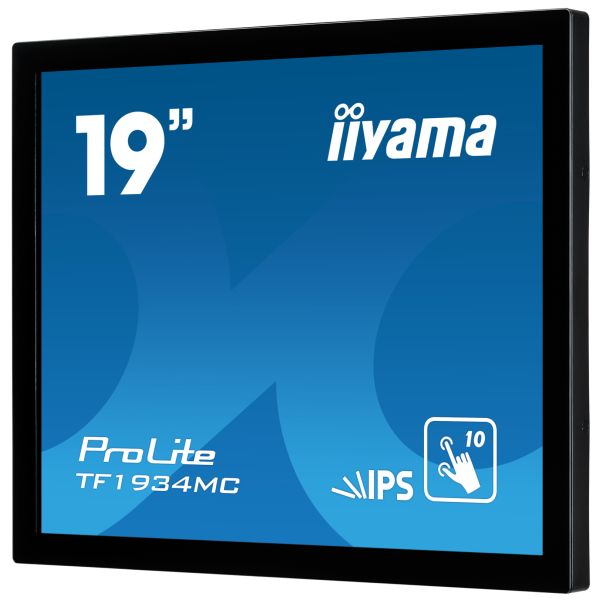

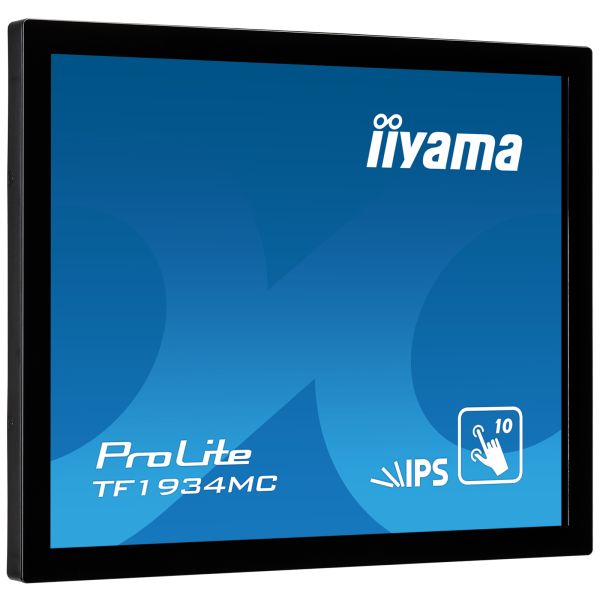

iiyama ProLite TF1934MC-B7X computer monitor 48,3 cm (19") 1280 x 1024 Pixels SXGA LED Touchscreen Zwart

iiyama ProLite TF1934MC-B7X, 48,3 cm (19"), 1280 x 1024 Pixels, SXGA, LED, 14 ms, Zwart

20+ op voorraad (nu besteld = maandag verzonden)

Fabrikant Iiyama
MPN TF1934MC-B7X
EAN 4948570118403
€ 447,00 excl. BTW
4,5 · 4,0 · Gratis verzending vanaf €250
Omschrijving
10pt touch Open Frame monitor with IPS panel and touch through glass function
ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
  • anti-fingerprint coating, touch through-glass
  • IP65 (front)
  • OSD key lock
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld foutBedankt voor uw melding!

Er ging iets mis. Probeer het opnieuw.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
48,3 cm (19")
Resolutie*
1280 x 1024 Pixels
HD type*
SXGA
Oorspronkelijke beeldverhouding*
5:4
Display technologie*
LED
Soort paneel*
IPS
LED backlight
Ja
Backlight type
LED
Touchscreen*
Ja
Touchscreen technologie
Projected capacitive-systeem
Touch technologie
Multi-touch
Hoeveelheid simultane aanraakpunten
10
Helderheid (typisch)
350 cd/m²
Helderheid
315 cd/m²
Responstijd*
14 ms
Type reactietijdmeting
GTG (Gray to Gray)
Beeldscherm vorm*
Flat
Ondersteunde grafische resoluties
1280 x 1024 (SXGA)
Beeldverhouding
5:4
Typische contrastverhouding*
1000:1
Contrast ratio (dynamisch)
1000:1
Kijkhoek, horizontaal
178°
Kijkhoek, verticaal
178°
Beeldscherm, aantal kleuren*
16,7 miljoen kleuren
Pixel pitch
0,294 x 0,294 mm
Frequentiebereik horizontaal
31,4 - 80 kHz
Grootte beeld (horizontaal)
37,6 cm
Grootte beeld (verticaal)
30,1 cm
Grootte beeld (diagonaal)
48 cm
Schermdiameter in centimeters
48 cm

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee
Palm negeren
Ja

Multimedia

Ingebouwde microfoon
Nee
Ingebouwde camera*
Nee

Design

Kleur van het product*
Zwart
Rand voorzijde
Zwart
Glas dikheid
6 mm

Poorten & interfaces

USB Touch port
Ja
VGA (D-Sub)poort(en)
1
HDMI*
Ja
Aantal HDMI-poorten
1
Aantal DisplayPorts
1
HDCP
Ja

Ergonomie

VESA-montage*
Ja
Paneelmontage-interface
100 x 100 mm
Ophangsysteem voor aan de muur
Ja

Ergonomie

On Screen Display (OSD)
Ja
On Screen Display (OSD)-talen
Traditioneel Chinees, Duits, Engels, Spaans, Frans, Italiaans, Japans
Aantal On Screen Display-talen
7

Energie

Energie-efficiëntieklasse (SDR)*
F
Energieverbruik (SDR) per 1000 uur*
18 kWu
Stroomverbruik (typisch)*
21 W
Stroomverbruik (in standby)*
1,5 W
Stroomverbruik (indien uit)
1,5 W
AC-adapter, uitgangsspanning
12 V
Soort voeding
Extern
Energie-efficiëntieschaal
A tot G

Gewicht en omvang

Breedte apparaat (met standaard)
416 mm
Diepte apparaat (met standaard)
46,5 mm
Hoogte apparaat (met standaard)
344 mm
Gewicht (met standaard)
4,4 kg
Breedte ( zonder voet )
416 mm
Diepte ( zonder voet )
46,5 mm
Hoogte (zonder voet )
344 mm
Gewicht (zonder voet)
4,4 kg

Verpakking

Breedte verpakking
16,4 mm
Diepte verpakking
1,8 mm
Hoogte verpakking
13,5 mm

Inhoud van de verpakking

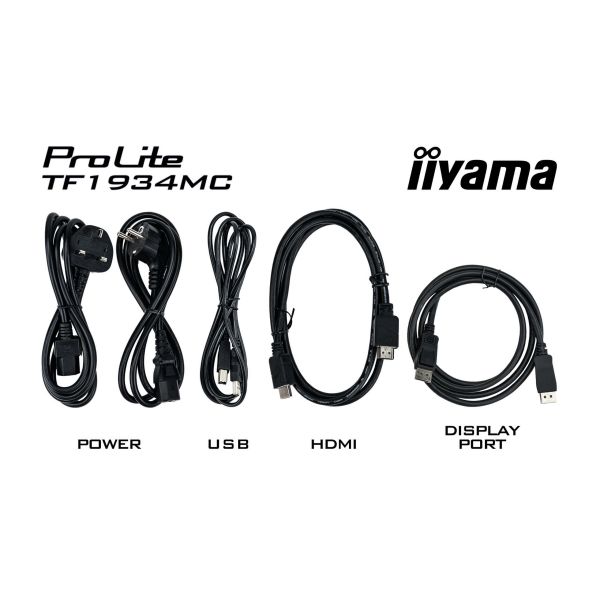

Meegeleverde kabels
AC, USB, HDMI, DisplayPort
Snelstartgids
Ja

Duurzaamheid

Duurzaamheidscertificaten
ErP

Overige specificaties

Internationale veiligheidscode (IP)
IP65
Compatibele besturingssystemen
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Inclusief AC-adapter
Ja
Effectieve beelddiameter
376,5 x 301,1 mm
Helderheid
315 cd/m²
Verpakkingsinhoud
AC adapter, Touch Panel Driver Disk (CD-ROM)
Actief weergavegebied (b x h)
376,5 x 301,1 mm
Gewicht
4,4 kg
Hoogte
344 mm
Gebruikersknoppen
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Touch-methode
stylus, finger, glove (latex)
Breedte
416 mm
Diepte
46,5 mm
Bedieningspaneel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Certificaten van naleving
CE, cULus, EAC, REACH, RoHS, WEEE
Type meegeleverde AC-adapter
AC
Certificering
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210
