iiyama TF2438MSC-B1 computer monitor 60,5 cm (23.8") 1920 x 1080 Pixels Full HD LED Touchscreen Zwart

iiyama TF2438MSC-B1, 60,5 cm (23.8"), 1920 x 1080 Pixels, Full HD, LED, 5 ms, Zwart

20+ op voorraad (levering verwacht binnen 3 dagen)Dit item is op voorraad in een centraal Europees magazijn. De levertijd is ~3 werkdagen.

Fabrikant Iiyama
MPN TF2438MSC-B1
EAN 4948570121113
€ 464,00 excl. BTW
4,5 · 4,0 · Gratis verzending vanaf €250
Omschrijving

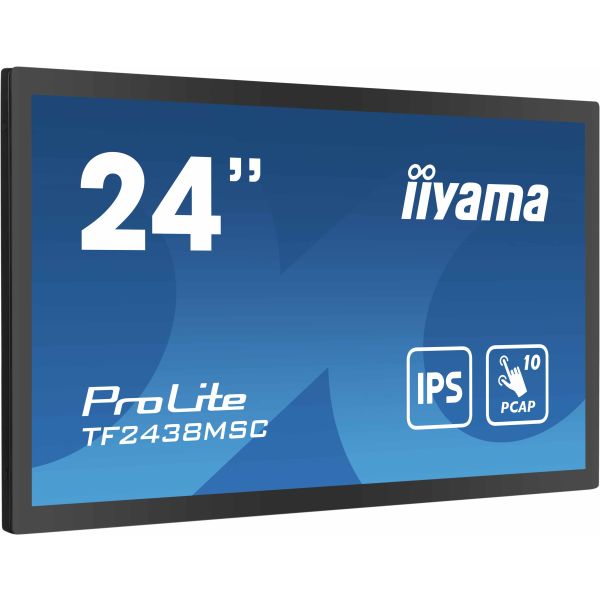

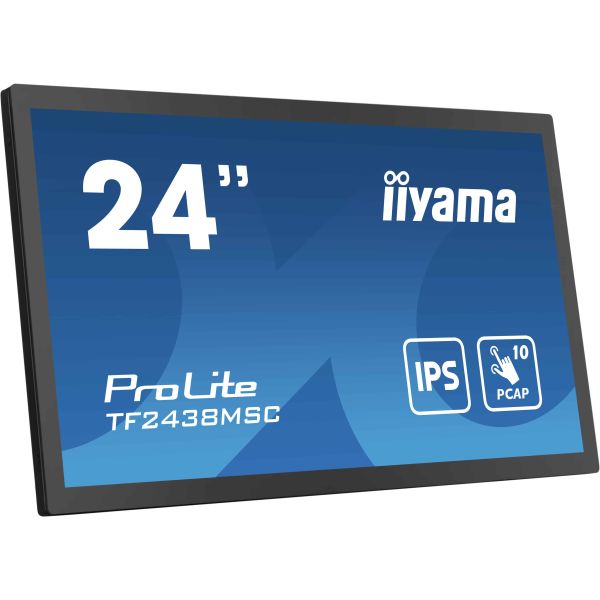

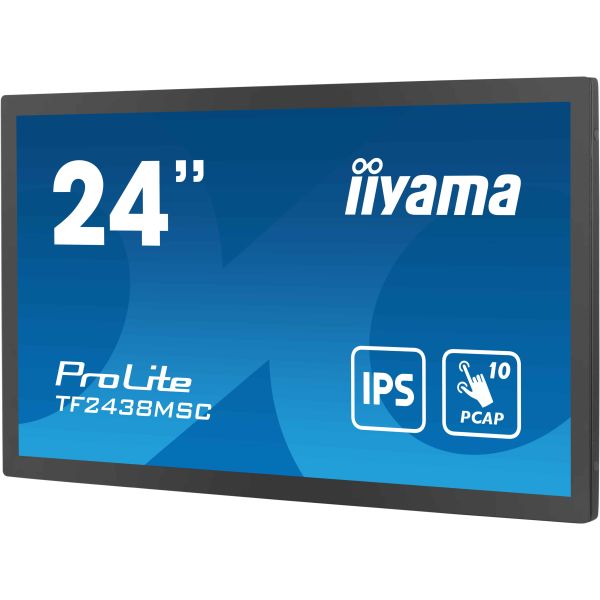

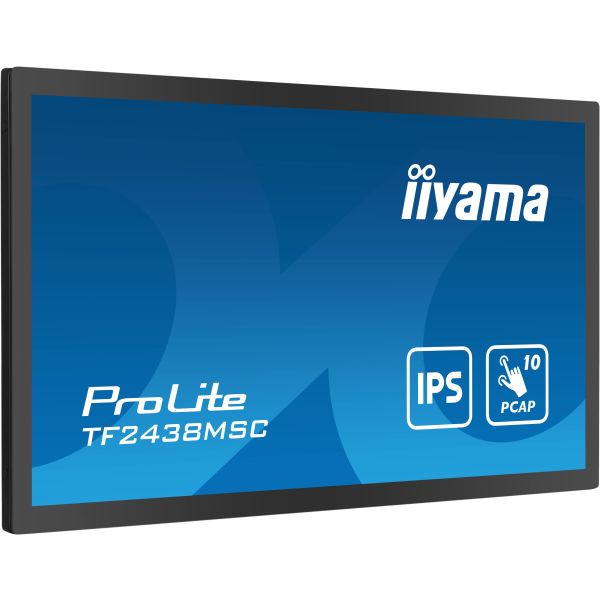

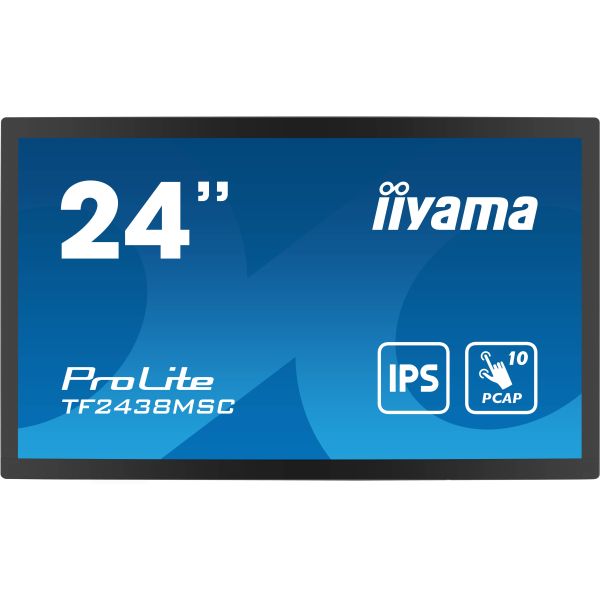

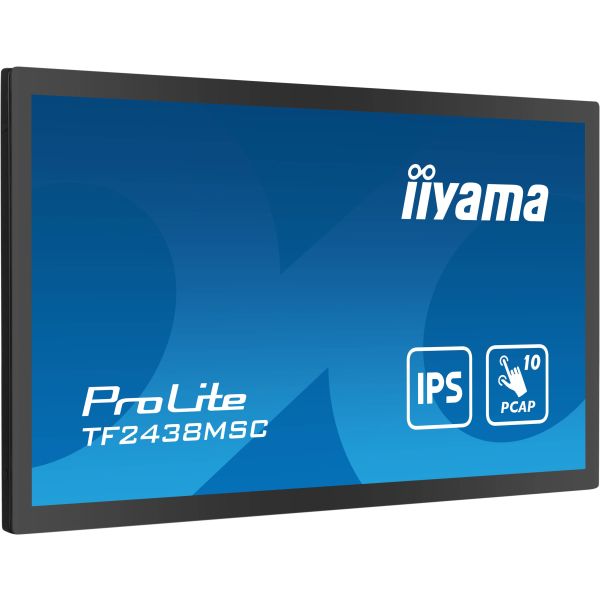

PROLITE TF2438MSC-B1
23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing

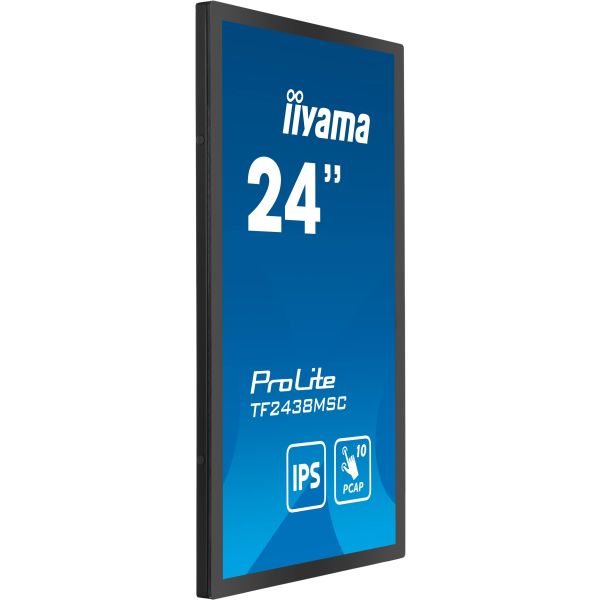

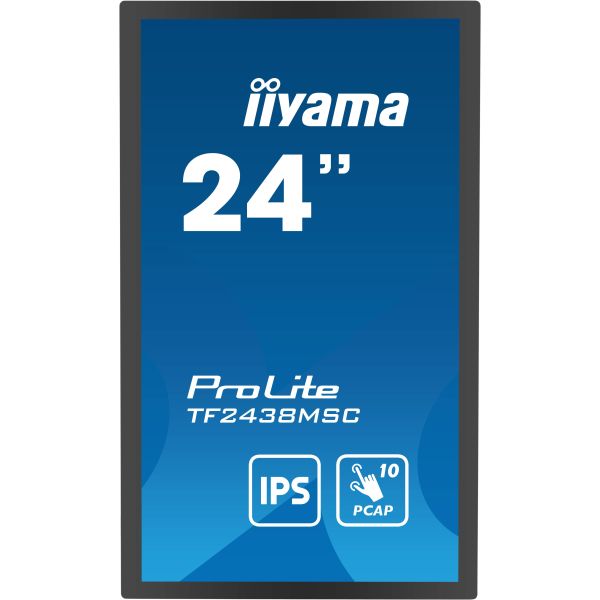

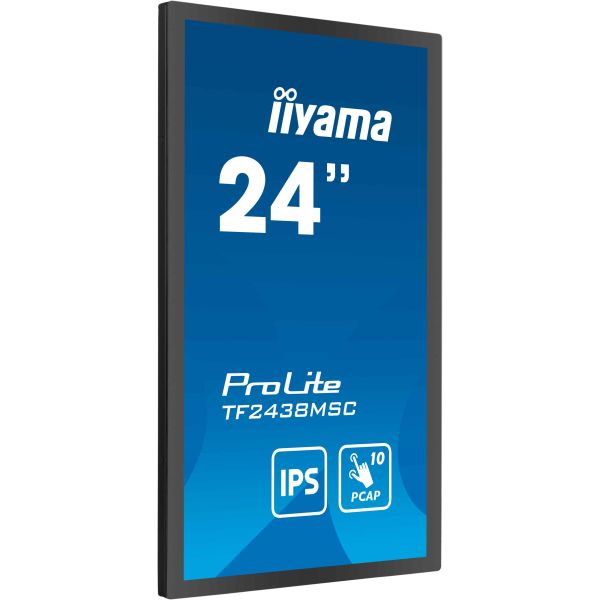

The Full HD (1920x1080) Open Frame monitor ProLite TF2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.

OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.

OPEN FRAME LFD

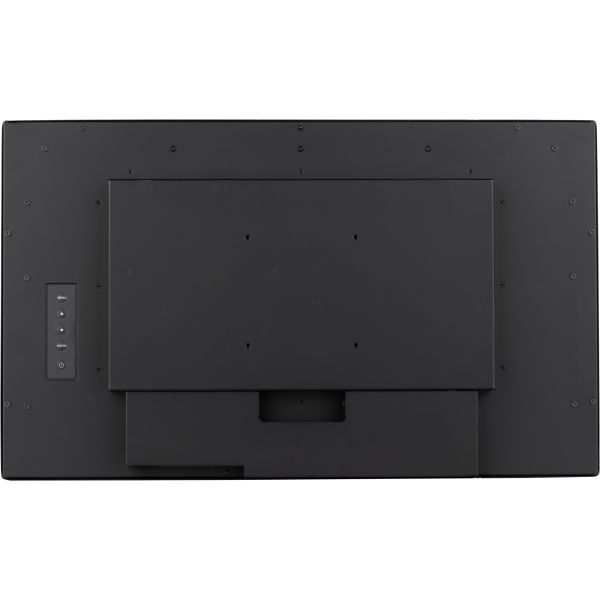

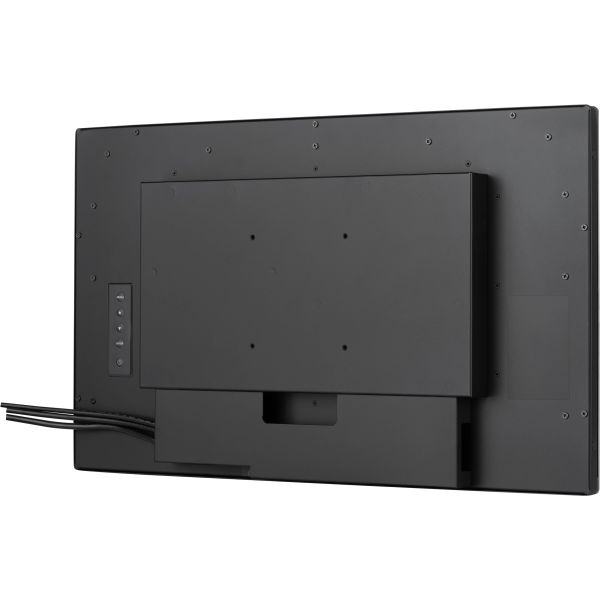

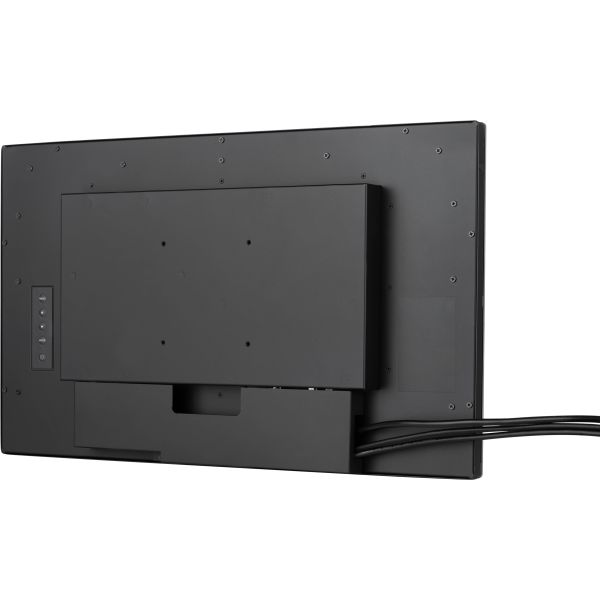

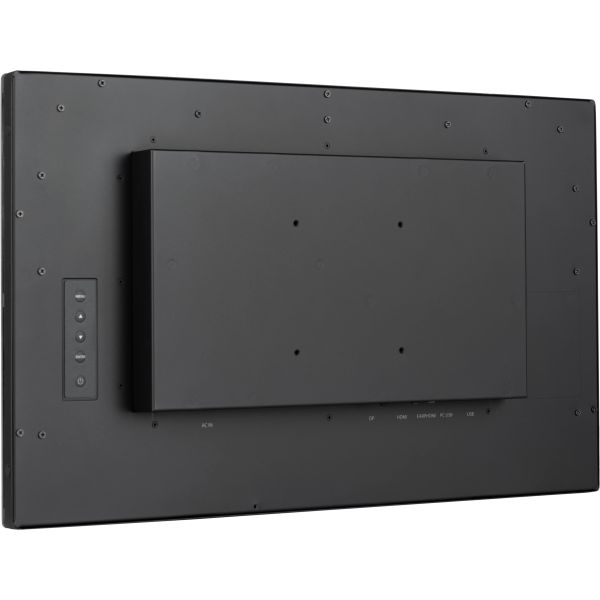

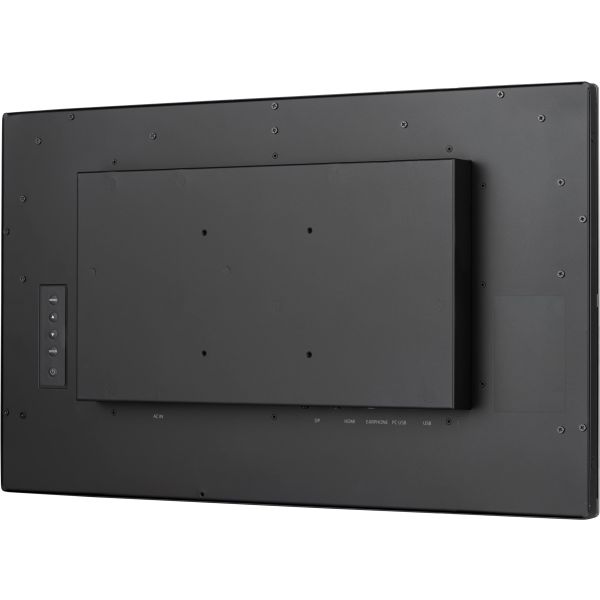

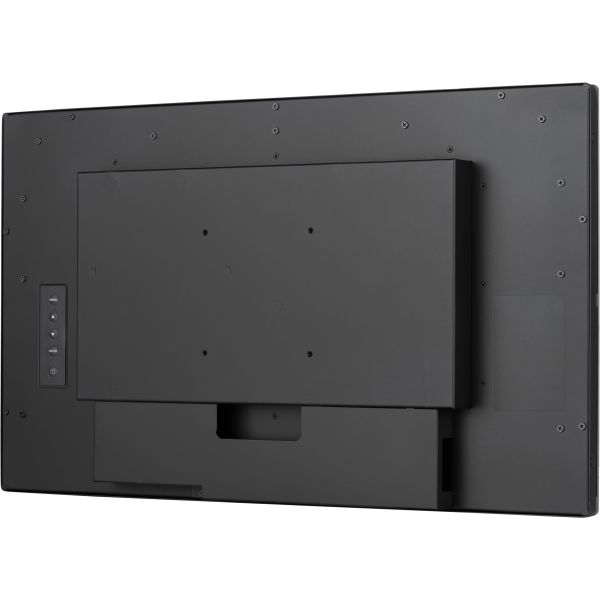

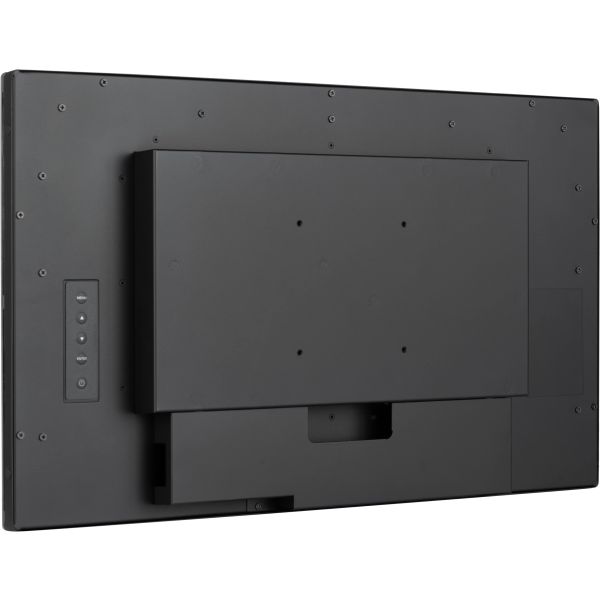

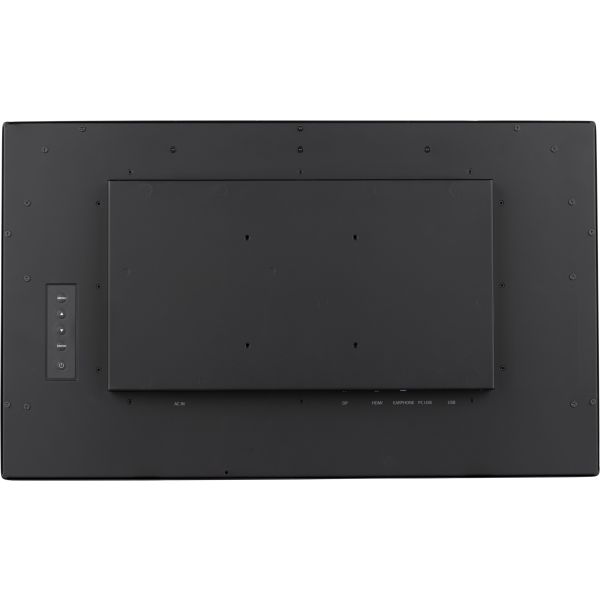

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.

IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
  • OPTICAL BONDED PCAP
  • OPEN FRAME LFD
  • IPS TECHNOLOGY
  • SCRATCH RESISTANCE
  • SPEAKERS
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten. Meld foutBedankt voor uw melding!

Er ging iets mis. Probeer het opnieuw.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
60,5 cm (23.8")
Resolutie*
1920 x 1080 Pixels
HD type*
Full HD
Oorspronkelijke beeldverhouding*
16:9
Display technologie*
LED
Soort paneel*
IPS
Touchscreen*
Ja
Touchscreen technologie
Projected capacitive-systeem
Hoeveelheid simultane aanraakpunten
10
Helderheid (typisch)
600 cd/m²
Helderheid
525 cd/m²
Responstijd*
5 ms
Type reactietijdmeting
GTG (Gray to Gray)
Typische contrastverhouding*
1000:1
Maximale refresh snelheid*
60 Hz
Kijkhoek, horizontaal
178°
Kijkhoek, verticaal
178°
Beeldscherm, aantal kleuren*
16,7 miljoen kleuren
Pixel pitch
0,275 x 0,275 mm
Frequentiebereik horizontaal
30 - 83 kHz
Grootte beeld (horizontaal)
52,7 cm
Grootte beeld (verticaal)
29,6 cm
Schermdiameter in centimeters
60,5 cm
Hardheid oppervlak
7H

Prestatie

Knippervrije technologie
Ja
Laag-blauw-licht-technologie
Ja

Multimedia

Aantal luidsprekers
2
Gemiddeld vermogen
4 W
Ingebouwde luidsprekers*
Ja

Design

Kleur van het product*
Zwart
Rand voorzijde
Zwart
Glas dikheid
3,6 mm

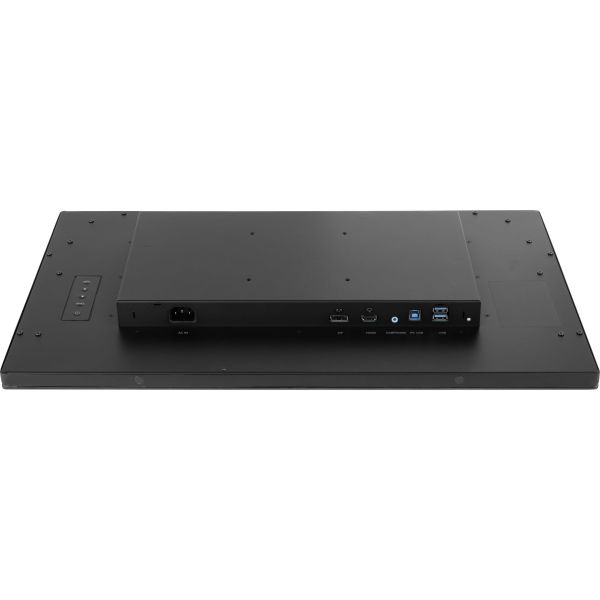

Poorten & interfaces

USB-versie
3.2 Gen 1 (3.1 Gen 1)
Ingebouwde USB-hub*
Ja
Versie USB-hub
3.2 Gen 1 (3.1 Gen 1)
Aantal downstreampoorten
2
USB Touch port
Ja
DVI-poort
Nee
Aantal HDMI-poorten
1
Aantal DisplayPorts
1
HDCP
Ja

Netwerk

Wifi
Nee
Ethernet LAN
Nee

Ergonomie

VESA-montage*
Ja
Paneelmontage-interface
100 x 100 mm
Verbeterd kabelbeheer
Ja

Ergonomie

On Screen Display (OSD)
Ja
On Screen Display (OSD)-talen
Traditioneel Chinees, Duits, Engels, Frans, Japans, Nederlands, Pools, Russisch

Energie

Energie-efficiëntieklasse (SDR)*
E
Energie-efficiëntieklasse (HDR)*
Niet beschikbaar
Energieverbruik (SDR) per 1000 uur*
15,4 kWu
Stroomverbruik (typisch)*
22 W
Stroomverbruik (in standby)*
1,5 W
Stroomverbruik (indien uit)
0,3 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50/60 Hz
Soort voeding
Intern

Gewicht en omvang

Breedte apparaat (met standaard)
561,5 mm
Diepte apparaat (met standaard)
47,5 mm
Hoogte apparaat (met standaard)
337 mm
Gewicht (met standaard)
6,5 kg
Bezel breedte (zijkant)
1,73 cm
Bezel breedte (bovenkant)
2,03 cm
Bezel breedte (onderkant)
2,03 cm

Verpakking

Breedte verpakking
635 mm
Diepte verpakking
115 mm
Hoogte verpakking
409 mm
Gewicht verpakking
8,1 kg
USB kabel lengte
1,5 m

Inhoud van de verpakking

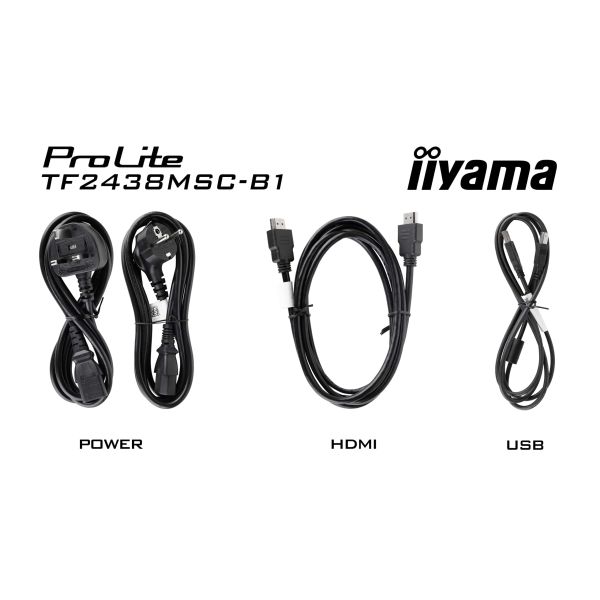

Meegeleverde kabels
AC, USB, HDMI
Snelstartgids
Ja
HDMI-kabellengte
1,5 m
Lengte stroomkabel
1,8 m

Duurzaamheid

Duurzaamheidscertificaten
ErP

Overige specificaties

Internationale veiligheidscode (IP)
IP1X
Compatibele besturingssystemen
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Ondersteuning voor plaatsing
Binnen
Helderheid
525 cd/m²
Type processor
Nee
Actief weergavegebied (b x h)
527 x 296,5 mm
Aantal USB-aansluitingen
2
Gewicht
6,5 kg
Hoogte
337 mm
Gebruikersknoppen
Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Touch-methode
stylus, finger, glove (latex)
Breedte
561,5 mm
Diepte
47,5 mm
Bedieningspaneel

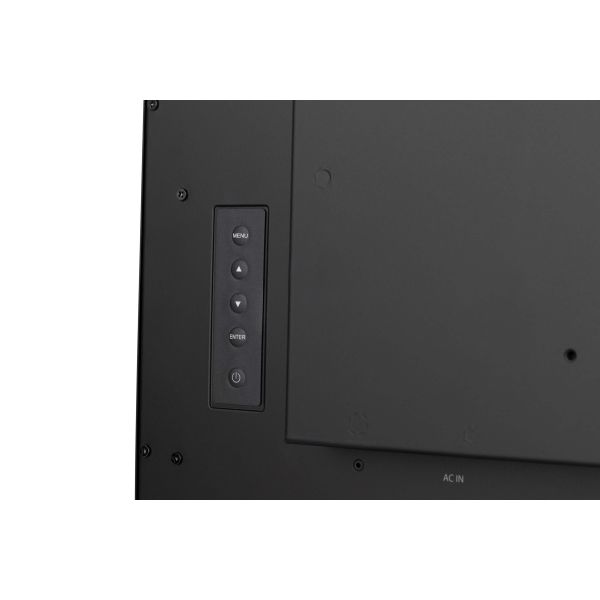

Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
Certificaten van naleving
CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Mean time between failures (MTBF)
50000 uur
Certificering
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
