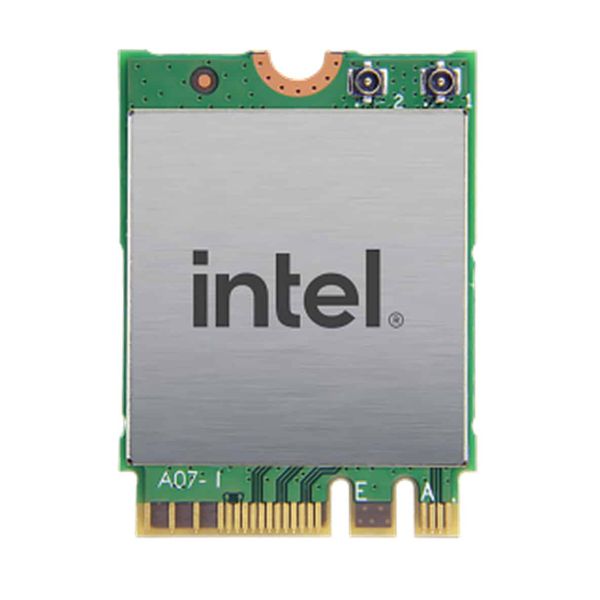

Intel Wi-Fi 6 AX200 (Gig+) Intern WLAN 2400 Mbit/s
Intel® Wi-Fi 6 solutions enable the fastest wireless speeds for PCs, more responsive performance, with enhanced security and reliability, especially in dense environments. Benefits include fast uploads and downloads, lower latency and longer battery life compared to solutions supporting 802.11ac. Experience a dramatically improved connected experience at home, work, or on the go.
The new Intel® Wi-Fi 6 AX201 (Gig+) adapter supports 2x2 Wi-Fi 6 technology, including new features such as UL and DL OFDMA and 1024QAM, delivering increased network capacity as well as Bluetooth® 5.2 support.
The new Intel® Wi-Fi 6 AX201 (Gig+) adapter supports 2x2 Wi-Fi 6 technology, including new features such as UL and DL OFDMA and 1024QAM, delivering increased network capacity as well as Bluetooth® 5.2 support.
- Wifi
- MU-MIMO
- Intern
- Ondersteunt Linux
- Supported Under vPro
- Bluetooth
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Draadloos
Hostinterface*
PCI Express
Interface*
WLAN
Netwerk
Maximale overdrachtssnelheid van gegevens*
2400 Mbit/s
Netwerkstandaard*
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w
Wifi
Ja
Wifi-band
Dual-band (2.4 GHz / 5 GHz)
Wifi-standaard
Wi-Fi 6 (802.11ax)
Wi-Fi-standaarden
Wi-Fi 6 (802.11ax)
Ondersteunde beveiligingsalgoritmen
64-bit WEP, 128-bit AES, 128-bit WEP, 256-bit AES, AES-CCMP, AES-GCMP, EAP-AKA, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, TKIP, WPA2, WPA3, WPS
MU-MIMO
Ja
Bluetooth
Ja
Bluetooth-versie
5
Design
Component voor*
PC/notebook
Intern*
Ja
Soort antenne
2x2
Pakket afmeting
22 x 30 x 2.4 mm
Minimale systeemeisen
Compatibele besturingssystemen
Windows 10, 64-bit*|Linux*
Ondersteunt Windows
Windows 10 x64
Ondersteunt Linux
Ja
Andere ondersteundende systemen
ChromeOS
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 80 °C
Gewicht en omvang
Breedte
22 mm
Diepte
30 mm
Hoogte
2,4 mm
Gewicht
2,83 g
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Overige specificaties
Maximale temperatuur (in bedrijf)
80 °C
Supported Under vPro
Ja
Soort aansluiting
Wi-Fi(PCIe), BT(USB)
Lanceringsdatum
Q2'19
URL productsamenvatting
https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/wi-fi-6-ax200-module-brief.pdf
Type product
Wireless
Status
Launched
Processorfamilie
Intel Wi-Fi 6 Products
Export Control Classification Number (ECCN)
5A992CN3
Commodity Classification Automated Tracking System (CCATS)
G165483
Compliance
FIPS, FISMA
Productserie
Intel® Wireless Products
Productcodenaam
Cyclone Peak
