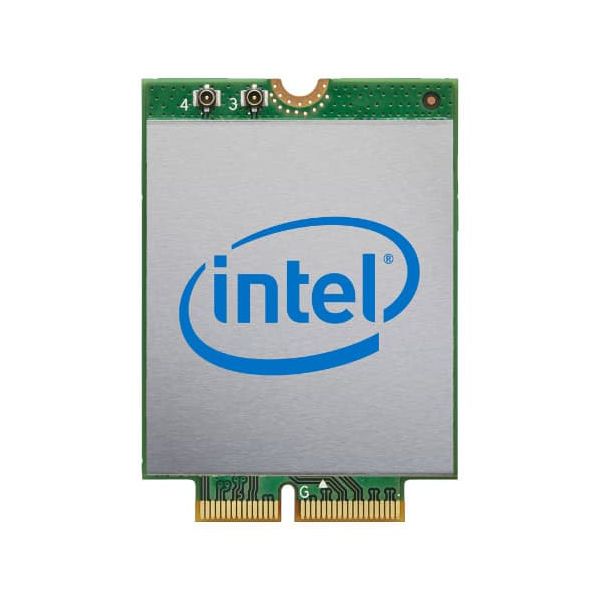

Intel Wi-Fi 6E AX210 Intern WLAN 2400 Mbit/s
MU-MIMO
Multi-user MIMO (MU-MIMO) is a set of multiple-input and multiple-output technologies for wireless communication, in which a set of users or wireless terminals, each with one or more antennas, communicate with each other.
Orthogonal Frequency-Division Multiple Access (OFDMA)
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user version of the popular orthogonal frequency-division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low-data-rate transmission from several users.
Multi-user MIMO (MU-MIMO) is a set of multiple-input and multiple-output technologies for wireless communication, in which a set of users or wireless terminals, each with one or more antennas, communicate with each other.
Orthogonal Frequency-Division Multiple Access (OFDMA)
Orthogonal Frequency-Division Multiple Access (OFDMA) is a multi-user version of the popular orthogonal frequency-division multiplexing (OFDM) digital modulation scheme. This allows simultaneous low-data-rate transmission from several users.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Draadloos
Hostinterface*
PCI Express
Interface*
WLAN
Netwerk
Maximale overdrachtssnelheid van gegevens*
2400 Mbit/s
Wifi
Ja
Wifi-standaard
Wi-Fi 6 (802.11ax)
Wi-Fi-standaarden
Wi-Fi 6E (802.11ax)
MU-MIMO
Ja
Bluetooth
Ja
Bluetooth-versie
5.2
Design
Component voor*
PC/notebook
Intern*
Ja
Soort antenne
2x2
Pakket afmeting
22 x 30 x 2.4 mm
Minimale systeemeisen
Compatibele besturingssystemen
Windows 10, 64-bit*|Linux*
Ondersteunt Windows
Windows 10 x64
Ondersteunt Linux
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 80 °C
Gewicht en omvang
Breedte
22 mm
Diepte
2,4 mm
Hoogte
30 mm
Gewicht
2,8 g
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Overige specificaties
Maximale temperatuur (in bedrijf)
80 °C
Supported Under vPro
Ja
Lanceringsdatum
Q4'20
Status
Launched
Processorfamilie
Intel Wi-Fi 6E Products
Export Control Classification Number (ECCN)
5A992CN3
Commodity Classification Automated Tracking System (CCATS)
G165483
Compliance
FIPS, FISMA
Productserie
Intel® Wireless Products
