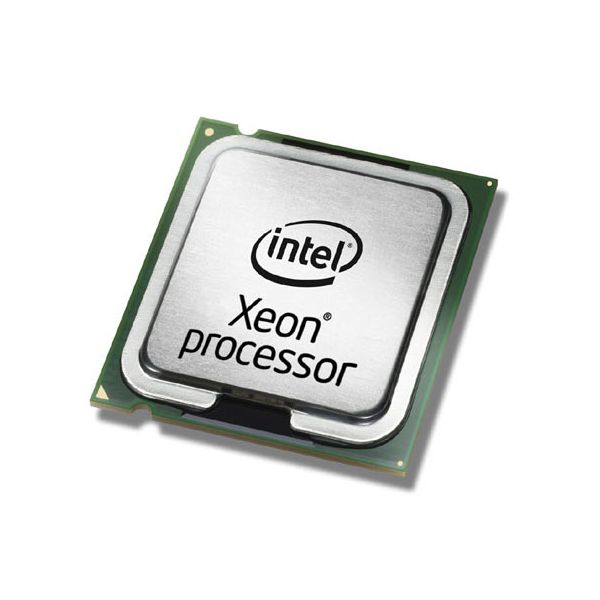

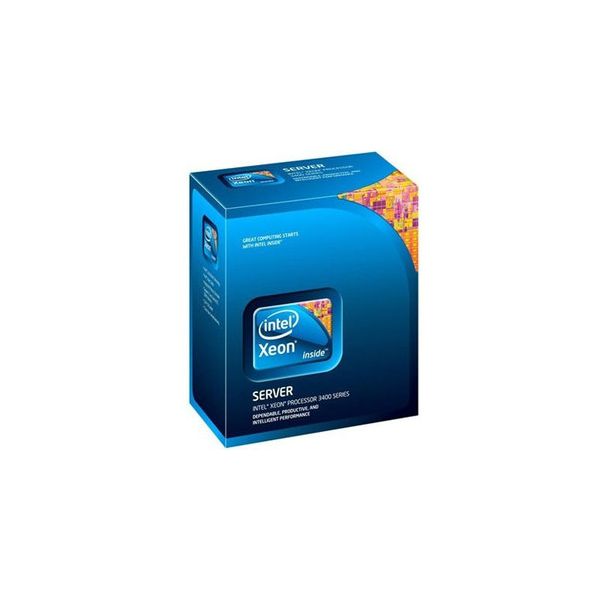

Intel Xeon L3406 processor 2,26 GHz 4 MB Smart Cache Box

Intel Xeon L3406, Intel® Xeon®, LGA 1156 (Socket H), 32 nm, Intel, L3406, 2,26 GHz

Niet op voorraad

Fabrikant Intel
MPN BX80616L3406
EAN 5032037010757
€ 198,00 excl. BTW

Intel Xeon L3406 processor 2,26 GHz 4 MB Smart Cache Box

Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.¹ Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel® Demand Based Switching
Intel® Demand Based Switching is a power-management technology in which the applied voltage and clock speed of a microprocessor are kept at the minimum necessary levels until more processing power is required. This technology was introduced as Intel SpeedStep® Technology in the server marketplace.

Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.

Intel® VT-x with Extended Page Tables (EPT)
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processormodel*
L3406
Basisfrequentie processor*
2,26 GHz
Processorfamilie*
Intel® Xeon®
Aantal processorkernen*
2
Processor socket*
LGA 1156 (Socket H)
Component voor
Server/werkplaats
Processor lithografie*
32 nm
Processorserie
Intel Xeon 3400 Series
Processor aantal threads
4
Systeembus
2,5 GT/s
Processor operating modes*
64-bit
Maximale turbofrequentie van processor
2,53 GHz
Processor cache
4 MB
Processor cache type
Smart Cache
Thermal Design Power (TDP)
30 W
Box*
Ja
Inclusief koeler*
Ja
VID Voltage Range
0,65 - 1,4 V
Compatibele chipsets
Intel® 3400, Intel® 3420, Intel® 3450
Stepping
C2
Bus type
DMI
CPU multiplier (bus/core ratio)
17
Geheugenbandbreedte ondersteund door de processor ( max)
17 GB/s
Codenaam processor
Clarkdale
Processorcode
SLBQQ
ARK ID processor
47555

Geheugen

Maximaal intern geheugen ondersteund door processor
16 GB
Geheugentypen ondersteund door processor
DDR3-SDRAM
Klokgeheugen-snelheden ondersteund door processor
1066 MHz
Geheugen kanaal*
Dubbelkanaals
ECC
Ja

Grafisch

Ingebouwde grafische adapter*
Nee

Kenmerken

Execute Disable Bit
Ja
Idle States
Ja
Thermal Monitoring Technologies
Nee
Marktsegment
Server
Maximaal aantal PCI Express-lijnen
16
PCI Express slots versie
2.0
PCI Express configuraties
1x16, 2x8
Aantal Processing Die Transistors
382 M
Processing die grootte
81 mm²
Aantal Graphics & IMC Die Transistors
177 M
Graphics & IMC Die Size
114 mm²
Ondersteunde instructie sets
SSE4.2
Physical Address Extension (PAE)
Ja
CPU configuratie (max)
1
Ingebouwde opties beschikbaar
Nee
Graphics & IMC lithografie
45 nm

Kenmerken

Physical Address Extension (PAE)
36 Bit
PCI Express CEM revisie
2.0
Export Control Classification Number (ECCN)
3A991
Commodity Classification Automated Tracking System (CCATS)
NA
Afbeeldingentypetoewijzing

Processor speciale functies

Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® Turbo Boost Technology
1.0
Intel® AES New Instructions (Intel® AES-NI)
Nee
Enhanced Intel SpeedStep Technology
Ja
Intel® Trusted Execution Technology
Ja
Intel® Enhanced Halt State
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® Demand Based Switching
Ja
Intel® 64
Ja
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® vPro™ Platform Eligibility
Nee

Eisen aan de omgeving

Tcase
53,9 °C

Technische details

Introductiedatum
Q1'10
Bandbreedte bus
2,5
Type buseenheden
GT/s
Lanceringsdatum
Q1'10
Processorcache
4096 KB
Voltage processorkern
0.6500-1.400 V
Productnaam
Intel Xeon L3406 (4M Cache, 2.26 GHz)
Type product
Processor
Status
Discontinued
Maximaal geheugen
16,38 GB
Merknaam processor
Intel Xeon
Ondersteunde geheugen types
DDR3-SDRAM
Laatste wijziging
63903513
Productfamilie
Intel Xeon Processor 3000 Sequence
Bussnelheid
2.5 GT/s

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85423119

Verpakking

Breedte verpakking
81 mm
Diepte verpakking
114 mm
Hoogte verpakking
102 mm
Gewicht verpakking
394 g
Type verpakking
Retaildoos

Gewicht en omvang

Verpakkingsgrootte processor
37.5 x 37.5 mm

Overige specificaties

Intel® Virtualization Technology (Intel® VT)
VT-d, VT-x
Maximum intern geheugen
16,38 GB
Maximaal intern geheugen
16777 MB
Cache memory
4 MB
