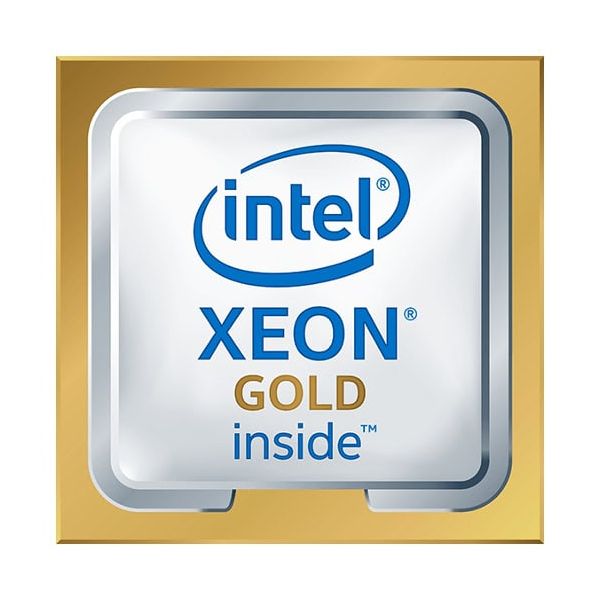

Intel Xeon 5120 processor 2,2 GHz 19,25 MB L3 Box

Intel Xeon 5120, Intel® Xeon® Gold, FCLGA3647, 14 nm, Intel, 2,2 GHz, 64-bit

Nog 3 beschikbaar (bel voor reservering)

Fabrikant Intel
MPN BX806735120
EAN 5032037104111
€ 1.638,00 excl. BTW

Intel Xeon 5120 processor 2,2 GHz 19,25 MB L3 Box

Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processormodel*
5120
Basisfrequentie processor*
2,2 GHz
Processorfamilie*
Intel® Xeon® Gold
Aantal processorkernen*
14
Processor socket*
FCLGA3647
Component voor
Server/werkplaats
Processor lithografie*
14 nm
Processor aantal threads
28
Processor operating modes*
64-bit
Maximale turbofrequentie van processor
3,2 GHz
Processor cache
19,25 MB
Processor cache type
L3
Thermal Design Power (TDP)
105 W
Box*
Ja
Inclusief koeler*
Ja
Stepping
M0
Codenaam processor
Skylake
Processorcode
SR3GD
ARK ID processor
120474

Geheugen

Maximaal intern geheugen ondersteund door processor
768 GB
Geheugentypen ondersteund door processor
DDR4-SDRAM
Klokgeheugen-snelheden ondersteund door processor
2400 MHz
Geheugen kanaal*
Zeskanaals
ECC
Ja

Grafisch

Ingebouwde grafische adapter*
Nee

Kenmerken

Execute Disable Bit
Ja
Marktsegment
Server
Maximaal aantal PCI Express-lijnen
48
PCI Express slots versie
3.0
Ondersteunde instructie sets
SSE4.2, AVX, AVX 2.0, AVX-512
Schaalbaarheid
4S
Ingebouwde opties beschikbaar
Nee
PCI Express CEM revisie
3.0
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159

Processor speciale functies

Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® Turbo Boost Technology
2.0
Intel® AES New Instructions (Intel® AES-NI)
Ja
Enhanced Intel SpeedStep Technology
Ja
Intel® Trusted Execution Technology
Ja

Processor speciale functies

Intel® Speed Shift-technologie
Ja
Intel® Transactional Synchronization Extensions
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® TSX-NI
Ja
Intel® 64
Ja
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Versie Intel® TSX-NI
1,00
Conflictvrije processor
Ja
Intel® Turbo Boost Max Technology 3.0
Nee
Intel® Optane™ Memory Ready
Nee
AVX-512 Fused Multiply-Add (FMA) eenheden
1
Intel® Volume Management Device (VMD)
Ja
Intel® Run Sure-technologie
Ja
Mode-based Execute Control (MBE)
Ja
Intel® vPro™ Platform Eligibility
Ja

Eisen aan de omgeving

Tcase
81 °C

Technische details

Lanceringsdatum
Q3'17
Processorcache
19712 KB
Type product
Processor
Status
Launched
Maximaal geheugen
768 GB
Merknaam processor
Intel Xeon Gold Intel Xeon Gold Processor
Ondersteunde geheugen types
DDR4-SDRAM
Laatste wijziging
63903513
Productfamilie
Intel Xeon Processors
Intel® Speed Shift-technologie-versie
1,00
Intel® Run Sure Technology versie
1,00
Intel® Volume Management Device (VMD) versie
1,00
Geheugensnelheid (max)
2400 MHz
Mode-based Execute Control (MBE) versie
1,00
Aantal UPI-koppelingen
2

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85423119

Verpakking

Type verpakking
Retaildoos

Gewicht en omvang

Verpakkingsgrootte processor
76mm x 56.5mm

Overige specificaties

Maximum intern geheugen
768 GB
Maximaal intern geheugen
786432 MB
