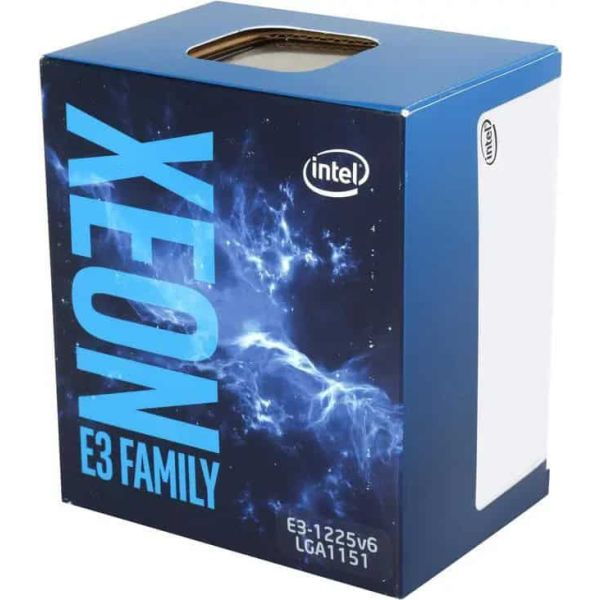

Intel Xeon E3-1225V6 processor 3,3 GHz 8 MB Smart Cache Box

Intel Xeon E3-1225V6, Intel® Xeon® E3 v6, LGA 1151 (Socket H4), 14 nm, Intel, E3-1225 v6, 3,3 GHz

Niet op voorraad

Fabrikant Intel
MPN BX80677E31225V6
EAN 5032037094481
€ 350,00 excl. BTW

Intel Xeon E3-1225V6 processor 3,3 GHz 8 MB Smart Cache Box

Met Intel® Turbo Boost Technologie wordt de processorfrequentie indien nodig dynamisch verhoogd door te profiteren van thermische en energiemarges. Hierdoor beschikt u over extra snelheid wanneer dit nodig is en bespaart u stroom wanneer u minder snelheid nodig hebt.

Intel® vPro™ technologie is een set beveiligings- en beheerfuncties die zijn ingebouwd in de processor en die zijn gericht op de vier belangrijkste gebieden van IT-beveiliging: 1) bedreigingsmanagement, inclusief beveiliging uit rootkits, virussen en malware 2) Identeitbescherming en beveiliging van het website access point 3) Beveiliging van vertrouwelijke persoonlijke en zakelijke gegevens 4) Externe en lokale bewaking, remediatie en reparatie van PC's en werkstations.

Via Intel® Virtualization Technology (VT-x) kan één hardwareplatform als meerdere 'virtuele' platforms fungeren. Deze technologie verbetert de beheermogelijkheden doordat de uitvaltijd wordt beperkt en waarborgt de productiviteit doordat de computeractiviteiten worden ondergebracht in afzonderlijke partities.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processormodel*
E3-1225 v6
Basisfrequentie processor*
3,3 GHz
Processorfamilie*
Intel® Xeon® E3 v6
Aantal processorkernen*
4
Processor socket*
LGA 1151 (Socket H4)
Component voor
Server/werkplaats
Processor lithografie*
14 nm
Processor aantal threads
4
Systeembus
8 GT/s
Processor operating modes*
64-bit
Maximale turbofrequentie van processor
3,7 GHz
Processor cache
8 MB
Processor cache type
Smart Cache
Thermal Design Power (TDP)
73 W
Box*
Ja
Inclusief koeler*
Ja
VID Voltage Range
0,55 - 1,52 V
Bus type
DMI3
Geheugenbandbreedte ondersteund door de processor ( max)
37,5 GB/s
Codenaam processor
Kaby Lake
ARK ID processor
97476

Geheugen

Maximaal intern geheugen ondersteund door processor
64 GB
Geheugentypen ondersteund door processor
DDR4-SDRAM, DDR3L-SDRAM
Klokgeheugen-snelheden ondersteund door processor
1866,2400 MHz
Geheugen kanaal*
Dubbelkanaals
ECC
Ja

Grafisch

Ingebouwde grafische adapter*
Ja
Aparte grafische adapter*
Nee
On-board graphics adapter model*
Intel® HD Graphics P630
Maximaal geheugen ingebouwde grafische adapter
64 GB
On-board ondersteunde grafische adapter uitgangen
Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI
Basisfrequentie ingebouwde grafische adapter
350 MHz
Graphics on-board -adapter dynamische frequentie (max)
1150 MHz
Aantal displays ondersteund (door on-board grafische adapter)
3
4K-ondersteuning
Ja
On-board grafische adapter DirectX-versie
12.0
On-board grafische adapter OpenGL versie
4.4
Graphics aan boord maximale resolutie adapter (DisplayPort )
4096 x 2304 Pixels
Maximale resolutie (eDP - Integrated Flat Panel)
4096 x 2304 Pixels
Maximale resolutie ingebouwde grafische adapter (HDMI)
4096 x 2160 Pixels
Grafische adapter refresh rate on-board bij maximale resolutie (DisplayPort )
60 Hz
Refresh rate op maximale resolutie (eDP - Integrated Flat Panel)
60 Hz
Verversingsfrequentie ingebouwde grafische adapter bij maximale resolutie (HDMI)
24 Hz
On-board grafische adapter ID
0x191D
Discreet grafische adapter model*
Niet beschikbaar

Kenmerken

Execute Disable Bit
Ja
Idle States
Ja
Thermal Monitoring Technologies
Ja
Marktsegment
Server
Maximaal aantal PCI Express-lijnen
16
PCI Express slots versie
3.0
PCI Express configuraties
1x16, 2x8, 1x8+2x4
Ondersteunde instructie sets
SSE4.1, SSE4.2, AVX 2.0
Schaalbaarheid
1S
CPU configuratie (max)
1
Ingebouwde opties beschikbaar
Nee
PCI Express CEM revisie
3.0
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159

Processor speciale functies

Intel® Hyper Threading Technology (Intel® HT Technology)
Nee
Intel® Turbo Boost Technology
2.0
Intel® Quick Sync Video Technology
Ja
Intel® InTru™ 3D Technology
Ja
Intel® Clear Video HD Technology (Intel® CVT HD)
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Enhanced Intel SpeedStep Technology
Ja
Intel® Trusted Execution Technology
Ja
Intel® Memory Protection Extensions (Intel® MPX)
Ja
Intel® Turbo Boost Technology 2.0 frequency
3,7 GHz
Intel® Transactional Synchronization Extensions
Ja
Intel® Enhanced Halt State
Ja
Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® Secure Key
Ja
Intel® TSX-NI
Ja
Intel® OS Guard
Ja
Intel® Clear Video-technologie
Ja
Intel® Software Guard Extensions (Intel® SGX)
Ja
Intel® 64
Ja
Versie Intel® Secure Key Technology
1,00
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Versie Intel® TSX-NI
1,00
Conflictvrije processor
Ja
Intel® Optane™ Memory Ready
Ja
Intel® Boot Guard
Ja
Intel® vPro™ Platform Eligibility
Ja

Technische details

Bandbreedte bus
8
Type buseenheden
GT/s
Lanceringsdatum
Q1'17
Maximale resolutie & verversingsfrequentie (DisplayPort)
4096x2304@60Hz
Maximale resolutie & verversingsfrequentie (HDMI)
4096x2160@24Hz
Maximale resolutie & verversingsfrequentie (Integrated Flat Panel)
4096x2304@60Hz
Maximale resolutie & verversingsfrequentie (VGA)
N/A
Processorcache
8192 KB
Type product
Processor
Status
Launched
Maximaal geheugen
64 GB
Merknaam processor
Intel Xeon
Ondersteunde geheugen types
DDR4-SDRAM, DDR3L-SDRAM
Laatste wijziging
63903513
Productfamilie
Intel Xeon Processors
Bussnelheid
8 GT/s
Maximaal geheugen grafische adapter
64 GB
Processor-id
0x591D
Onderhoudsstatus
Baseline Servicing

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85423119

Verpakking

Breedte verpakking
70 mm
Diepte verpakking
116 mm
Hoogte verpakking
101 mm
Type verpakking
Retaildoos

Gewicht en omvang

Verpakkingsgrootte processor
37.5 x 37.5 mm

Overige specificaties

Maximum intern geheugen
64 GB
Maximaal intern geheugen
65536 MB
Grafische uitvoer
eDP/DP/HDMI/DVI
Videodecodering
Ja
