Intel Core i7-14700F, Intel® Core™ i7, LGA 1700, Intel, i7-14700F, 64-bit, Intel Core i7-14xxx

Ruim op voorraad

Fabrikant Intel
MPN BX8071514700F
EAN 0735858547680

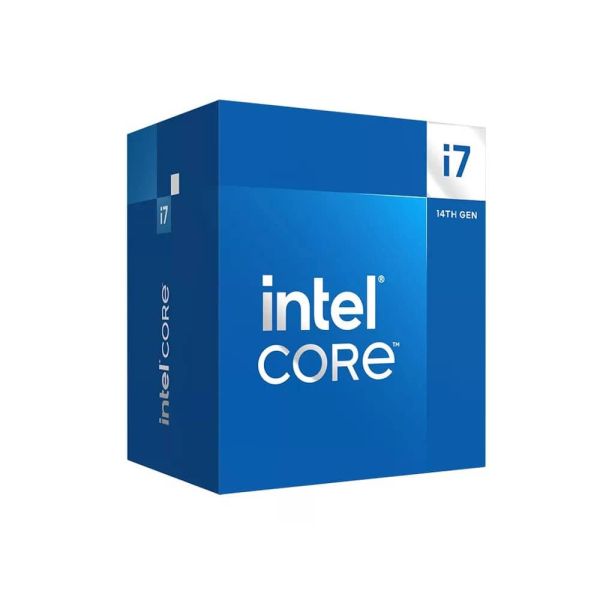

Intel Core i7-14700F processor 33 MB Smart Cache Box

Intel Core i7-14700F Processor 33M Cache

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processorgeneratie
Intel Core i7-14xxx
Processormodel*
i7-14700F
Processorfamilie*
Intel® Core™ i7
Aantal processorkernen*
20
Processor socket*
LGA 1700
Processor aantal threads
28
Processor operating modes*
64-bit
Prestatiekernen
8
Efficiënte kernen
12
Maximale turbofrequentie van processor
5,4 GHz
Prestatie-kernboostfrequentie
5,3 GHz
Prestatie-kernbasisfrequentie
2,1 GHz
Efficiënte kernboostfrequentie
4,2 GHz
Efficiënte kernbasisfrequentie
1,5 GHz
Processor cache
33 MB
Processor cache type
Smart Cache
Box*
Ja
Inclusief koeler*
Ja
Processor basisvermogen
65 W
Maximaal turbovermogen
219 W
Stepping
B0
Maximum aantal DMI lanes
8
Geheugenbandbreedte ondersteund door de processor ( max)
89,6 GB/s
Codenaam processor
Raptor Lake
ARK ID processor
236854

Geheugen

Maximaal intern geheugen ondersteund door processor
192 GB
Geheugentypen ondersteund door processor
DDR4-SDRAM, DDR5-SDRAM
Geheugen kanaal*
Dubbelkanaals
Geheugen bandbreedte (max)
89,6 GB/s

Grafisch

Ingebouwde grafische adapter*
Nee
Aparte grafische adapter*
Nee
On-board graphics adapter model*
Niet beschikbaar
Discreet grafische adapter model*
Niet beschikbaar

Kenmerken

Execute Disable Bit
Ja
Idle States
Ja
Thermal Monitoring Technologies
Ja
Marktsegment
Desktop
Gebruiksvoorwaarden
PC/Client/Tablet
Maximaal aantal PCI Express-lijnen
20
PCI Express slots versie
4.0, 5.0

Kenmerken

PCI Express configuraties
1x16+1x4, 2x8+1x4
Ondersteunde instructie sets
AVX 2.0, SSE4.1, SSE4.2
Schaalbaarheid
1S
CPU configuratie (max)
1
Ingebouwde opties beschikbaar
Nee
Directe media-interface (DMI) revisie
4.0
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
740.17B1

Processor speciale functies

Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® Turbo Boost Technology
2.0
Intel® AES New Instructions (Intel® AES-NI)
Ja
Enhanced Intel SpeedStep Technology
Ja
Intel® Speed Shift-technologie
Ja
Intel® Turbo Boost Max Technology 3.0 frequency
5,4 GHz
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0
Ja
Intel® Control-flow Enforcement Technology (CET)
Ja
Intel® Thread Director
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® Secure Key
Ja
Intel® OS Guard
Ja
Intel® 64
Ja
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® Turbo Boost Max Technology 3.0
Ja
Intel® Boot Guard
Ja
Intel® Deep Learning Boost (Intel® DL Boost)
Ja
Intel® Volume Management Device (VMD)
Ja
Mode-based Execute Control (MBE)
Ja
Intel® Standard Manageability (ISM, Standaard beheerbaarheid)
Ja

Eisen aan de omgeving

Tjunction
100 °C

Logistieke gegevens

Code geharmoniseerd systeem (HS)
8542310001

Technische details

Lanceringsdatum
Q1'24
Status
Launched

Gewicht en omvang

Verpakkingsgrootte processor
45 x 37.5 mm

Overige specificaties

L2 cache
28672 KB
Maximum intern geheugen
192 GB
