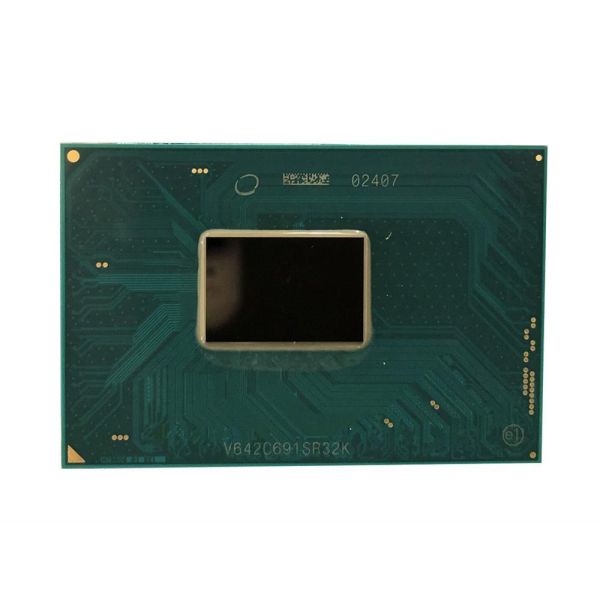

Intel Xeon E3-1505MV6 processor 3 GHz 8 MB Smart Cache

Intel Xeon E3-1505MV6, Intel® Xeon® E3 v6, FCBGA1440, 14 nm, Intel, E3-1505MV6, 3 GHz

Niet op voorraad

Fabrikant Intel
MPN CL8067702869709
EAN 8592978347758
€ 608,00 excl. BTW

Intel Xeon E3-1505MV6 processor 3 GHz 8 MB Smart Cache

Intel® Speed Shift Technologie
Intel® Speed Shift Technologie gebruikt door hardware beheerde P-states om aanzienlijk snellere prestaties te leveren voor single-thread, transient (korte) werkbelastingen, zoals webbrowsen, door de processor toe te staan om sneller de beste frequentie en voltage te selecteren voor optimale prestaties en energiezuinigheid.

Intel® vPro™ technologie
Intel® vPro™ technologie is een set beveiligings- en beheerfuncties die zijn ingebouwd in de processor en die zijn gericht op de vier belangrijkste gebieden van IT-beveiliging: 1) bedreigingsmanagement, inclusief beveiliging uit rootkits, virussen en malware 2) Identeitbescherming en beveiliging van het website access point 3) Beveiliging van vertrouwelijke persoonlijke en zakelijke gegevens 4) Externe en lokale bewaking, remediatie en reparatie van PC's en werkstations.

Intel® Turbo Boost Technologie
Met Intel® Turbo Boost Technologie wordt de processorfrequentie indien nodig dynamisch verhoogd door te profiteren van thermische en energiemarges. Hierdoor beschikt u over extra snelheid wanneer dit nodig is en bespaart u stroom wanneer u minder snelheid nodig hebt.

Intel® Hyper-Threading Technologie
Intel® Hyper-Threading Technologie voorziet in twee processorthreads per fysieke kern. In toepassingen met een groot aantal threads kunnen er meer gegevens tegelijkertijd worden verwerkt, waardoor taken sneller zijn voltooid.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processormodel*
E3-1505MV6
Basisfrequentie processor*
3 GHz
Processorfamilie*
Intel® Xeon® E3 v6
Aantal processorkernen*
4
Processor socket*
FCBGA1440
Component voor
Server/werkplaats
Processor lithografie*
14 nm
Processorserie
Intel Xeon E3-1500M v6
Processor aantal threads
8
Systeembus
8 GT/s
Processor operating modes*
64-bit
Maximale turbofrequentie van processor
4 GHz
Processor cache
8 MB
Processor cache type
Smart Cache
Thermal Design Power (TDP)
45 W
Box*
Nee
Inclusief koeler*
Nee
Configureerbare TDP-down
35 W
Stepping
B0
Bus type
DMI3
Geheugenbandbreedte ondersteund door de processor ( max)
37,5 GB/s
Codenaam processor
Kaby Lake
Processorcode
SR32K
ARK ID processor
97463

Geheugen

Maximaal intern geheugen ondersteund door processor
64 GB
Geheugentypen ondersteund door processor
DDR4-SDRAM, LPDDR3-SDRAM, DDR3L-SDRAM
Klokgeheugen-snelheden ondersteund door processor
1600,2133,2400 MHz
Geheugen kanaal*
Dubbelkanaals
ECC
Ja

Grafisch

Ingebouwde grafische adapter*
Ja
On-board graphics adapter model*
Intel® HD Graphics P630
Maximaal geheugen ingebouwde grafische adapter
1,7 GB
On-board ondersteunde grafische adapter uitgangen
Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI
Basisfrequentie ingebouwde grafische adapter
350 MHz
Graphics on-board -adapter dynamische frequentie (max)
1100 MHz
Aantal displays ondersteund (door on-board grafische adapter)
3
4K-ondersteuning
Ja
On-board grafische adapter DirectX-versie
12.0
On-board grafische adapter OpenGL versie
4.4
Graphics aan boord maximale resolutie adapter (DisplayPort )
4096 x 2304 Pixels
Maximale resolutie (eDP - Integrated Flat Panel)
4096 x 2304 Pixels
Maximale resolutie ingebouwde grafische adapter (HDMI)
4096 x 2304 Pixels
Grafische adapter refresh rate on-board bij maximale resolutie (DisplayPort )
60 Hz
Refresh rate op maximale resolutie (eDP - Integrated Flat Panel)
60 Hz
Verversingsfrequentie ingebouwde grafische adapter bij maximale resolutie (HDMI)
30 Hz
On-board grafische adapter ID
0x591D

Kenmerken

Execute Disable Bit
Ja
Idle States
Ja
Thermal Monitoring Technologies
Ja
Marktsegment
Mobiel
Maximaal aantal PCI Express-lijnen
16
PCI Express slots versie
3.0
PCI Express configuraties
1x16, 2x8, 1x8+2x4
Ondersteunde instructie sets
SSE4.1, SSE4.2, AVX 2.0
CPU configuratie (max)
1
Ingebouwde opties beschikbaar
Ja
PCI Express CEM revisie
3.0
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159

Processor speciale functies

Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® Identity Protection Technology (Intel® IPT)
Ja
Intel® My WiFi Technology (Intel® MWT)
Ja

Processor speciale functies

Intel® Smart Response Technology
Ja
Intel® Turbo Boost Technology
2.0
Intel® Quick Sync Video Technology
Ja
Intel® InTru™ 3D Technology
Ja
Intel® Clear Video HD Technology (Intel® CVT HD)
Ja
Intel® Flex Memory Access
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Enhanced Intel SpeedStep Technology
Ja
Intel® Trusted Execution Technology
Ja
Intel® Memory Protection Extensions (Intel® MPX)
Ja
Intel® Speed Shift-technologie
Ja
Intel® Turbo Boost Technology 2.0 frequency
4 GHz
Intel® Transactional Synchronization Extensions
Ja
Intel® Enhanced Halt State
Ja
Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® Secure Key
Ja
Intel® TSX-NI
Ja
Intel® Stable Image Platform Program (SIPP)
Ja
Intel® OS Guard
Ja
Intel® Clear Video-technologie
Ja
Intel® Software Guard Extensions (Intel® SGX)
Ja
Intel® HD Graphics
Ja
Intel® 64
Ja
Versie Intel® Identity Protection Technology
1,00
Versie Intel® Secure Key Technology
1,00
Versie Intel® Smart Response Technology
1,00
Versie Intel® Stable Image Platform Program (SIPP)
1,00
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Versie Intel® TSX-NI
1,00
Conflictvrije processor
Ja
Intel® vPro™ Platform Eligibility
Ja

Eisen aan de omgeving

Tjunction
100 °C

Technische details

Bandbreedte bus
8
Type buseenheden
GT/s
Lanceringsdatum
Q1'17
Maximale resolutie & verversingsfrequentie (DisplayPort)
4096x2304@60Hz
Maximale resolutie & verversingsfrequentie (HDMI)
4096x2304@30Hz
Maximale resolutie & verversingsfrequentie (Integrated Flat Panel)
4096x2304@60Hz
Maximale resolutie & verversingsfrequentie (VGA)
N/A
Processorcache
8192 KB
Type product
System on Chip
Status
Launched
Maximaal geheugen
64 GB
Merknaam processor
Intel Xeon
Ondersteunde geheugen types
DDR4-SDRAM, LPDDR3-SDRAM, DDR3L-SDRAM
Laatste wijziging
63903513
Productfamilie
Intel Xeon Processor E3 v6 Family
Intel® Speed Shift-technologie-versie
1,00
Bussnelheid
8 GT/s
Maximaal geheugen grafische adapter
1,7 GB
Processor-id
0x591D
Onderhoudsstatus
Baseline Servicing

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85423119

Gewicht en omvang

Verpakkingsgrootte processor
42mm x 28mm

Overige specificaties

Maximum intern geheugen
64 GB
Maximaal intern geheugen
65536 MB
Grafische uitvoer
eDP/DP/HDMI/DVI
Videodecodering
Ja
