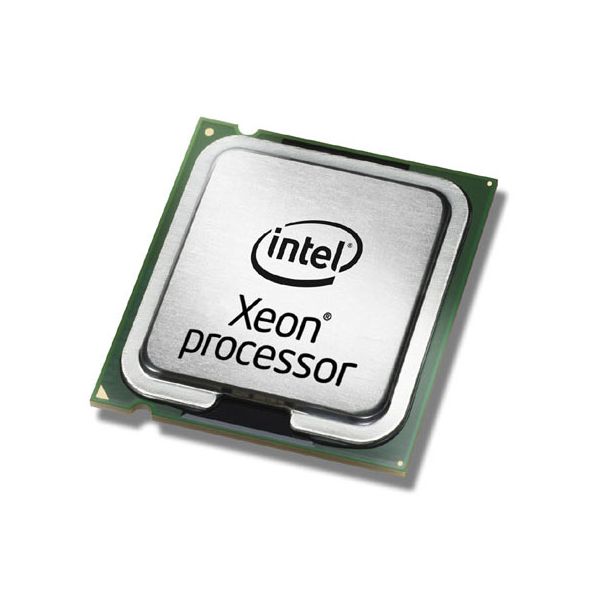

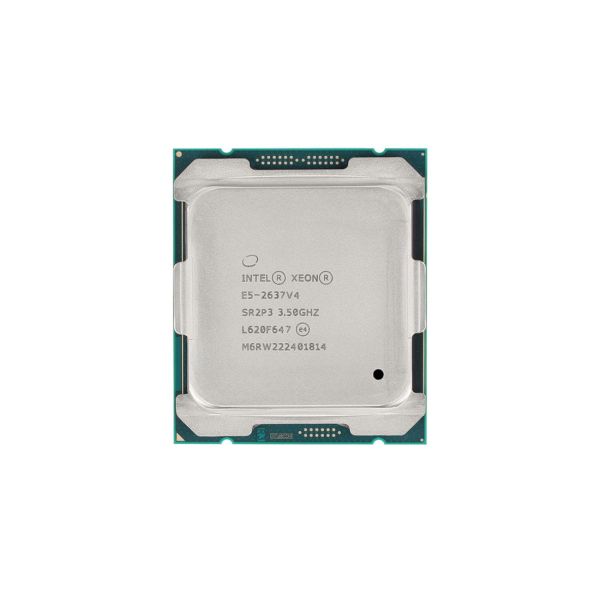

Intel Xeon E5-2637V4 processor 3,5 GHz 15 MB Smart Cache

Intel Xeon E5-2637V4, Intel® Xeon® E5 v4, LGA 2011-v3, 14 nm, Intel, E5-2637V4, 3,5 GHz

Nog 10 beschikbaar

Fabrikant Intel
MPN CM8066002041100
EAN 0675901388177
€ 397,00 excl. BTW

Intel Xeon E5-2637V4 processor 3,5 GHz 15 MB Smart Cache

De krachtige nieuwe Intel® Xeon® processor E5-2600 v4 productfamilie biedt veelzijdigheid voor verschillende werkbelastingen. Deze processors zijn ontworpen om een nieuwe generatie datacenters met een software defined infrastructure op te baseren die gericht zijn op efficiëntie, krachtige prestaties en de flexibele levering van diensten voor zowel traditionele als cloudapplicaties. Ze ondersteunen werkbelastingen voor cloud, high-performance computing, netwerken en opslag.

Prestaties
De Intel® Xeon® processor E5 v4 familie is gebaseerd op 14 nm procestechnologie en biedt tot 22 kernen/44 threads per socket en 55 MB last-level cache (LLC) per socket voor extra prestaties, en beschikt daarnaast over Intel® Transactional Synchronization Extensions (Intel® TSX) voor verbeterde prestaties van parallelle werkbelastingen.

Geoptimaliseerd voor orkestratie
Intel® Resource Director Technology (Intel® RDT) maakt dynamisch en efficiënt beheer van gedeelde bronnen en verbeterd gebruik van bronnen mogelijk dankzij technologie voor beheer en toewijzing van cache, prioritering van code en data, en controle van geheugenbandbreedte.

Verbeterde beveiliging
Verbeterde cryptografische prestaties maken het mogelijk om versleutelde gegevens snel te verzenden via beveiligde verbindingen. Daarnaast worden platforms en netwerken beter beschermd dankzij verbeterde beveiligingssleutels.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processormodel*
E5-2637V4
Basisfrequentie processor*
3,5 GHz
Processorfamilie*
Intel® Xeon® E5 v4
Aantal processorkernen*
4
Processor socket*
LGA 2011-v3
Component voor
Server/werkplaats
Processor lithografie*
14 nm
Processorserie
Intel Xeon E5-2600 v4
Processor aantal threads
8
Systeembus
9,6 GT/s
Processor operating modes*
64-bit
Maximale turbofrequentie van processor
3,7 GHz
Processor cache
15 MB
Processor cache type
Smart Cache
Thermal Design Power (TDP)
135 W
Box*
Nee
Inclusief koeler*
Nee
VID Voltage Range
0 - 0 V
Stepping
R0
Bus type
QPI
aantal QPI links
2
Geheugenbandbreedte ondersteund door de processor ( max)
76,8 GB/s
Codenaam processor
Broadwell
Processorcode
SR2P3
ARK ID processor
92983

Geheugen

Maximaal intern geheugen ondersteund door processor
1536 GB
Geheugentypen ondersteund door processor
DDR4-SDRAM
Klokgeheugen-snelheden ondersteund door processor
1600,1866,2133,2400 MHz
Geheugen kanaal*
Vierkanaals
ECC
Ja

Grafisch

Ingebouwde grafische adapter*
Nee

Kenmerken

Execute Disable Bit
Ja
Idle States
Ja
Thermal Monitoring Technologies
Ja
Marktsegment
Server
Maximaal aantal PCI Express-lijnen
40
PCI Express slots versie
3.0
Ondersteunde instructie sets
AVX 2.0
Schaalbaarheid
2S
Physical Address Extension (PAE)
Ja
CPU configuratie (max)
2
Ingebouwde opties beschikbaar
Nee
Physical Address Extension (PAE)
46 Bit
PCI Express CEM revisie
3.0
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159

Processor speciale functies

Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® Identity Protection Technology (Intel® IPT)
Nee
Intel® Turbo Boost Technology
2.0
Intel® Flex Memory Access
Nee
Intel® AES New Instructions (Intel® AES-NI)
Ja
Enhanced Intel SpeedStep Technology
Ja
Intel® Trusted Execution Technology
Ja
Intel® Turbo Boost Technology 2.0 frequency
3,7 GHz
Intel® Transactional Synchronization Extensions
Ja
Intel® Enhanced Halt State
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® Demand Based Switching
Ja
Intel® Secure Key
Ja
Intel® TSX-NI
Ja
Intel® OS Guard
Ja
Intel® 64
Ja
Versie Intel® Identity Protection Technology
0,00
Versie Intel® Secure Key Technology
1,00
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Versie Intel® TSX-NI
1,00
Conflictvrije processor
Ja
Intel® vPro™ Platform Eligibility
Ja

Eisen aan de omgeving

Tcase
75 °C

Technische details

Bandbreedte bus
9,6
Type buseenheden
GT/s
Lanceringsdatum
Q1'16
Processorcache
15360 KB
Type product
Processor
Status
Launched
Merknaam processor
Intel Xeon
Ondersteunde geheugen types
DDR4-SDRAM
Laatste wijziging
63903513
Productfamilie
Intel Xeon Processor E5 v4 Family
Bussnelheid
9.6 GT/s
Onderhoudsstatus
End of Servicing Updates
Datum einde onderhoudsupdates
Thursday, June 30, 2022

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85423119

Gewicht en omvang

Verpakkingsgrootte processor
45mm x 52.5mm

Overige specificaties

Compatibiliteit
Intel Server System R1208WT2GSR Intel Server System R1208WTTGSR Intel Server System R1304WT2GSR Intel Server System R1304WTTGSR Intel Server System R2208WTTYSR Intel Server System R2208WT2YSR Intel Server System R2208WTTYC1R Intel Server System R2308WTTYSR Intel Server System R2312WTTYSR Intel Server System R2224WTTYSR Intel Server Board S2600CW2R Intel Server Board S2600CW2SR Intel Server Board S2600CWTR Intel Server Board S2600CWTSR Intel Server Board S2600KPR Intel Server Board S2600KPFR Intel Server Board S2600KPTR Intel Server Board S2600TPR Intel Server Board S2600TPFR Intel Server Board S2600WTTR Intel Server Board S2600WT2R Intel Server Board S2600WTTS1R Intel Compute Module HNS2600KPFR Intel Compute Module HNS2600KPR Intel Compute Module HNS2600TP24R Intel Compute Module HNS2600TPFR Intel Compute Module HNS2600TPR Intel Compute Module HNS2600TP24SR
Maximum intern geheugen
1500 GB
Maximaal intern geheugen
1572864 MB
