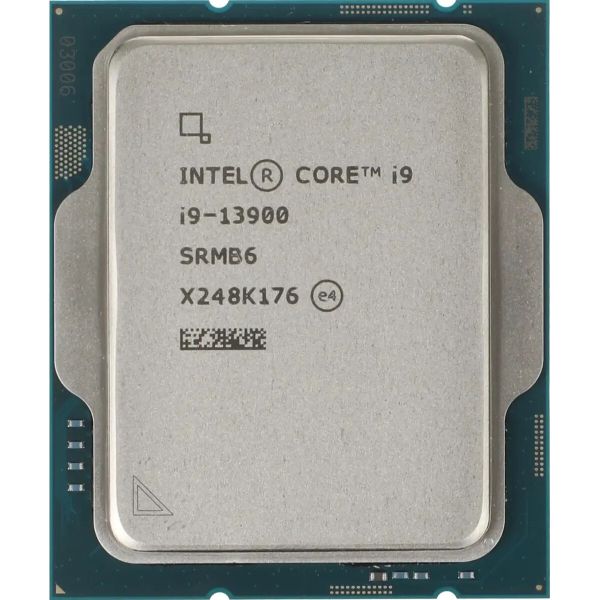

Intel Core i9-13900 processor 36 MB Smart Cache

Intel Core i9-13900, Intel® Core™ i9, LGA 1700, Intel, i9-13900, 64-bit, Intel® 13de generatie Core™ i9

Ruim op voorraad

Fabrikant Intel
MPN CM8071504820605
EAN 8592978422387
€ 575,00 excl. BTW

Intel Core i9-13900 processor 36 MB Smart Cache

Intel® Gaussian & Neural Accelerator
Intel® Gaussian & Neural Accelerator (GNA) is an ultra-low power accelerator block designed to run audio and speed-centric AI workloads. Intel® GNA is designed to run audio based neural networks at ultra-low power, while simultaneously relieving the CPU of this workload.

Intel® Deep Learning Boost (Intel® DL Boost)
A new set of embedded processor technologies designed to accelerate AI deep learning use cases. It extends Intel AVX-512 with a new Vector Neural Network Instruction (VNNI) that significantly increases deep learning inference performance over previous generations.

Intel® Speed Shift Technology
Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.

Intel® Thermal Velocity Boost
Intel® Thermal Velocity Boost (Intel® TVB) is a feature that opportunistically and automatically increases clock frequency above single-core and multi-core Intel® Turbo Boost Technology frequencies based on how much the processor is operating below its maximum temperature and whether turbo power budget is available. The frequency gain and duration is dependent on the workload, capabilities of the processor and the processor cooling solution.

Intel® Turbo Boost Max Technology 3.0
Intel® Turbo Boost Max Technology 3.0 identifies the best performing core(s) on a processor and provides increased performance on those cores through increasing frequency as needed by taking advantage of power and thermal headroom.

Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processorgeneratie
Intel® 13de generatie Core™ i9
Processormodel*
i9-13900
Processorfamilie*
Intel® Core™ i9
Aantal processorkernen*
24
Processor socket*
LGA 1700
Processor aantal threads
32
Processor operating modes*
64-bit
Prestatiekernen
8
Efficiënte kernen
16
Maximale turbofrequentie van processor
5,6 GHz
Prestatie-kernboostfrequentie
5,2 GHz
Prestatie-kernbasisfrequentie
2 GHz
Efficiënte kernboostfrequentie
4,2 GHz
Efficiënte kernbasisfrequentie
1,5 GHz
Processor cache
36 MB
Processor cache type
Smart Cache
Box*
Nee
Processor basisvermogen
65 W
Maximaal turbovermogen
219 W
Bus type
DMI4
Maximum aantal DMI lanes
8
Geheugenbandbreedte ondersteund door de processor ( max)
89,6 GB/s
Codenaam processor
Raptor Lake
ARK ID processor
230499

Geheugen

Maximaal intern geheugen ondersteund door processor
128 GB
Geheugentypen ondersteund door processor
DDR4-SDRAM, DDR5-SDRAM
Geheugen kanaal*
Dubbelkanaals
ECC
Ja
Geheugen bandbreedte (max)
89,6 GB/s

Grafisch

Ingebouwde grafische adapter*
Ja
Aparte grafische adapter*
Nee
On-board graphics adapter model*
Intel UHD Graphics 770
On-board ondersteunde grafische adapter uitgangen
Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
Basisfrequentie ingebouwde grafische adapter
300 MHz
Graphics on-board -adapter dynamische frequentie (max)
1650 MHz
Aantal displays ondersteund (door on-board grafische adapter)
4
On-board grafische adapter DirectX-versie
12.0
On-board grafische adapter OpenGL versie
4.5
Graphics aan boord maximale resolutie adapter (DisplayPort )
7680 x 4320 Pixels
Maximale resolutie (eDP - Integrated Flat Panel)
5120 x 3200 Pixels
Maximale resolutie ingebouwde grafische adapter (HDMI)
4096 x 2160 Pixels
Grafische adapter refresh rate on-board bij maximale resolutie (DisplayPort )
60 Hz
Refresh rate op maximale resolutie (eDP - Integrated Flat Panel)
120 Hz
Verversingsfrequentie ingebouwde grafische adapter bij maximale resolutie (HDMI)
60 Hz
On-board grafische adapter ID
0xA780
Discreet grafische adapter model*
Niet beschikbaar
Aantal verwerkingseenheden
32
Multi-Formaat Codec-motoren
2

Kenmerken

Execute Disable Bit
Ja
Idle States
Ja
Thermal Monitoring Technologies
Ja
Marktsegment
Desktop
Gebruiksvoorwaarden
PC/Client/Tablet, Workstation
Maximaal aantal PCI Express-lijnen
20
PCI Express slots versie
5.0, 4.0
PCI Express configuraties
1x16+1x4, 2x8+1x4
Ondersteunde instructie sets
SSE4.1, SSE4.2, AVX 2.0
Schaalbaarheid
1S

Kenmerken

CPU configuratie (max)
1
Ingebouwde opties beschikbaar
Ja
Directe media-interface (DMI) revisie
4.0
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
740.17B1

Processor speciale functies

Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® Turbo Boost Technology
2.0
Intel® Quick Sync Video Technology
Ja
Intel® Clear Video HD Technology (Intel® CVT HD)
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Enhanced Intel SpeedStep Technology
Ja
Intel® Trusted Execution Technology
Ja
Intel® Speed Shift-technologie
Ja
Intel® Thermal Velocity Boost
Ja
Intel® Adaptive Boost-technologie
Ja
Intel® Turbo Boost Max Technology 3.0 frequency
5,5 GHz
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0
Ja
Intel® Thermal Velocity Boost Frequency
5,6 GHz
Intel® Control-flow Enforcement Technology (CET)
Ja
Intel® Thread Director
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® Secure Key
Ja
Intel® Active Management Technology (Intel® AMT)
Ja
Intel® Stable Image Platform Program (SIPP)
Ja
Intel® OS Guard
Ja
Intel® 64
Ja
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® Turbo Boost Max Technology 3.0
Ja
Intel® Boot Guard
Ja
Intel® Deep Learning Boost (Intel® DL Boost)
Ja
Intel® Volume Management Device (VMD)
Ja
Mode-based Execute Control (MBE)
Ja
Intel® vPro™ Platform Eligibility
Ja
Intel® Standard Manageability (ISM, Standaard beheerbaarheid)
Ja
Intel® One-Click Recovery (Herstel met 1 klik)
Ja
Intel® Remote Platform Erase (RPE)
Ja
Intel® virtualisatietechnologie met omleidingsbescherming (VT-rp)
Ja
Intel vPro® Enterprise-platformvoorwaarden
Ja
Intel®-technologie voor dreigingsdetectie (TDT)
Ja
Intel® Hardware Shield-voorwaarden
Ja
Intel® totale geheugencodering - Meerdere sleutels
Ja
Intel vPro® Essentials-platformvoorwaarden
Ja

Eisen aan de omgeving

Tjunction
100 °C

Technische details

Doelgroep
Gaming, Content Creation
OpenCL-versie
3.0
Lanceringsdatum
Q1'23
Status
Launched

Logistieke gegevens

Code geharmoniseerd systeem (HS)
8542310001

Verpakking

Type verpakking
Retaildoos

Gewicht en omvang

Verpakkingsgrootte processor
45 x 37.5 mm

Overige specificaties

L2 cache
32768 KB
Maximum intern geheugen
128 GB
Grafische uitvoer
eDP 1.4b, DP 1.4a, HDMI 2.1
