Intel EXPI9301CTBLK netwerkkaart Intern 1000 Mbit/s

Intel EXPI9301CTBLK, Intern, Bedraad, PCI Express, 1000 Mbit/s

Ruim op voorraad

Fabrikant Intel
MPN EXPI9301CTBLK
EAN 0735858202176
€ 52,00 excl. BTW

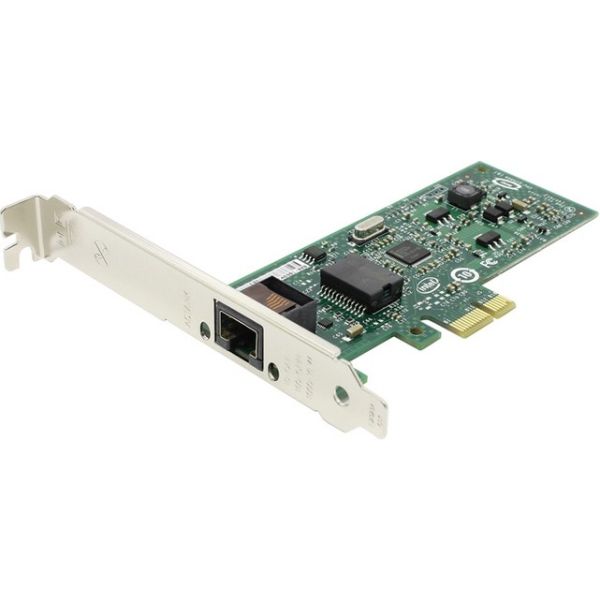

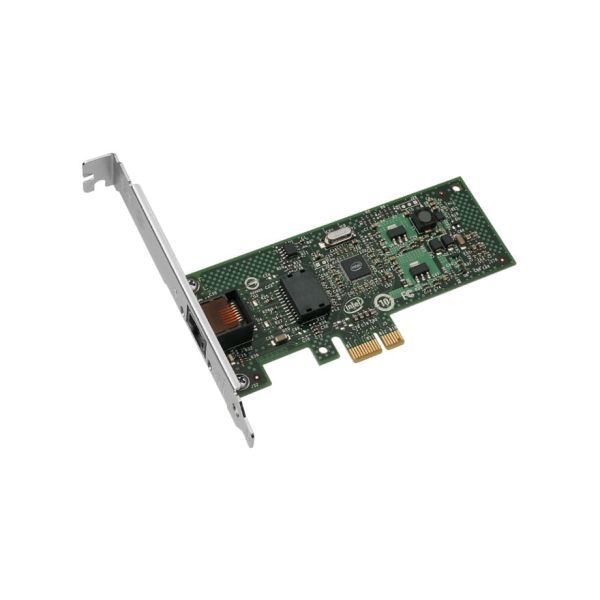

Intel EXPI9301CTBLK netwerkkaart Intern 1000 Mbit/s

For PCs with PCI Express (PCIe*) slots, the Intel® Gigabit CT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel® 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Aantal Ethernet LAN (RJ-45)-poorten
1
PCI versie
1.1

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Maximale afstand
100 m
LAN controller
Intel® 82574L

Design

Intern*
Ja
Certificering
FCC B, UL, CE

Energie

Stroomverbruik (typisch)
1,9 W

Minimale systeemeisen

Compatibele besturingssystemen
Windows 2000/XP/Vista/Server 2003/Server 2008, Linux, DOS

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C

Gewicht en omvang

Breedte
55,3 mm
Diepte
119,2 mm
Hoogte
120 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Voldoet aan industriestandaarden
802.3z

Overige specificaties

Soort kabel
Category-5 up to 100m
Marktsegment
Desktop
Ondersteunde data-overdrachtsnelheden
10/100/1000 Mbit/s
Snelheid en sleuf breedte
2.5 GT/s, x1 Lane
Lage halogeen opties beschikbaar
Nee
Soort aansluiting
PCIe v1.1 (2.5 GT/s)
Lanceringsdatum
Q3'08
Kaartkabeldrager netwerkinterface
Copper
Kaarttype netwerkinterface
Desktop
URL productsamenvatting
http://www.intel.com/Assets/PDF/prodbrief/319831.pdf
Type product
Network Interface Card
Status
Launched
Thermal Design Power (TDP)
1,9 W
Laatste wijziging
63903513
Processorfamilie
Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Ethernet-adapter ARK ID
50395
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Optische drivecontroller
Intel 82574L
Bekabelingstype
Category-5 up to 100m
Brackethoogte
Low-Profile (LP) / Full-Height (FH)
Productfamilie
Intel Gigabit desktop adapter
Productserie
Intel Gigabit CT
Productcodenaam
Shelter Island
