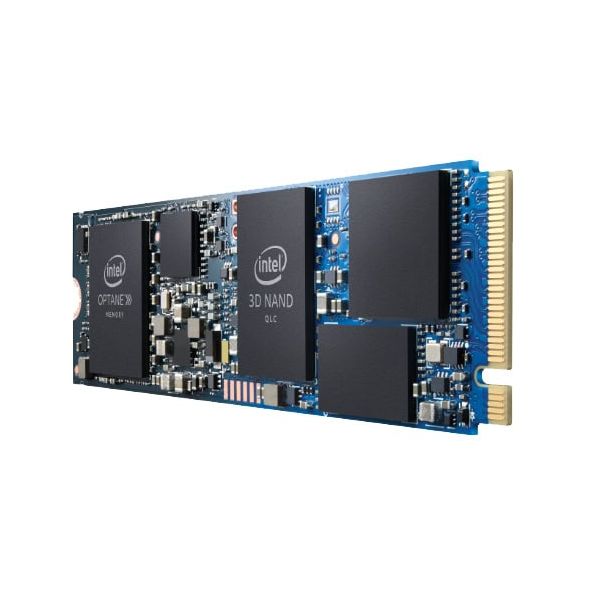

Intel Optane HBRPEKNX0203A01 internal solid state drive M.2 1000 GB PCI Express 3.0 3D XPoint + QLC 3D NAND NVMe
Intel Optane HBRPEKNX0203A01, 1000 GB, M.2
Ruim op voorraad (levering verwacht binnen 3 dagen)
Fabrikant
Intel
MPN
HBRPEKNX0203A01
EAN
0735858397094
€ 246,00
excl. BTW
€ 246,00
excl. BTW
excl. BTW
Intel Optane HBRPEKNX0203A01 internal solid state drive M.2 1000 GB PCI Express 3.0 3D XPoint + QLC 3D NAND NVMe
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Intel® Rapid Start Technology
Intel® Rapid Start Technology allows quick system resumes from the hibernate state.
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Intel® Rapid Start Technology
Intel® Rapid Start Technology allows quick system resumes from the hibernate state.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Kenmerken
SSD-vormfactor*
M.2
SSD capaciteit*
1000 GB
Interface*
PCI Express 3.0
Type geheugen*
3D XPoint + QLC 3D NAND
NVMe*
Ja
Component voor*
PC/notebook
Leeslatentie
7 µs
Schrijflatentie
18 µs
End-to-End Data Protection
Ja
Enhanced Power Loss Data Protection technology
Ja
SSD temperatuur bewaking
Ja
Temperatuurbewaking en -registratie
Ja
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^15 bits read
Mean time between failures (MTBF)
1600000 uur
SSD ARK ID
189611
Energie
Stroomverbruik (lezen)
5,8 W
Stroomverbruik (schrijven)
5,8 W
Stroomverbruik (idle)
0,013 W
Brand-specifieke functies
Intel® Rapid Start Technology
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 70 °C
Eisen aan de omgeving
Maximale temperatuur (in bedrijf)
70 °C
Trillingen, in bedrijf
2,17 G
Trillingen bij opslag
3,13 G
Schokbestendigheid
1000 G
Schokbestendigheid (buiten gebruik)
1500 G
Schok in/buiten gebruik
1000 G / 0.5 ms and 1500 G / 0.5 ms
Gewicht en omvang
Breedte
80 mm
Hoogte
22 mm
Gewicht
10 g
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84717070
Overige specificaties
Lanceringsdatum
04/10/2019
URL productsamenvatting
https://www.intel.com/content/www/us/en/products/docs/memory-storage/optane-memory/optane-memory-h10-solid-state-storage-brief.html
Random schrijven (8 GB span)
250000 IOPS
SSD-uithoudingsrating
300 TBW
SSD-stroomverbruik (inactief)
L1.2 : <13mW
Sequentiële leessnelheid
2400 MB/s
Sequentiële schrijfsnelheid
1800 MB/s
Status
Launched
Random lezen (8 GB span)
330000 IOPS
