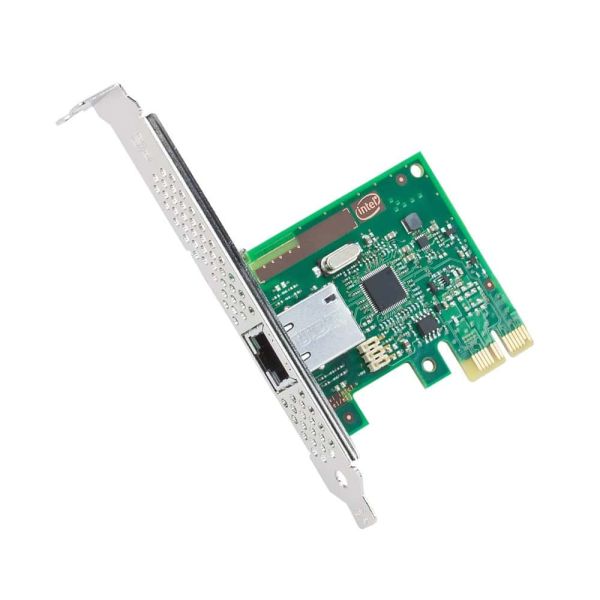

Intel I210T1 netwerkkaart Intern Ethernet
Single-Port Gigabit Ethernet server adapter designed for entry-level servers and Audio-Video applications
- Low-halogen1 single-port PCI-Express* 10/100/1000 Ethernet adapter
- Innovative power management features including Energy Effcient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased effciency and reduced power consumption
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream syn-chronization, buffering, and reservation
- High-performing design supporting PCI Express* Gen 2.1 2.5GT/s
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
- Low-halogen1 single-port PCI-Express* 10/100/1000 Ethernet adapter
- Innovative power management features including Energy Effcient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased effciency and reduced power consumption
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream syn-chronization, buffering, and reservation
- High-performing design supporting PCI Express* Gen 2.1 2.5GT/s
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
1
PCI versie
2.1
Netwerk
Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Bekabelingstechnologie
10/100/1000BaseT(X)
Maximale afstand
100 m
LAN controller
Intel I210
Design
Intern*
Ja
Compatibele producten
Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL
Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC
, P4308IP4LHJCL
Gewicht en omvang
Breedte
65 mm
Diepte
20 mm
Hoogte
55 mm
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
Overige specificaties
Soort kabel
RJ45 Category 5, up to 100 m
Marktsegment
Server
Thermisch vermogen
1 W
Intel® Virtual Machine Device Queues (VMDq)
Nee
PCI-SIG* SR-IOV Capable
Nee
On-chip QoS and Traffic Management
Nee
Intel® Flexible Port Partitioning
Nee
Snelheid en sleuf breedte
2.5 GT/s, x1 Lane
Overige specificaties
Lage halogeen opties beschikbaar
Nee
Intelligent Offloads
Ja
iWARP/RDMA
Nee
Fiber Channel over Ethernet
Nee
Intel® Ethernet Power Management
Ja
Intel® Data Direct I/O Technology
Nee
Soort aansluiting
PCIe v2.1 (2.5 GT/s)
Conflict Free
Ja
Introductiedatum
Q1'13
Lanceringsdatum
Q1'13
Kaartkabeldrager netwerkinterface
Copper
Kaarttype netwerkinterface
Server
URL productsamenvatting
http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html
Productnaam
Intel Ethernet Server Adapter I210-T1
Type product
Network Interface Card
Status
Launched
Thermal Design Power (TDP)
1 W
aantal QPI links
Single
Laatste wijziging
63903513
Processorfamilie
Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Ethernet-adapter ARK ID
68668
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Optische drivecontroller
Intel I210
Bekabelingstype
RJ45 Category 5, up to 100 m
Brackethoogte
Low-Profile (LP) / Full-Height (FH)
Productfamilie
Intel Gigabit server adapter
Productserie
Intel I210
