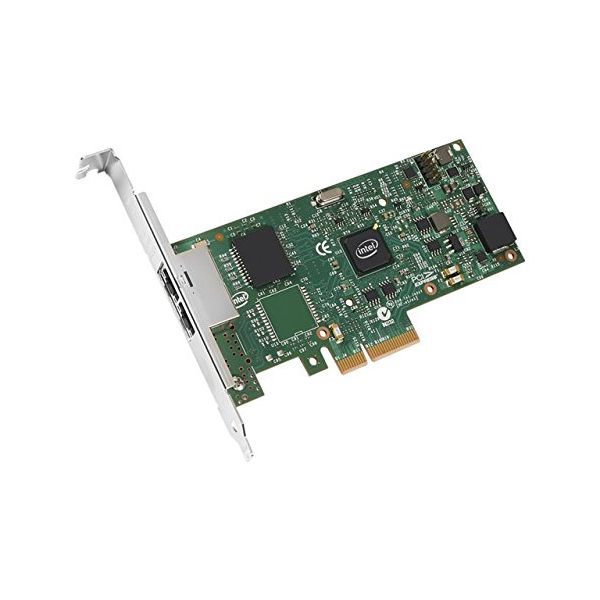

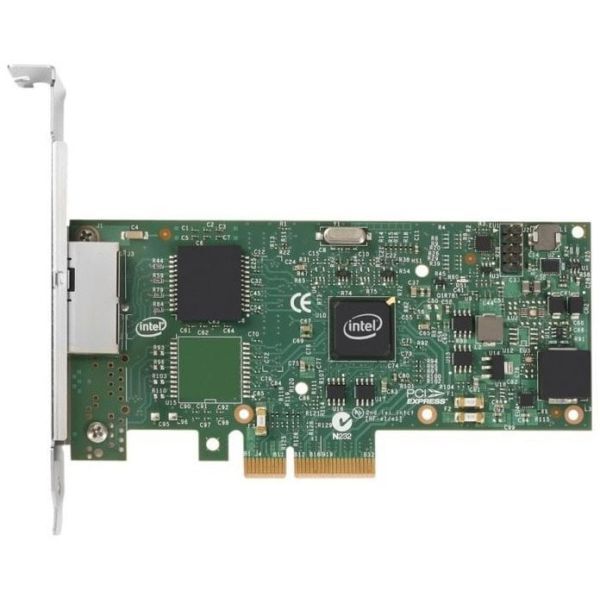

Intel I350T2V2 netwerkkaart Intern Ethernet 1000 Mbit/s

Intel I350T2V2, Intern, Bedraad, PCI Express, Ethernet, 1000 Mbit/s

Nog 15 beschikbaar

Fabrikant Intel
MPN I350T2V2
EAN 0735858286091
€ 97,00 excl. BTW

Intel I350T2V2 netwerkkaart Intern Ethernet 1000 Mbit/s

Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Ethernet
Aantal Ethernet LAN (RJ-45)-poorten
2
PCI versie
2.1
PCI Card form factor
Full-height (low-profile)

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Netwerkstandaard*
IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN
Ja
Ethernet LAN, data-overdrachtsnelheden
1000 Mbit/s
Bekabelingstechnologie
10/100/1000BaseT(X)
Full duplex
Ja
Ondersteunde netwerkprotocollen
TCP, UDP, IP
Maximale afstand
100 m
LAN controller
Intel® I350

Design

Component voor*
Server
Intern*
Ja
Chipset
Intel® I350

Energie

Stroomverbruik (typisch)
5 W

Minimale systeemeisen

Compatibele besturingssystemen
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
35 - 90 procent

Gewicht en omvang

Breedte
68,9 mm
Diepte
135,4 mm
Hoogte
120 mm

Inhoud van de verpakking

Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
8517620090

Overige specificaties

Soort kabel
Cat 5 up to 100m
Marktsegment
Server
Intel® Virtual Machine Device Queues (VMDq)
Ja
PCI-SIG* SR-IOV Capable
Ja
On-chip QoS and Traffic Management
Ja
Intel® Flexible Port Partitioning
Ja
Storage-over-ethernet
Ja
Snelheid en sleuf breedte
5.0 GT/s, x4 Lane
Lage halogeen opties beschikbaar
Nee
Intelligent Offloads
Ja
iWARP/RDMA
Nee
Intel® Ethernet Power Management
Ja
Intel® Virtualization Technology for Connectivity (VT-c)
Ja
Soort aansluiting
PCIe v2.1 (5.0 GT/s)
Opslag via ethernet
iSCSI, NFS
Lanceringsdatum
Q3'14
Kaartkabeldrager netwerkinterface
Copper
Kaarttype netwerkinterface
Server
URL productsamenvatting
http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Type product
Network Interface Card
Status
Launched
Thermal Design Power (TDP)
4,4 W
Laatste wijziging
63903513
Processorfamilie
Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Ethernet-adapter ARK ID
84804
Export Control Classification Number (ECCN)
5A991.B.4.A
Commodity Classification Automated Tracking System (CCATS)
NA
Optische drivecontroller
Intel I350
Bekabelingstype
Cat 5 up to 100m
Brackethoogte
Low-Profile (LP) / Full-Height (FH)
Productfamilie
Intel Gigabit server adapter
Productserie
Intel® I350
Productcodenaam
Powerville
