Intel Server System M50FCP2UR312, Intel C741, LGA 4677 (Socket E), Intel, Intel® Xeon®, DDR5-SDRAM, 12 TB

Ruim op voorraad

Fabrikant Intel
MPN M50FCP2UR312
EAN 0675901976367

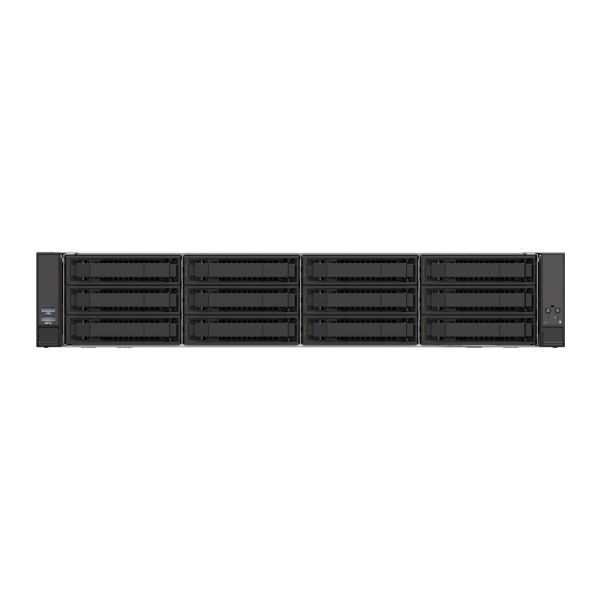

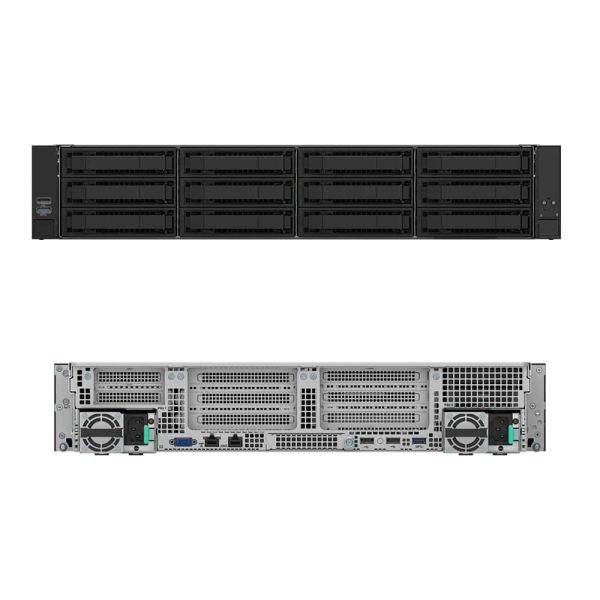

Intel Server System M50FCP2UR312 Intel C741 LGA 4677 (Socket E) Rack (2U)

Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

TPM Version
TPM (Trusted Platform Module) is a component that provides hardware level security upon system boot-up via stored security keys, passwords, encryption and hash functions.

Integrated BMC with IPMI
IPMI (Intelligent Platform Management Interface) is a standardized interface used for out-of-band management of computer systems. The integrated BMC (Baseboard Management Controller) is a specialized microcontroller that enables IPMI.

Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.

RAID Configuration
RAID (Redundant Array of Independent Disks) is a storage technology that combines multiple disk drive components into a single logical unit, and distributes data across the array defined by RAID levels, indicative of the level of redundancy and performance required.

Intel® Remote Management Module Support
The Intel® Remote Management Module (Intel® RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).

Intel® Advanced Management Technology
Intel® Advanced Management Technology features an isolated, independent, secure, and highly reliable network connection, with an Integrated Baseboard Management Controller (Integrated BMC) configuration from within BIOS. Also includes an embedded web user interface that launches key platform diagnostic capabilities over the network, an out-of-band (OOB) platform inventory, failsafe firmware updates, and an automatic Integrated BMC stall detection and reset.

Intel® Total Memory Encryption
TME – Total Memory Encryption (TME) helps protect data against exposure via physical attack on memory, such as cold-boot attacks.

Max # of UPI Links
Intel® Ultra Path Interconnect (UPI) links are a high speed, point-to-point interconnect bus between the processors, delivering increased bandwidth and performance over Intel® QPI.

Intel® Node Manager
Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.

Intel® Optane™ Persistent Memory Supported
Intel® Optane™ persistent memory is a revolutionary tier of non-volatile memory that sits between memory and storage to provide large, affordable memory capacity that is comparable to DRAM performance.  Delivering large system-level memory capacity when combined with traditional DRAM, Intel Optane persistent memory is helping transform critical memory constrained workloads – from cloud, databases, in-memory analytics, virtualization, and content delivery networks.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Type processor*
Nee
Chipset moederbord*
Intel C741
Processor socket*
LGA 4677 (Socket E)
Processorfabrikant
Intel
Aantal ondersteunde processoren*
2
Compatibele processors
Intel® Xeon®

Geheugen

Aantal DIMM sloten*
32
Ondersteunde geheugen types*
DDR5-SDRAM
Maximum intern geheugen
12 TB

Opslagmedia

Aantal storage drives ondersteund*
12
Hot-swap HDD bays*
Ja
Aantal 3.5" bays
12
Opslagschijf afmetingen ondersteund
3.5"
Ondersteunde types opslag-drives
HDD & SSD
Soorten RAID
0, 1, 5, 10

Poorten & interfaces

Aantal USB-aansluitingen
5
Aantal USB 2.0-poorten*
3
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
Seriële poort(en)
1
Aantal SATA-aansluitingen
10

Uitbreidingsmodules

PCI Express slots versie
5.0

Kenmerken

Geïntegreerde BMC met IPMI
Ja
Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
2.0
Intel® Optane™ DC Persistent Memory ondersteunt
Ja
Intel Node Manager
Ja
Aantal UPI-koppelingen
3
Backplanes ondersteund
Ja
Export Control Classification Number (ECCN)
5A002U
Commodity Classification Automated Tracking System (CCATS)
G157815L1
ARK ID
229746

Logistieke gegevens

Code geharmoniseerd systeem (HS)
8473305100

Processor speciale functies

Intel® Advanced Management Technology
Ja
Intel® Remote Management Module Support
Intel® Intel®ligent Power Node Manager
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® Optane™ Memory Ready
Ja

Design

Type behuizing*
Rack (2U)
Rekrails
Nee
Rack-Friendly board
Ja
Overtollige fans ondersteuning
Ja
Koellichaam inclusief
Ja

Energie

Soort voeding
AC
Netvoeding*
2100 W
Redundante voeding
Ja
Thermal Design Power (TDP)
250 W

Gewicht en omvang

Breedte
770 mm
Diepte
438 mm
Hoogte
87 mm

Overige specificaties

CPU configuratie (max)
2
Ingebouwde grafische adapter
Nee
Bijkopen verlengde garantie beschikbaar (selecteer landen)
Ja
Lanceringsdatum
Q1'23
Aantal lanes risersleuf 1
32
Aantal lanes risersleuf 2
32
Status
Launched
Ondersteunde RAID-configuratie
0/1/5/10
Ondersteund moederbord
Intel Server Board M50FCP2SBSTD
Doelgroep
Mainstream
Aantal lanes risersleuf 3
16
