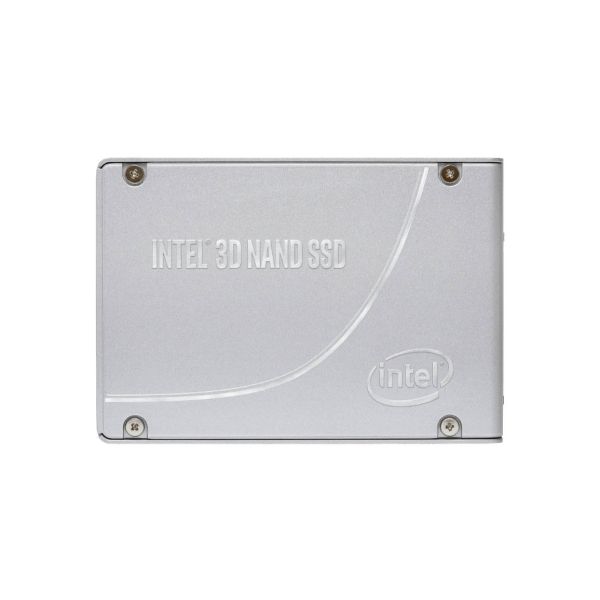

Intel SSDPE2KE016T801, 1600 GB, U.2, 3200 MB/s

Ruim op voorraad

Fabrikant Intel
MPN SSDPE2KE016T801
EAN 0735858385398

Intel SSDPE2KE016T801 internal solid state drive U.2 1600 GB PCI Express 3.1 TLC 3D NAND NVMe

Enhanced Power Loss Data Protection

Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Hardware Encryption

Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.

High Endurance Technology (HET)

High Endurance Technology (HET) in SSD's combines Intel® NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.

Temperature Monitoring and Logging

Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

End-to-End Data Protection

End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Ondersteunde beveiligingsalgoritmen
256-bit AES
SSD-vormfactor*
U.2
SSD capaciteit*
1600 GB
Interface*
PCI Express 3.1
Type geheugen*
TLC 3D NAND
NVMe*
Ja
Component voor*
Server/werkplaats
Hardware encryptie*
Ja
Leessnelheid
3200 MB/s
Schrijfsnelheid
2080 MB/s
Random read (4KB)
643000 IOPS
Random write (4KB)
199000 IOPS
Random lezen (100% span)
643000 IOPS
Random schrijven (100% span)
199000 IOPS
Willekeurige latentie - lezen (tot)
95 µs
Willekeurige latentie - schrijven (tot)
20 µs
Sequentiële latentie - lezen (tot)
12 µs
Sequentiële latentie - schrijven (tot)
18 µs
Leeslatentie
77 µs
Schrijflatentie
18 µs
End-to-End Data Protection
Ja
Enhanced Power Loss Data Protection technology
Ja
SSD temperatuur bewaking
Ja
Temperatuurbewaking en -registratie
Ja
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^17 bits read
Mean time between failures (MTBF)
2000000 uur
Marktsegment
Server
SSD ARK ID
140103
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G162706

Energie

Stroomverbruik (lezen)
14 W
Stroomverbruik (schrijven)
14 W
Stroomverbruik (idle)
5 W

Brand-specifieke functies

Intel® High Endurance Technology (HET)
Ja
Intel® Rapid Start Technology
Nee
Intel® Remote Secure Erase
Nee
Intel® Smart Response Technology
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Maximale temperatuur (in bedrijf)
55 °C
Trillingen, in bedrijf
2,17 G
Trillingen bij opslag
3,13 G
Schokbestendigheid
1000 G
Schokbestendigheid (buiten gebruik)
100 G
Schok in/buiten gebruik
1000G (0.5ms)

Gewicht en omvang

Breedte
15 mm
Gewicht
139 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84717070

Overige specificaties

Stroomverbruik (indien actief)
14 W
Capaciteit drive
1600 GB
Lanceringsdatum
Q2'18
SSD-uithoudingsrating
12.25PBW
SSD-hardwarecodering
AES 256 bit
SSD-stroomverbruik (actief)
14W
SSD-stroomverbruik (inactief)
5W
SSD-schok
1000G (0.5ms)
SSD-gewicht
139 g
Sequentiële leessnelheid
3200 MB/s
Sequentiële schrijfsnelheid
2080 MB/s
Status
Launched
Laatste wijziging
63903513
Productfamilie
Datacenter SSD
Productserie
Intel® SSD DC P4610 Series
Productcodenaam
Cliffdale Refresh
