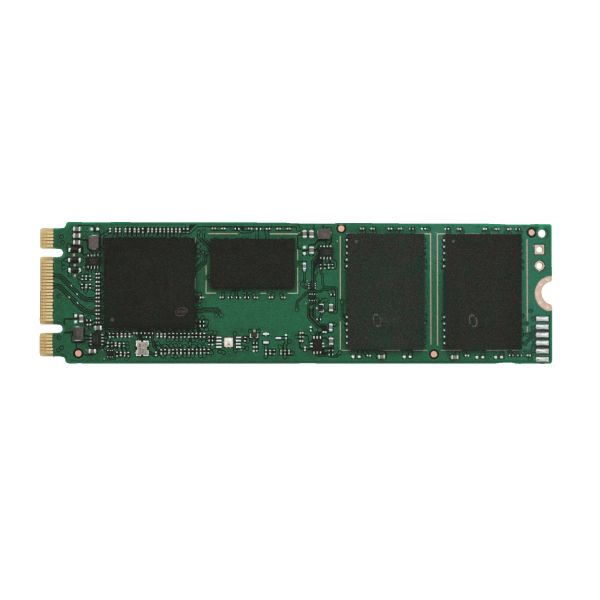

D3 SSDSCKKB240GZ01 internal solid state drive M.2 240 GB SATA III TLC 3D NAND

D3 SSDSCKKB240GZ01, 240 GB, M.2, 400 MB/s

Niet op voorraad

Fabrikant Intel
MPN SSDSCKKB240GZ01
EAN 0735858482608
€ 103,00 excl. BTW

D3 SSDSCKKB240GZ01 internal solid state drive M.2 240 GB SATA III TLC 3D NAND

Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.

End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Ondersteunde beveiligingsalgoritmen
256-bit AES
SSD-vormfactor*
M.2
SSD capaciteit*
240 GB
Interface*
SATA III
Type geheugen*
TLC 3D NAND
NVMe*
Nee
Component voor*
Server/werkplaats
Hardware encryptie*
Ja
Leessnelheid
400 MB/s
Schrijfsnelheid
233 MB/s
Random read (4KB)
42000 IOPS
Random write (4KB)
14500 IOPS
Random lezen (100% span)
42000 IOPS
Random schrijven (100% span)
14500 IOPS
Willekeurige latentie - lezen (tot)
102 µs
Willekeurige latentie - schrijven (tot)
63 µs
Sequentiële latentie - lezen (tot)
36 µs
Sequentiële latentie - schrijven (tot)
36 µs
End-to-End Data Protection
Ja
Enhanced Power Loss Data Protection technology
Ja
SSD temperatuur bewaking
Ja
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^17 bits read
Mean time between failures (MTBF)
2000000 uur
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G162706

Energie

Stroomverbruik (lezen)
2,1 W
Stroomverbruik (schrijven)
2,1 W
Stroomverbruik (idle)
0,9 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Maximale temperatuur (in bedrijf)
70 °C
Trillingen, in bedrijf
2,17 G
Trillingen bij opslag
3,13 G
Schokbestendigheid
1000 G
Schokbestendigheid (buiten gebruik)
1000 G

Gewicht en omvang

Breedte
80 mm
Hoogte
22 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84717070

Overige specificaties

Intern geheugentype
SATA 3.0 6Gb/S
Stroomverbruik (indien actief)
2,1 W
Lanceringsdatum
Q3'21
SSD-uithoudingsrating
1.0 PBW
SSD-schok
1000G,0.5ms
Sequentiële leessnelheid
400 MB/s
Sequentiële schrijfsnelheid
233 MB/s
Status
Launched
Processorfamilie
Intel SSD D3
