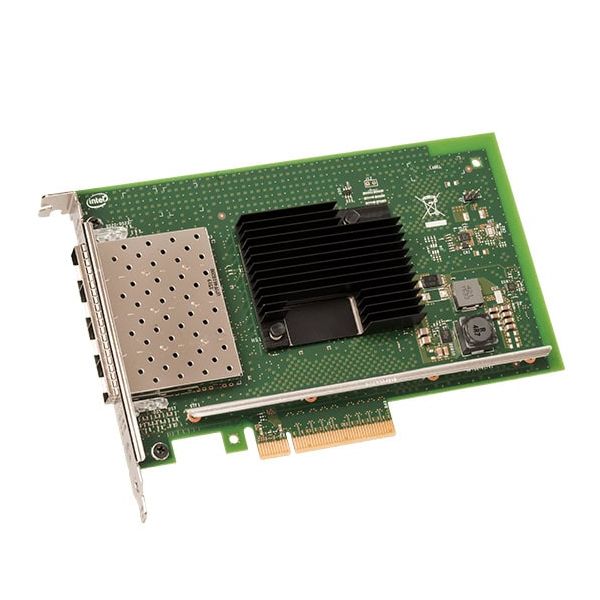

Intel X710DA4FHBLK netwerkkaart Intern Fiber 10000 Mbit/s

Intel X710DA4FHBLK, Intern, Bedraad, PCI Express, Fiber, 10000 Mbit/s, Zwart, Groen, Roestvrijstaal

Ruim op voorraad

Fabrikant Intel
MPN X710DA4FHBLK
EAN 5032037063425
€ 371,00 excl. BTW

Intel X710DA4FHBLK netwerkkaart Intern Fiber 10000 Mbit/s

Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.

Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance

PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Aantal Ethernet LAN (RJ-45)-poorten
4
Fibre channel-poorten
4
Vezel-optische connector
SFP+
PCI versie
3.0

Netwerk

Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,1000 Mbit/s
Fiber ethernet cabling technologie
10GBASE-LR, 10GBASE-SR
Quality of Service (QoS)
Ja
Maximale afstand
10 m
LAN controller
Intel® XL710-BM1

Design

Kleur van het product
Zwart, Groen, Roestvrijstaal
Intern*
Ja
LED-indicatoren
Ja
Certificering
FCC A, UL, CE, VCCI, BSMI, CTICK, KCC

Minimale systeemeisen

Compatibele besturingssystemen
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Gewicht en omvang

Breedte
167 mm
Diepte
111 mm

Verpakking

Aantal
1

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Gegevensoverdrachtsnelheid
8 GT/s
Soort kabel
SFP+ Direct Attached Twin Axial Cabling up to 10m
Marktsegment
Server

Overige specificaties

Doelgroep
Artificial Intelligence, High Performance Computing
Intel® Virtual Machine Device Queues (VMDq)
Ja
PCI-SIG* SR-IOV Capable
Ja
On-chip QoS and Traffic Management
Ja
Intel® Flexible Port Partitioning
Ja
Storage-over-ethernet
Ja
Snelheid en sleuf breedte
8.0 GT/s, x8 Lane
Lage halogeen opties beschikbaar
Nee
Intelligent Offloads
Ja
iWARP/RDMA
Nee
Fiber Channel over Ethernet
Nee
Intel® Ethernet Power Management
Ja
Intel® Data Direct I/O Technology
Ja
Intel® Virtualization Technology for Connectivity (VT-c)
Ja
Soort aansluiting
PCIe v3.0 (8.0 GT/s)
Opslag via ethernet
iSCSI NFS
Conflict Free
Ja
Lanceringsdatum
Q4'14
Kaartkabeldrager netwerkinterface
Copper
Kaarttype netwerkinterface
Server
URL productsamenvatting
https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x710-brief.html
Type product
Network Interface Card
Status
Launched
Laatste wijziging
64826826
Processorfamilie
700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
Ethernet-adapter ARK ID
83965
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Optische drivecontroller
Intel® Ethernet Controller X710
Bekabelingstype
SFP+ Direct Attached Twin Axial Cabling up to 10m
Brackethoogte
Full-Height (FH)
Productfamilie
Intel 10 Gigabit server adapter
Productserie
700 Series Network Adapters (up to 40GbE)
Productcodenaam
Fortville
