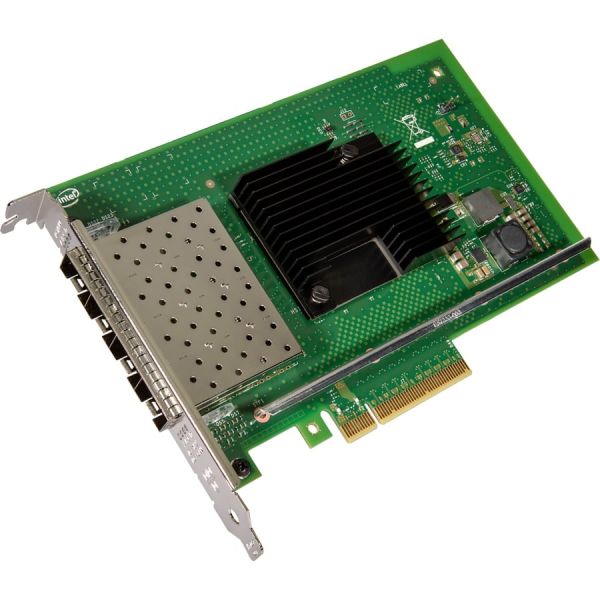

Intel X710-DA4, Intern, Bedraad, PCI Express, Fiber, 10000 Mbit/s, Zwart, Groen

Nog slechts 8 beschikbaar

Fabrikant Intel
MPN X710DA4G2P5
EAN 5032037081399

Intel X710-DA4 Intern Fiber 10000 Mbit/s

Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
4
PCI Card form factor
Half-height (low-profile)

Netwerk

Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad
Ethernet interface type
10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
1000,10000 Mbit/s
Bekabelingstechnologie
10GBase-T
VLAN-tagging
Ja
iSCSI support
Ja
LAN controller
Intel® XL710-AM1

Design

Kleur van het product
Zwart, Groen
Intern*
Ja

Minimale systeemeisen

Compatibele besturingssystemen
intel.com/support/EthernetOS
Ondersteunt Linux
Ja
Ondersteunde server operating systems
Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Luchtvochtigheid bij opslag
0 - 90 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Gegevensoverdrachtsnelheid
8 GT/s
Soort kabel
SFP+ Direct Attached Twin Axial Cabling up to 10m
Aantal VLANs
4096
Intel® Virtual Machine Device Queues (VMDq)
Ja
PCI-SIG* SR-IOV Capable
Ja
On-chip QoS and Traffic Management
Ja
Intel® Flexible Port Partitioning
Ja
Intelligent Offloads
Ja
iWARP/RDMA
Nee
Fiber Channel over Ethernet
Nee
Intel® Ethernet Power Management
Ja
Intel® Data Direct I/O Technology
Ja
Intel® Virtualization Technology for Connectivity (VT-c)
Ja
Soort aansluiting
PCIe v3.0 (8.0 GT/s)
Type product
13
Status
Launched
Ethernet-adapter ARK ID
83965
Productfamilie
Intel 10 Gigabit server adapter
Productserie
Intel Converged X710
Productcodenaam
Fortville
