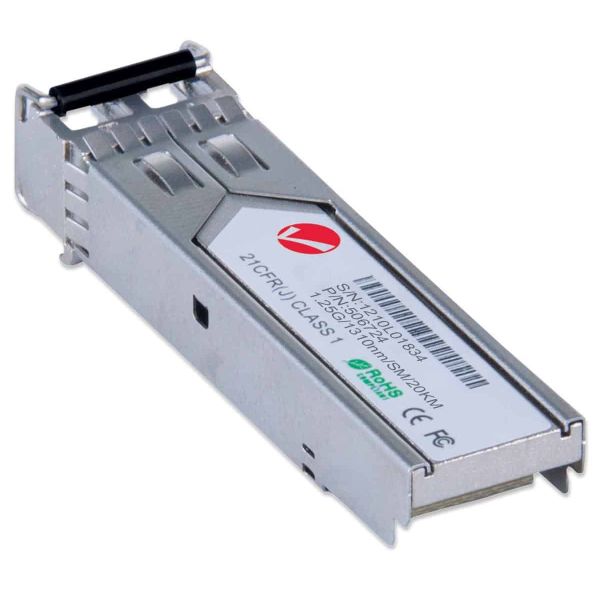

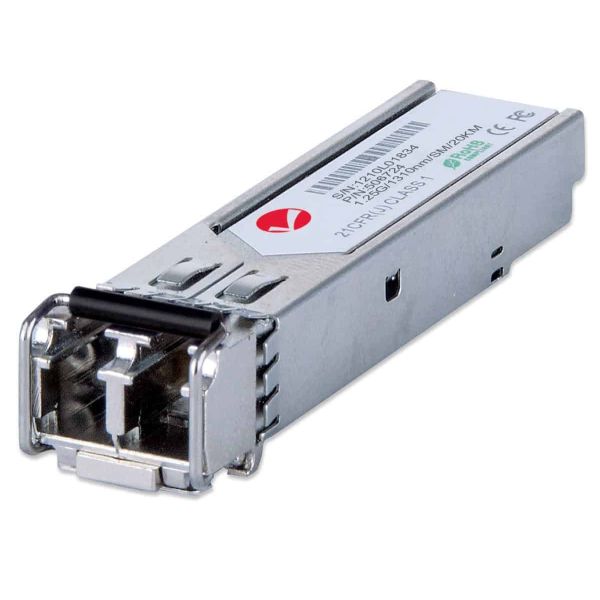

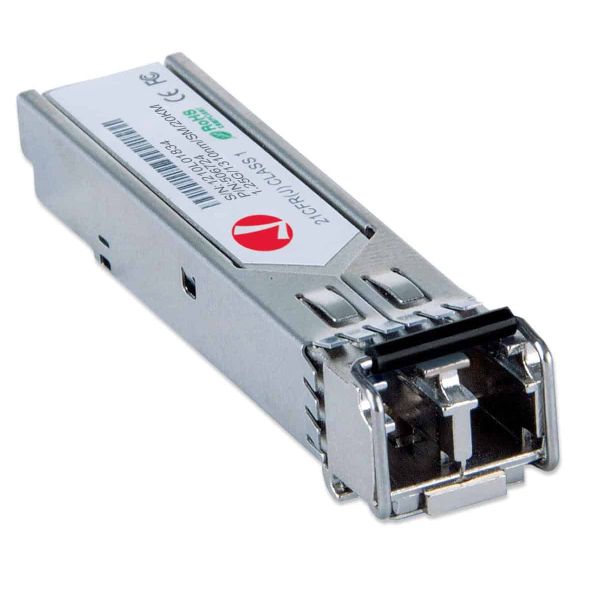

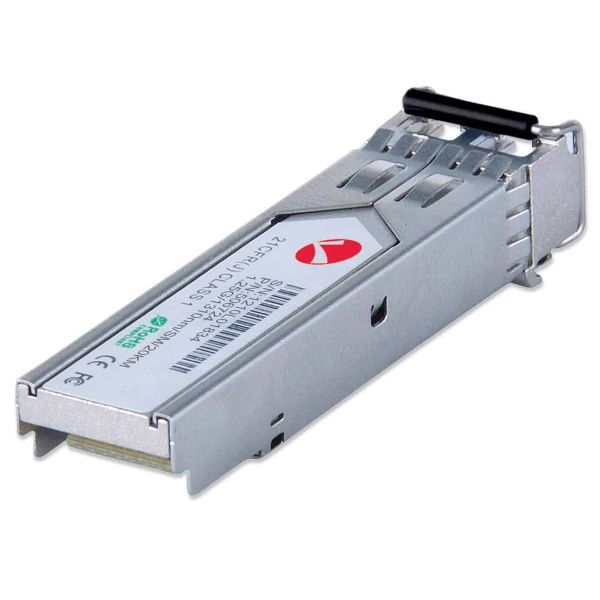

Intellinet 506724 netwerk transceiver module Vezel-optiek 1000 Mbit/s mini-GBIC 1310 nm

Intellinet 506724, Vezel-optiek, 1000 Mbit/s, mini-GBIC, LC, 9/125 µm, LX

Nog slechts 6 beschikbaar

Fabrikant Intellinet
MPN 506724
EAN 0766623506724
€ 32,00 excl. BTW

Intellinet 506724 netwerk transceiver module Vezel-optiek 1000 Mbit/s mini-GBIC 1310 nm

The new Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceiver provides the best combination of performance and affordability. This mini-GBIC (Gigabit Interface Converter) module provides a metal housing to reduce electromagnetic interference and increases durability. _x000D_
_x000D_
Small Size for High-Density Fibre Connections _x000D_
The transceiver is available as a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. _x000D_
_x000D_
Multi-Vendor Compatible _x000D_
Compatibility in your network is everything, and the Intellinet SFP Transceiver Module delivers. Use it with any Intellinet SFP equipped network switch or any other MSA-compliant, SFP-enabled switch. And since the Intellinet SFP transceiver module is set to broadcast the vendor on GLC-LH-SM, compatibility to your Cisco gear is provided. _x000D_
_x000D_
Hot-Pluggable _x000D_
No need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy for you to make adjustments to your network that allow your business to keep pace with the changing demands of the market.
  • Data transfer rate: 1000 Mbps
  • One 1000Base-LX single-mode Fibre LC duplex port
  • Distance support: up to 20 km (12.4 mi.)
  • Wavelength: 1310 nm
  • SFP standard form factor
  • Compliant with SFP Transceiver MSA specifications
  • Compatible with the Cisco GLC-LH-SM transceiver
  • Supports hot-plugging
  • Three-Year Warranty

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

SFP transceiver type*
Vezel-optiek
Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Soort aansluiting*
mini-GBIC
Single-mode glasvezelkabel (SMF) ondersteund
Ja
Multi-mode glasvezelkabel (MMF) ondersteund
Nee
Vezel-optische connector
LC
Vezelkabel diameters ondersteund
9/125 µm
SFP-zendernorm
LX
Maximaal bereik
20000 m
Golflengte
1310 nm
Tx vermogen (min)
-8 dBmW
Tx vermogen (max)
-3 dBmW
Link budget
8 dB
Ethernet interface type
Gigabit Ethernet
Netwerkstandaard
IEEE 802.3z
Duplex systeem
Volledig, Half

Kenmerken

Kleur van het product
Aluminium
Hot-plug ondersteuning
Ja
Certificering
FCC Class A, CE, RoHS, IEC-60825

Energie

Ingangsspanning
3.3 V
Stroomverbruik (typisch)
1 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent

Gewicht en omvang

Breedte
13 mm
Diepte
55 mm
Hoogte
12 mm
Gewicht
62 g

Verpakking

Aantal producten inbegrepen
1 stuk(s)

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85369010
