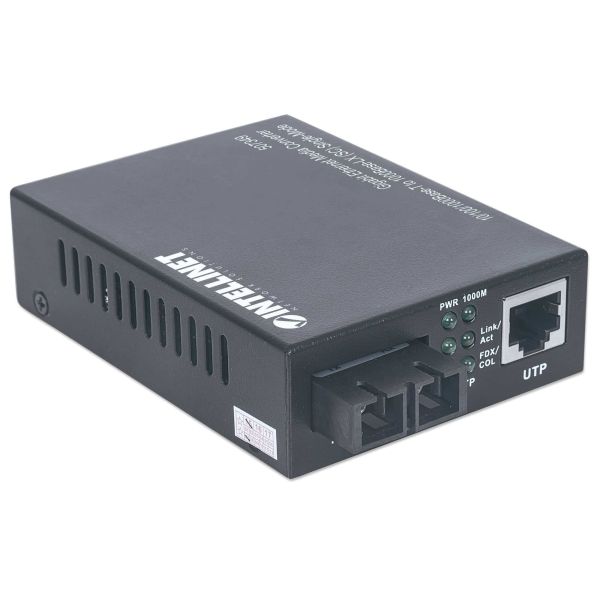

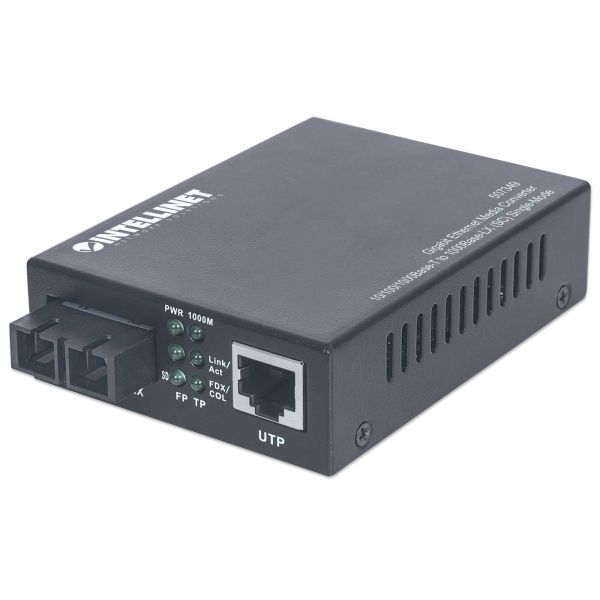

Intellinet 507349 netwerk media converter 1000 Mbit/s 1310 nm Single-mode Zwart
Nog 16 beschikbaar
Intellinet 507349 netwerk media converter 1000 Mbit/s 1310 nm Single-mode Zwart
_x000D_
Expands the Size of an Existing Network _x000D_
Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. _x000D_
_x000D_
Enhances the Distance between Networking Devices _x000D_
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device. _x000D_
_x000D_
Cabling Flexibility _x000D_
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location, and up to 14 media converters can be simultaneously installed into a 19"; rack-mountable chassis (model 507356).
- Fibre SC single-mode port connects over distances of up to 20 km (12.4 miles)
- Data transfer rate: 10/100/1000 Mbps
- 10/100/1000 Mbps auto-sensing Gigabit Ethernet RJ45 port with Auto MDI/MDI-X support
- RJ45 port with Auto MDI/MDI-X support and auto-negotiation
- 1000Base-LX single-mode Fibre SC duplex port
- Wavelength: 1310 nm

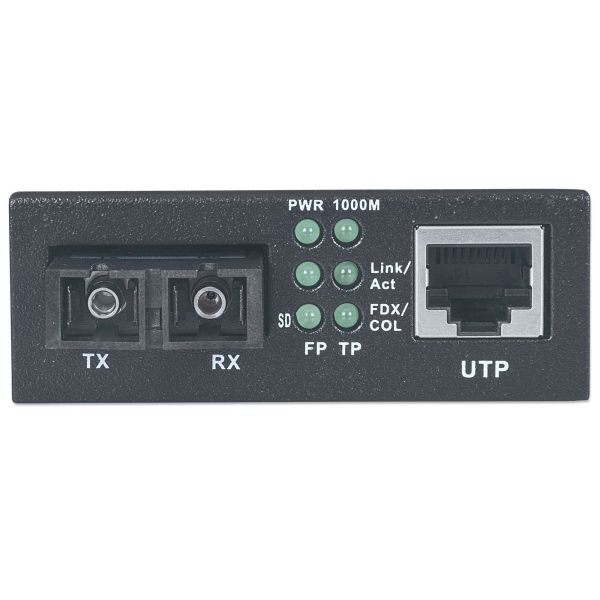

- Status LEDs for power and Link/TX for both ports

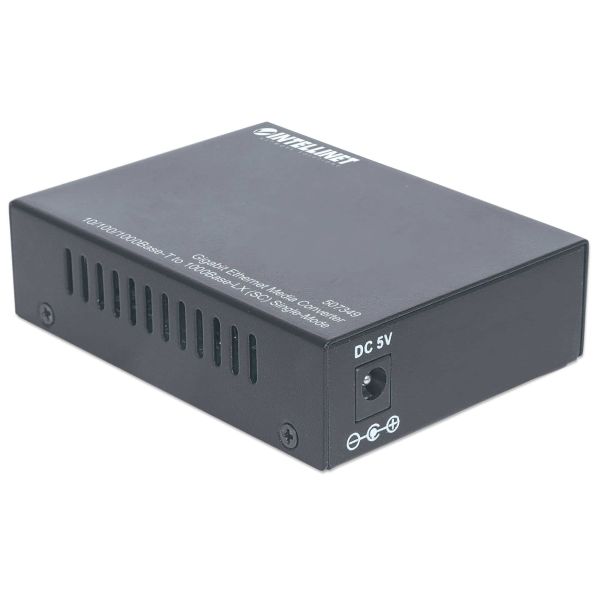

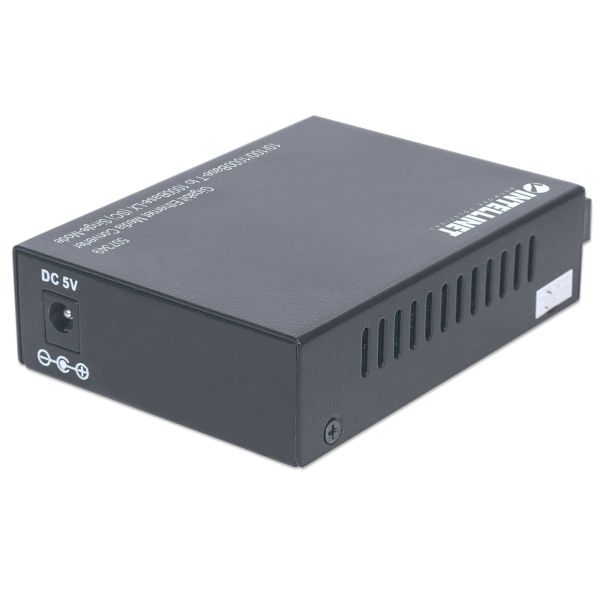

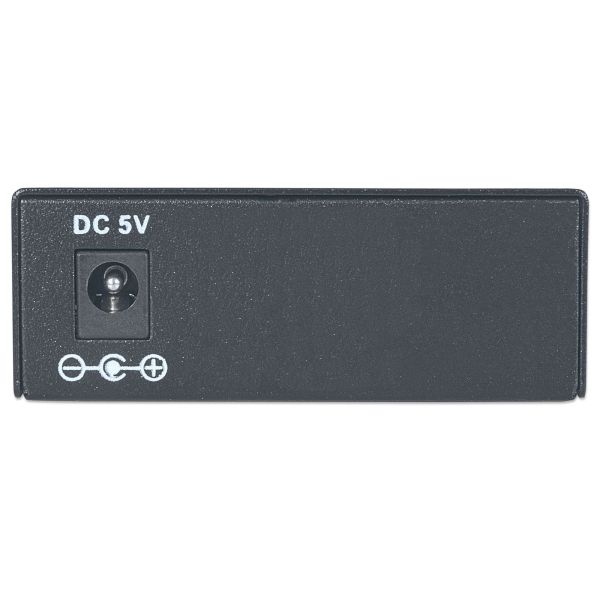

- External power adapter, 5 VDC
- Functions as a stand-alone converter or can be used with the 14-slot media converter chassis, model 507356
- Three-Year Warranty
