Intellinet 508216 netwerk media converter 1000 Mbit/s Zwart

Intellinet 508216, 1000 Mbit/s, 1000Base-T, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Gigabit Ethernet, 10,100,1000 Mbit/s, Volledig, Half

Nog slechts 8 beschikbaar

Fabrikant Intellinet
MPN 508216
EAN 0766623508216
€ 80,00 excl. BTW

Intellinet 508216 netwerk media converter 1000 Mbit/s Zwart

The Intellinet Network Solutions Gigabit PoE+ Media Converter offers simplified migration from copper-based Ethernet to Fibre Ethernet while providing power to a compatible device at up to 30 watts. The device creates the easy expansion of existing networks with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.

Expand the Size of an Existing Network.

The converter Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Since it offers building-to-building connectivity without the cost and disruption associated with the installation of additional routers, network admins can quickly incorporate this converter into their current setup and keep the network running like it should.

Power-over-Ethernet-Plus Capable

The Intellinet Gigabit PoE+ Media Converter brings power to where there is none, obviating the need to hire an electrician and run electrical lines. And because the converter supports the IEEE 802.3at / 802.3af standard, up to 30 watts is available for any compatible device.

Cabling Flexibility

Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.
  • One 10/100/1000 RJ45 port, maximum distance of 100 m (300 ft.)
  • One SFP port distance up to 120 km (75 mi.)
  • Link Fault Pass Through (LFP) function for easier network maintenance
  • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
  • Supports full-duplex and half-duplex mode with autonegotiation

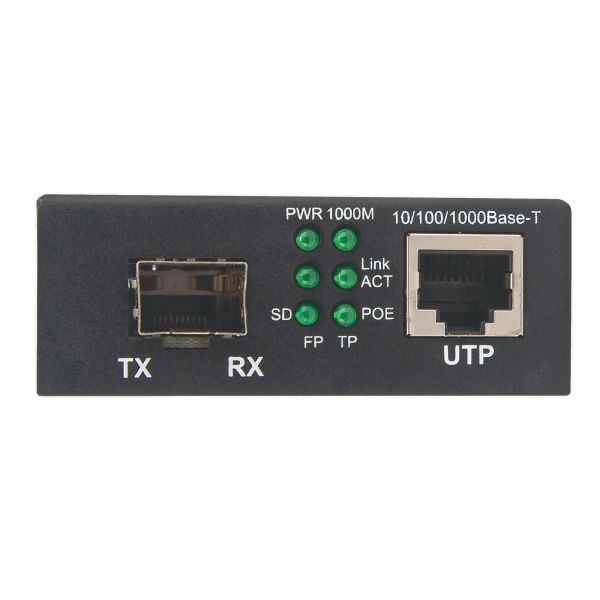

  • Status LEDs for power and Link/TX for both ports
  • IP30 slim-type metal case
  • Three-year warranty

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Converter input interface
1000Base-T
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Duplex systeem
Volledig, Half
Ondersteundende kabel types
Cat5

Poorten & interfaces

Connectiviteitstechnologie
Bedraad
Aantal Ethernet LAN (RJ-45)-poorten
1
Fibre channel-poorten
1
Vezel-optische connector*
SFP
Aansluiting voor netstroomadapter
Ja

Prestatie

Maximaal bereik*
120000 m

Design

Intern*
Nee
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom
Kleur van het product
Zwart
Materiaal behuizing
Metaal
Internationale veiligheidscode (IP)
IP30

Design

Certificering
FCC 15

Energie

Ingangsspanning
56 V
Stroom
0.5 A
Power over Ethernet (PoE)
Ja

Gewicht en omvang

Breedte
70 mm
Diepte
95 mm
Hoogte
25 mm
Gewicht
200 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 80 procent

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
