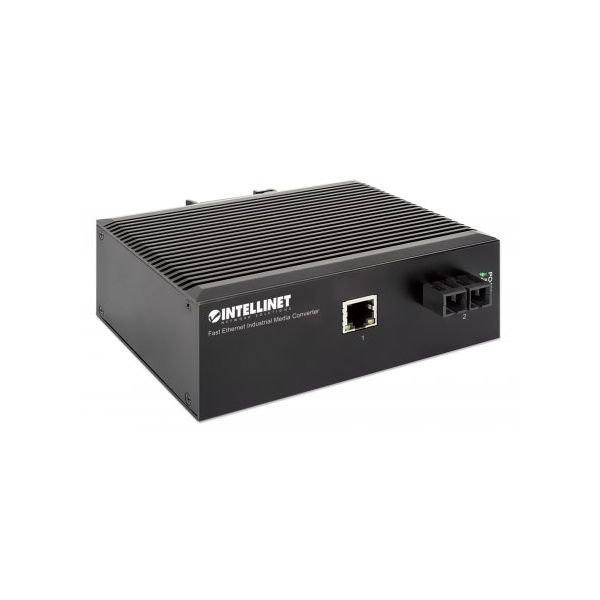

Intellinet 508322 netwerk media converter 1310 nm Single-mode Zwart

Intellinet 508322, IEEE 802.3, IEEE 802.3u, Fast Ethernet, 10,100 Mbit/s, Cat5e, UTP/STP, 20000 m

Nog 20 beschikbaar

Fabrikant Intellinet
MPN 508322
EAN 0766623508322
€ 106,00 excl. BTW

Intellinet 508322 netwerk media converter 1310 nm Single-mode Zwart

Industrial Media Converter - expand your existing network in harsh industrial environments
The Intellinet Network Solutions Fast Ethernet Industrial Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and fiber media. It provides fiber connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.

Equipped even for challenging environment conditions
With its rugged, protective, IP40-rated metal housing, the converter operates reliably, even in extreme temperatures from -40 - 75℃ (-40 - 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features, this converter is ideal for IoT applications in Industry 4.0 and more.

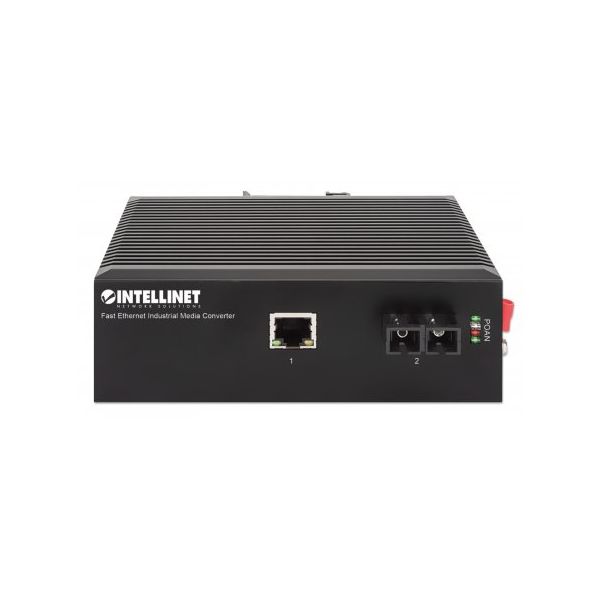

  • One 10/100 RJ45 port supporting a maximum distance of 100 m (300 ft.)
  • One 100Base-FX fiber SC single-mode port supporting a maximum distance of 20 km (12.4 mi.)
  • IP40 slim-type metal housing to withstand harsh industrial conditions

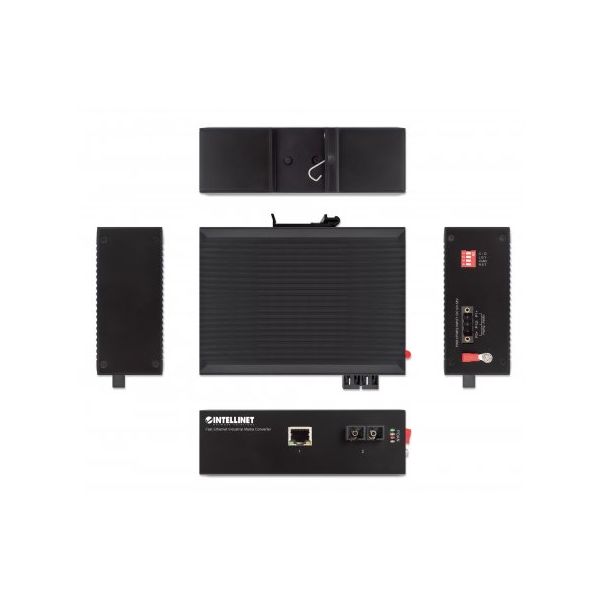

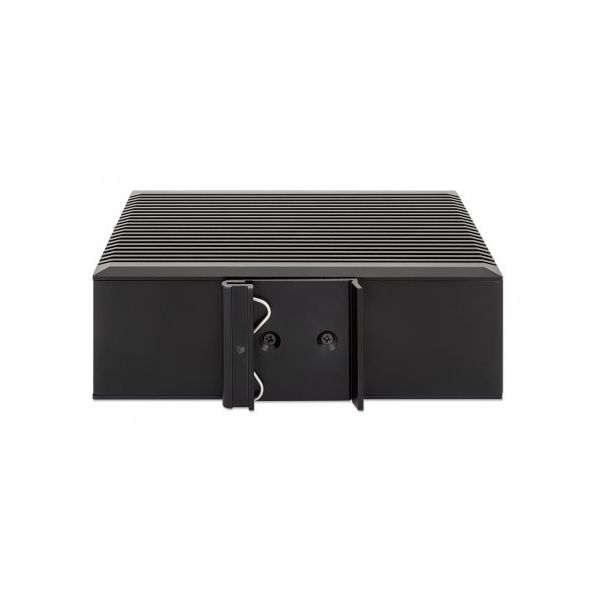

  • Option for DIN-rail installation

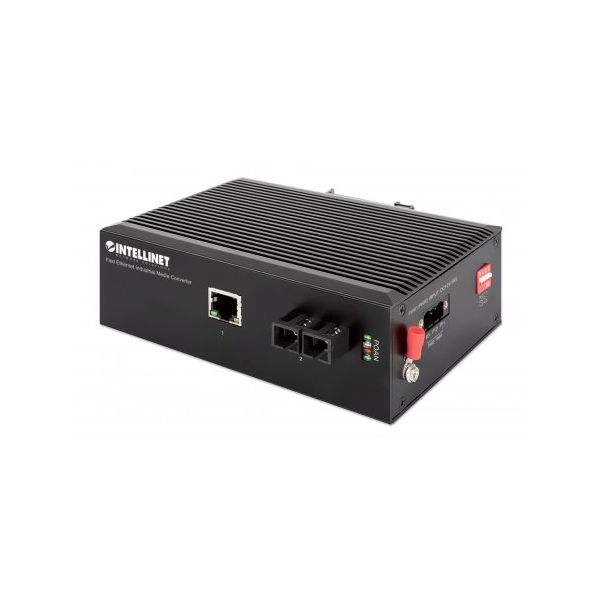

  • Two redundant DC inputs (12 - 58 V) with I/O terminal block
  • Requires industrial power supply (not included)
  • Port surge protection up to 6 kV
  • Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
  • Wavelength: 1310 nm
  • Supports full-duplex and half-duplex modes with autonegotiation
  • Wide operating temperature: -40 - 75℃ (-40 - 167°F)
  • Supports 8k MAC address entries with Auto-learning and Auto-aging
  • Buffer memory of 1 MByte
  • Supports jumbo frames up to 10 kBytes
  • Fanless design for silent operation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Netwerkstandaard
IEEE 802.3, IEEE 802.3u
Ethernet interface type
Fast Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100 Mbit/s
Jumbo Frames ondersteuning
Ja
Ondersteundende kabel types
Cat5e
Ondersteunde netwerkprotocollen
UTP/STP

Poorten & interfaces

Klemmenblokpoort
Ja

Prestatie

Maximaal bereik*
20000 m
Golflengte*
1310 nm
Draad modus structuur
Single-mode
Vezelkabel diameters ondersteund
8/125,8.3/125,8.7/125,10/125 µm
Tx vermogen (min)
-9 dBmW
Tx vermogen (max)
-3 dBmW

Design

Intern*
Nee
LED-indicatoren
Ja
Kleur van het product
Zwart

Design

Materiaal behuizing
Metaal
Certificering
FCC Class B, CE, RoHS

Energie

Ingangsspanning
12 - 58 V

Gewicht en omvang

Breedte
104 mm
Diepte
143 mm
Hoogte
48 mm
Gewicht
600 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent

Inhoud van de verpakking

Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
