Intellinet 510493 netwerk media converter 1000 Mbit/s Zwart

Intellinet 510493, 1000 Mbit/s, 10Base-T, 100Base-TX, 1000Base-TX, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, 1000 Mbit/s

Niet op voorraad

Fabrikant Intellinet
MPN 510493
EAN 0766623510493
€ 50,00 excl. BTW

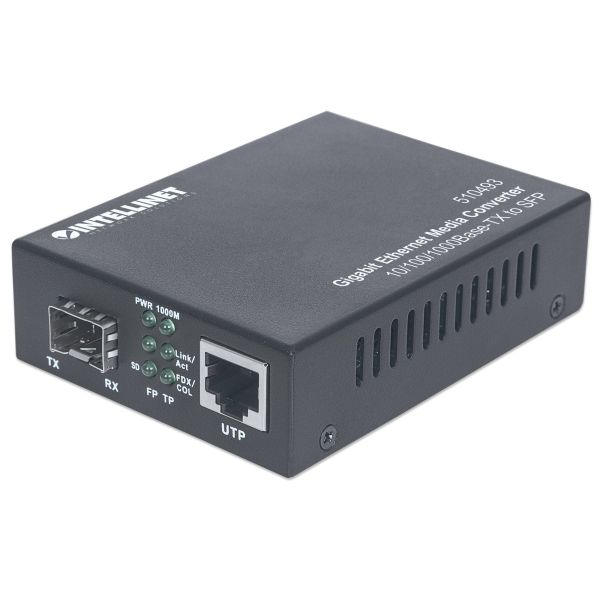

Intellinet 510493 netwerk media converter 1000 Mbit/s Zwart

The Intellinet Network Solutions Gigabit Ethernet to SFP Media Converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.

Expands the Size of an Existing Network
Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.

Enhances the Distance between Networking Devices
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device.

Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.
  • Data transfer rate: 1000 Mbps
  • 10/100/1000Base-TX auto-sensing RJ45 port, maximum distance 100 m / 300 ft. (Cat5e and better)
  • RJ45 port with Auto MDI/MDI-X support
  • SFP (Small Form Factor Pluggable) optical transceiver module port (SFP module not included)
  • Module port for Gigabit multimode or single-mode Mini GBIC 1.25G SFP-type fibre modules
  • Status LEDs for power and Link/TX for both ports
  • External power adapter, 5 VDC
  • Functions as a stand-alone converter or can be used with the 14-slot media converter chassis, model 507356
  • Three-Year Warranty

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Converter input interface
10Base-T, 100Base-TX, 1000Base-TX
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Overdrachtssnelheid
1000 Mbit/s
Auto MDI/MDI-X
Ja
Duplex systeem
Volledig
Ondersteundende kabel types
Cat5e, Fiber

Poorten & interfaces

Connectiviteitstechnologie
Bedraad
Aantal Ethernet LAN (RJ-45)-poorten
1
Fibre channel-poorten
1
Vezel-optische connector*
SFP

Prestatie

Maximaal bereik*
100 m

Design

Intern*
Nee
LED-indicatoren
Link, Stroom
Kleur van het product
Zwart
Materiaal behuizing
Metaal

Design

Certificering
FCC Class A, CE

Energie

Ingangsspanning
12 V
Stroom
1.2 A
Vermogensverbruik (max)
5 W
Externe adapter
Ja

Gewicht en omvang

Breedte
70 mm
Diepte
96 mm
Hoogte
26 mm
Gewicht
170 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 80 procent

Inhoud van de verpakking

Gebruiksaanwijzing
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
