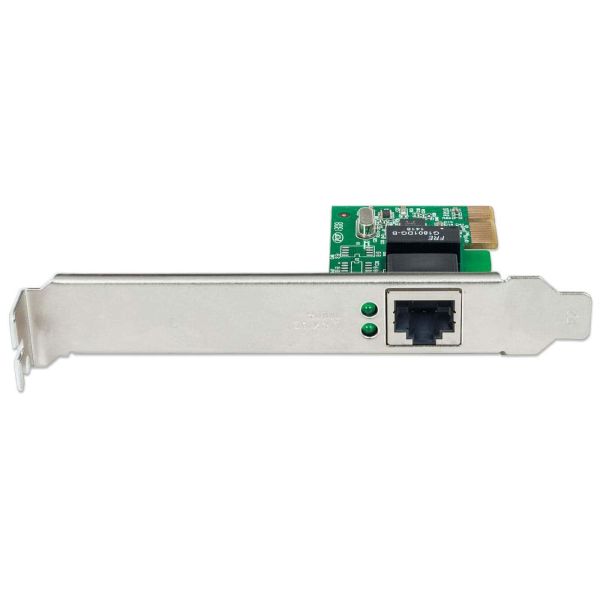

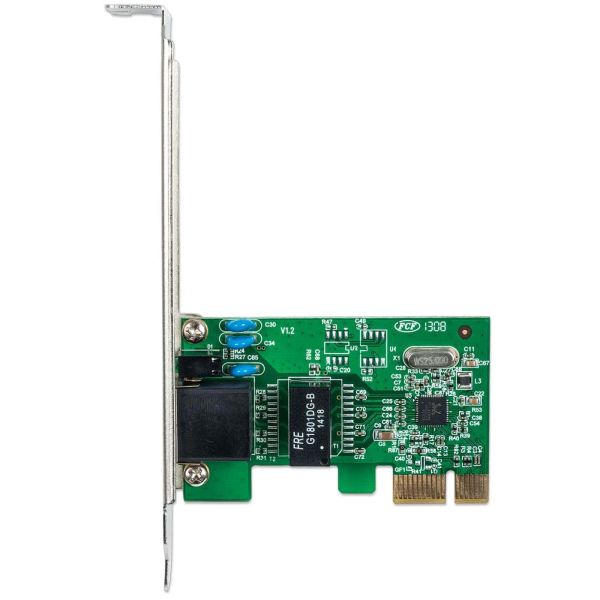

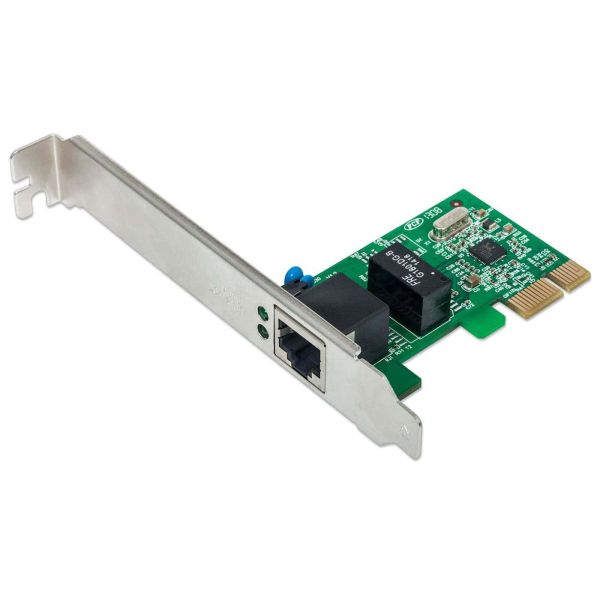

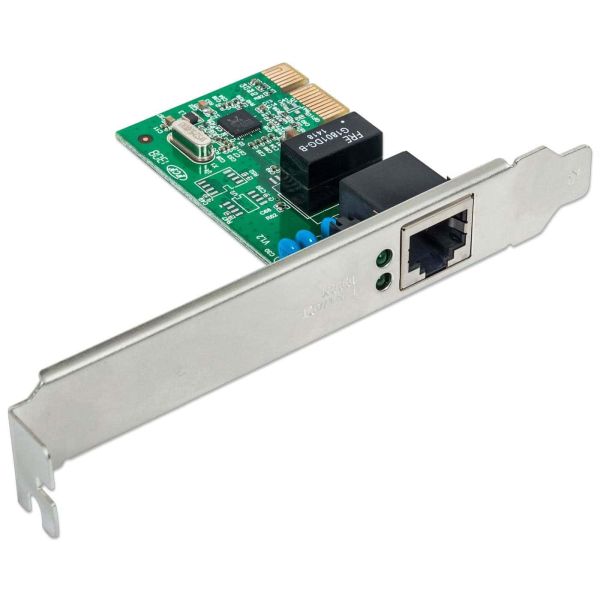

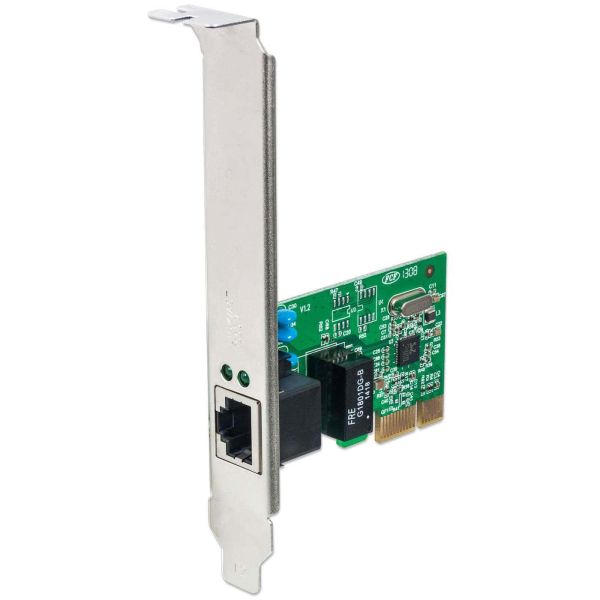

Intellinet 522533 netwerkkaart Intern Ethernet 1000 Mbit/s
Ruim op voorraad
Intellinet 522533 netwerkkaart Intern Ethernet 1000 Mbit/s
Faster Throughput
The PCI Express host interface supports throughput rates of up to 2 Gbps when running in full duplex mode, ideal for resource-intensive CAD/CAM, client-server database, multimedia, pre-press, advertising graphics, server and mission-critical applications.
Auto-Negotiation
The Gigabit PCI Express Network Card will automatically detect the network speed that the LAN switch port is set to and run at the same speed. The card supports 10Base-T Ethernet, 100Base-TX Fast Ethernet and 1000Base-T Gigabit Ethernet.
Full Duplex
When running in full duplex mode, the Gigabit PCI Express Network Card provides the following throughput rates: 20 Mbps (10Base-T Ethernet), 200 Mbps (100Base-TX Fast Ethernet) and 2 Gbps (1000Base-T Gigabit Ethernet).
Built-In Diagnostics
The Gigabit PCI Express Network Card comes standard with crossover detection and auto correction capabilities that make installation and maintenance a snap.
Remote Power On
The Wake-On-LAN feature allows you to power on your desktop PC from anywhere on the network.
- Supports Gigabit speeds over existing network cable
- Does not require fibre optic cabling to run Gigabit speeds
- PCI Express 1.0a bus interface fits 1, 4, 8 and 16X PCI-E slots
- Single PCI Express lane (x1) 2.5 Gbps interface
- Full duplex flow control (IEEE 802.3x)
- Supports jumbo frames up to 9 kB
- Full duplex speeds (20 Mbps, 200 Mbps, 2000 Mbps)
- Includes low profile 8 cm bracket
- Wake-On-LAN (WOL) support
- Supports the most popular operating systems: Windows XP, Vista and Windows 7/8
- Three-Year Warranty
