Intellinet 523882 netwerk transceiver module 1250 Mbit/s SFP

Intellinet 523882, 1250 Mbit/s, SFP, 100 m, Gigabit Ethernet, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Volledig

Nog 12 beschikbaar

Fabrikant Intellinet
MPN 523882
EAN 0766623523882
€ 38,00 excl. BTW

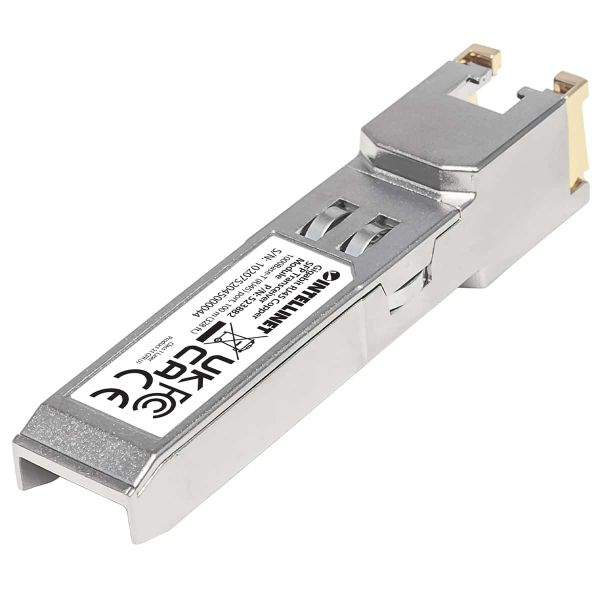

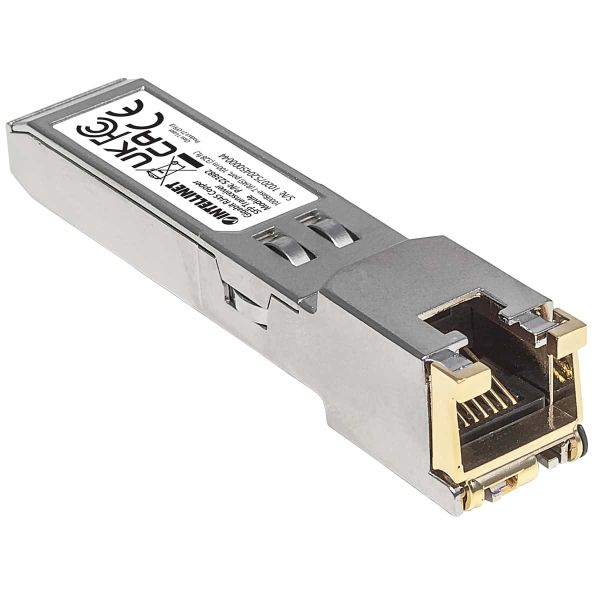

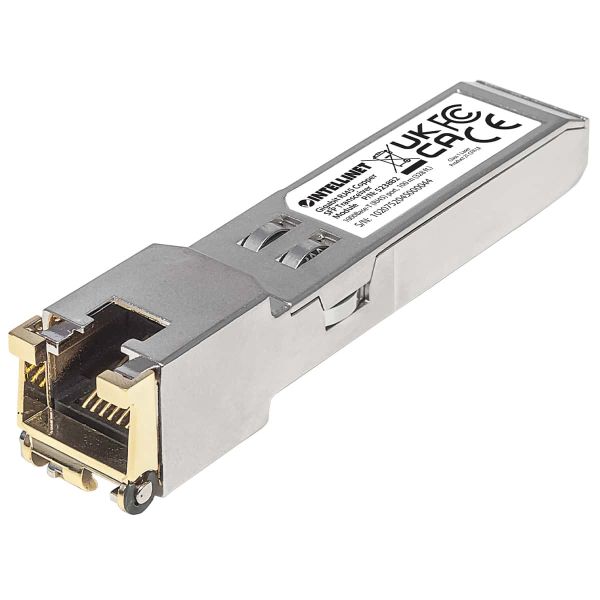

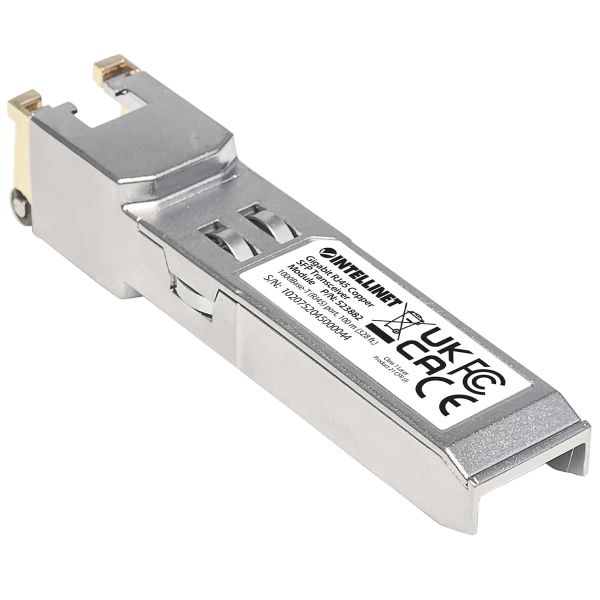

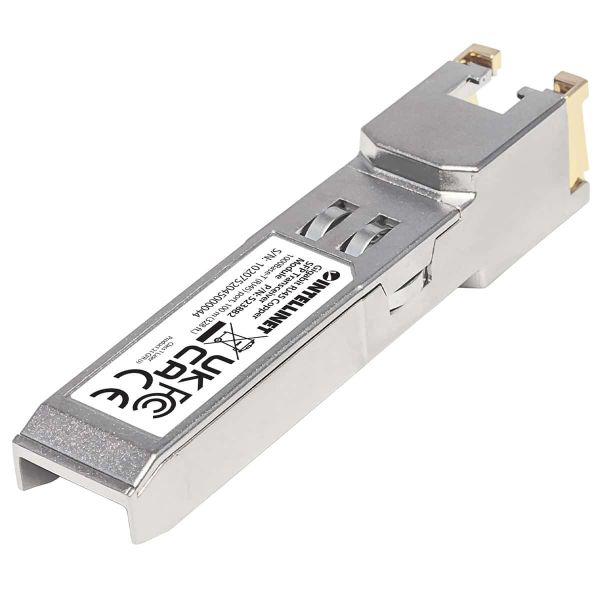

Intellinet 523882 netwerk transceiver module 1250 Mbit/s SFP

Turn a SFP transceiver module slot into a 10/100/1000 Mbps RJ45 copper Ethernet port! _x000D_
_x000D_
The Intellinet Network Solutions Gigabit RJ45 Copper SFP Optical Transceiver Module is built to comply with the MSA (Multi-Source Agreement) standards and offers a cost-effective way to add a Gigabit copper Ethernet port to your SFP enabled network switch. _x000D_
_x000D_
Compatibility _x000D_
Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 523882) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-T, compatibility to your Cisco gear is provided. _x000D_
_x000D_
Hot-Pluggable _x000D_
The Intellinet Network Solutions Gigabit RJ45 Copper SFP Optical Transceiver Module (model 523882) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic.
  • Fits any Intellinet Gigabit Ethernet switch with SFP module slots, or any MSA or Cisco compliant SFP port
  • 10/100/1000 Mbps auto-sensing Gigabit Ethernet RJ45 port with Auto MDI/MDI-X support
  • Adds a Gigabit Ethernet copper connection to a network switch or media converter that supports SFP transceivers
  • Distance support: up to 100 m (328 ft.)
  • Compliant with the SFP Multi-Source Agreement (MSA)
  • Compatible with the Cisco GLC-T transceiver
  • SFP standard form factor
  • Low power dissipation (1.05 watts typical)
  • Low EMI due to fully metallic housing
  • Up to 1.25 Gbps bi-directional communication
  • Supports hot-plugging
  • Three-Year Warranty

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Maximale overdrachtssnelheid van gegevens*
1250 Mbit/s
Soort aansluiting*
SFP
Maximaal bereik
100 m
Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Duplex systeem
Volledig

Kenmerken

Kleur van het product
Metallic
Hot-plug ondersteuning
Ja
Certificering
FCC Class B, CE Mark

Energie

Ingangsspanning
3.3 V
Stroomverbruik (typisch)
1,2 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent

Gewicht en omvang

Breedte
14 mm
Diepte
67 mm
Hoogte
12 mm
Gewicht
21 g

Verpakking

Aantal producten inbegrepen
1 stuk(s)

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85369010
